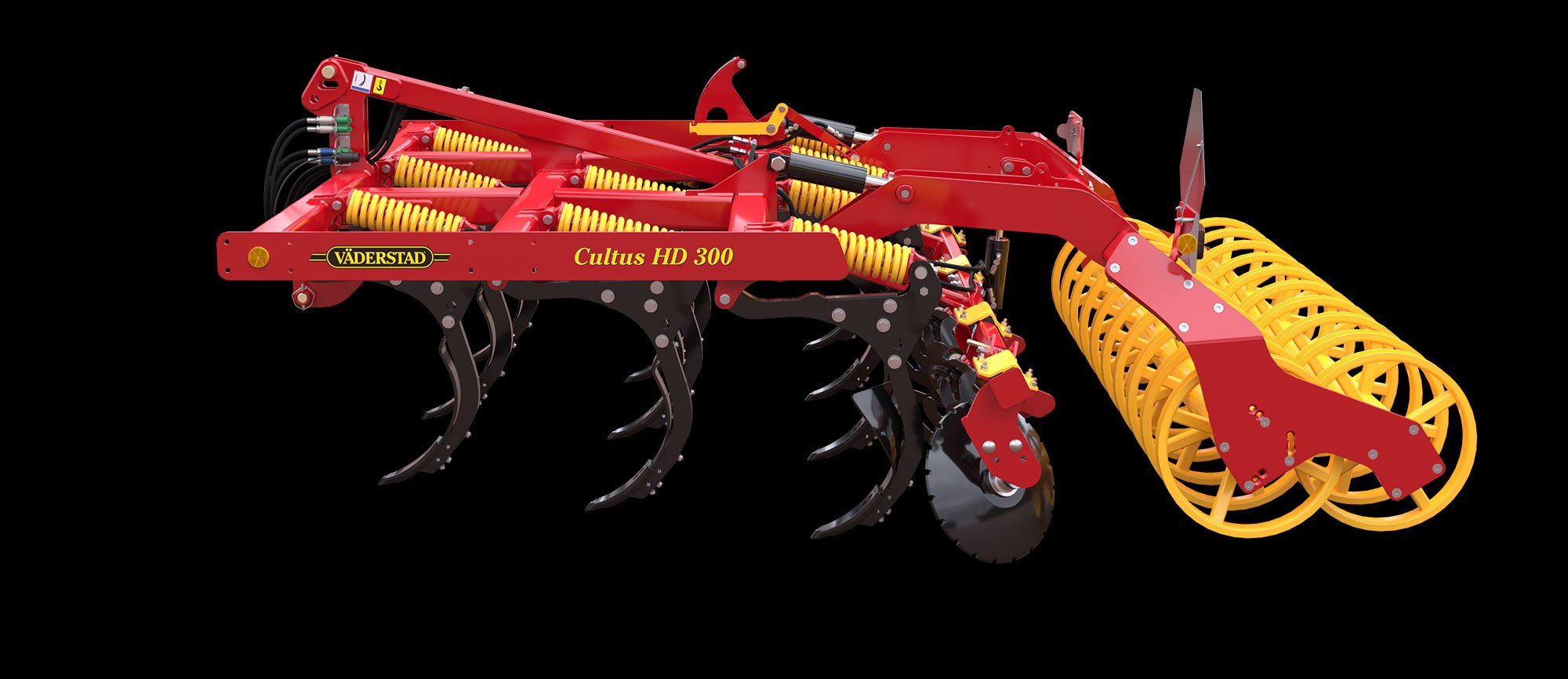

The 3-4m tine cultivator Cultus 300-400 has powerful tines working down to 25cm depth. You benefit from a spacious frame construction offering impressive mixing capabilities. Cultus is the ideal cultivator for those looking for high quality working results, performance and durability.
The Cultus tine is designed for high performance during a long working life. With a very effective stone release at 450kg and horizontally mounted double springs, Cultus is able to keep the same working depth at all times.
The massive self-adjusting centrepiece of the spring and conical bushings in the fastening bolts gives the tine outstanding durability. The double spring prevents shock forces from entering the frame, as a result multiplying the working life.
Cultus has three strong axles and 30cm tine spacing. Together with the ground clearance, this gives maximum throughflow and capacity.
The tine distribution further provides very good mixing of harvest residues, preventing the creation of straw rows.
Cultus is able to cultivate the soil down to 25cm depth, but the machine also works very well in shallow cultivation.
To gain full control, the working depth is controlled hydraulically from the cab on all mounted versions. This makes Cultus a versatile precision cultivator on varying soil types.
To meet differing farming needs, Väderstad offers a wide range of points for cultivators and tine harrows. With the right choice of points you are able to optimise the working result on your fields, providing the best start possible for the next crop.
All Väderstad tine cultivators are equipped with the unique MixIn shin as standard.
The MixIn shin throws the material forwards instead of upwards, which otherwise is the usual direction. When it has landed, the material passes by the tines once again, and the mixing and crumbling effect is doubled.
The forward movement further enhances the straw distribution, leading to a more even crop emergence. The unique MixIn shin provide superior mixing and crumbling, without increasing fuel costs.
The levellers are fastened to the packer frame, thereby decreasing the need for adjustments when changing working depth.
The disc levellers are very forgiving to the amount of material passing through, which increases the interval before adjustment is required. They are fastened with rubber suspension and have maintenance-free bearings. Tine levellers are available as an option for lighter soils.
Cultus can be delivered in two basic versions, customised for a range of field conditions.
Depending on the need for reconsolidation and weight distribution, Cultus can be delivered as a mounted machine as well as a trailed machine equipped with a rubber packer, the RubberRunner.
Cultus can be delivered with the mountable small seeder BioDrill, enabling it to drill in the same pass as cultivating. This saves time and helps maintain ground moisture. Cultus produces a compaction free root zone providing perfect conditions for the plant.
The excellent crumbling and residue mixing provides the perfect enviroment for the new plants.
Cultus 300-400 has three axles 80cm apart from each other with tines spaced at 90cm. This gives an effective tine spacing of 30cm, allowing high throughflow of large quantities of crop residue. Cultus has a mechanical stone release at 450kg and the ability to work down to a depth of 25cm. The working depth is set hydraulically from the tractor cab.
Rubber-suspended levellers with maintenance-free bearings leave a very smooth surface.
Depending on the farms requirements, Cultus 300-400 can be equipped with packers CageRunner, single SteelRunner, single SoilRunner or RubberRunner. The trailed models are transported on the packer, which is why RubberRunner is supplied as standard.
|Effective working width (m)||3,0||3,5||4,0||3,0||3,5||4,0|
|Transport width (m)||3,0||3,5||4,0||3,0||3,5||4,0|
|Transport height (m)||1,8||1,8||1,8||1,8||1,8||1,8|
|Weight min/max (kg)||1800/2800||1900/3000||2200/3300||1800/2800||1900/3000||2200/3300|
|Weight with RubberRunner (kg)||2100||2300||N/A||2400||2600||2800|
|Weight with CageRunner (kg)||1800||1900||N/A||N/A||N/A||N/A|
|Weight with SteelRunner (kg)||2100||2300||N/A||N/A||N/A||N/A|
|Weight with SoilRunner (kg)||1800||1900||2200||N/A||N/A||N/A|
|Number of tines||10||12||13||10||12||13|
|Tine spacing (cm)||30||30||30||30||30||30|
|Recommended working speed (km/h)||8-12||8-12||8-12||8-12||8-12||8-12|
|Wheel dimension (support wheels)||N/A||N/A||N/A||7.00-15||7.00-15||7.00-15|
|Wheel dimension (transport wheels)||N/A||N/A||N/A||N/A||N/A||N/A|
|Hydraulic requirements (DA)||1||1||1||1||1||1|
|Draught requirements from (hp)||120||140||160||120||140||160|
|Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering.|
|LS = Load sensing||FR = Free return||DA = Double acting|
|H = Hydraulic||P = Pneumatic|
