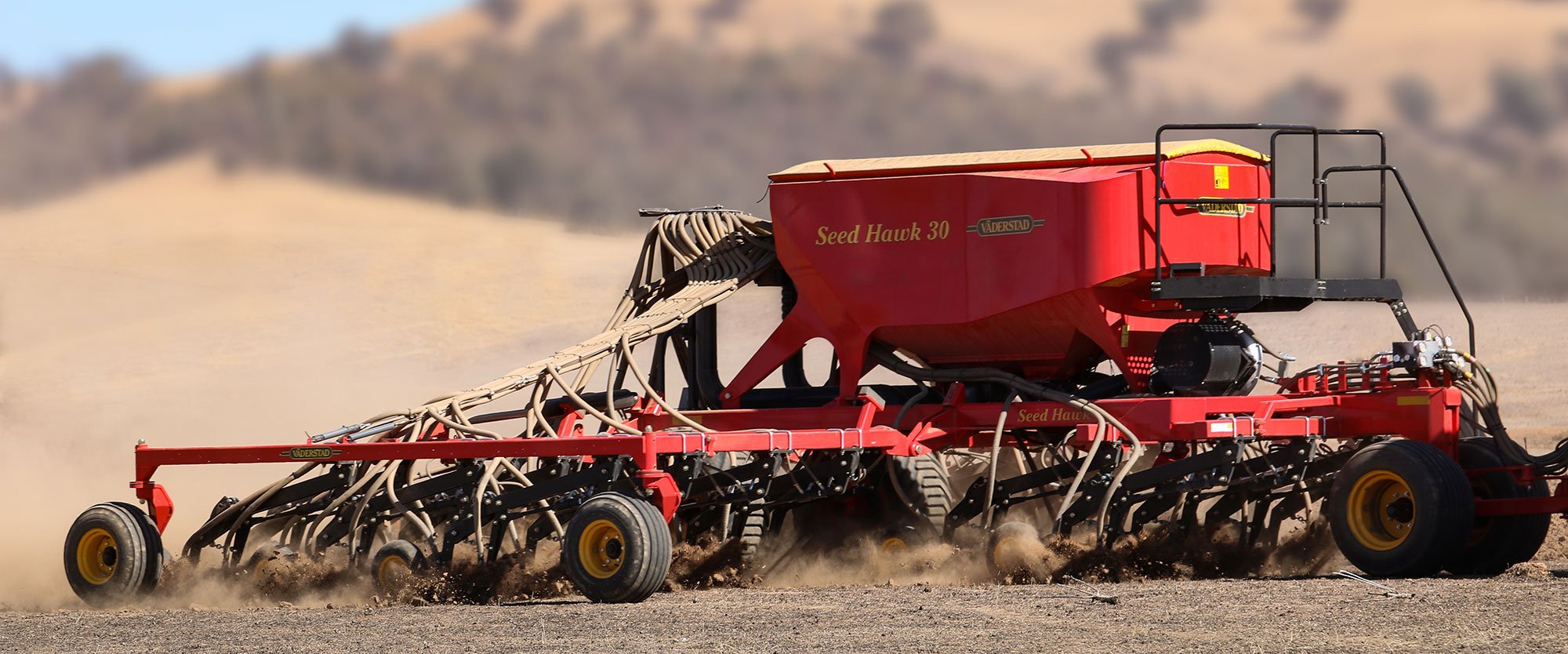

Seed Hawk 30 Air Drill in field

Seed Hawk 30 Air Drill

Precision seed placement with just the right fit

The Seed Hawk 30 Air Drill is a perfect fit for smaller farms and mixed farming operations where larger seed drills are impractical. Regardless of the diversity of your crops, the 30 Air Drill with its precision Seed Hawk openers provides the same legendary seed and fertiliser placement as large-scale Seed Hawk seeding systems. It is a compact combination of air cart and toolbar with low horse power requirements.

Click to active 360 product spinner
Part of the Seed Hawk concept

In some farming operations, growers look for compact size without compromising crop performance.  The Seed Hawk 30 air drill features the same precision opener function in a smaller design.  With an on-board tank featuring the Fenix II metering system, the 30 air drill is able to navigate narrow roadways with ease.

Learn more about the Seed Hawk concept

30 Air drill in field

Designed for multiple crops

The Seed Hawk 30 Air Drill is offered in two sizes. With a frame width of either 6 m (19’8”) or 8 m (26’3”), both machine sizes have a mounted tank with a total volume of 3 876 litres (110 bu.).

The 6 m frame is designed to enable a setup of 24 rows at 250 mm (10”) row spacing, or 20 rows at 300 mm (12”) row spacing.

The bigger, 8 m frame is designed for 32 rows at 250 mm (10”) row spacing, or 26 rows at 300 mm (12”) row spacing.

Read more
30 Air Drill in field

Precision seed and fertiliser placement

The industry-leading Seed Hawk Opener assemblies operate independently for superior shallow seeding, depth accuracy and optimal fertiliser placement.

The result is quick, uniform germination, even packing and consistent performance in all soil conditions.

Read more
Seed Hawk 30 Air Drill in transport mode

Narrow transport

The Seed Hawk 30 Air Drill folds up in a convenient, compact package.

Regardless of the configuration, the machine has a transport width of 3 m (9’10”). The transport height ranges from 3,35 to 4,06 m (11’-13’4”), depending on the frame width.

Read more
Väderstad Fenix II

Fenix II metering

Simple, precise metering combined with remote calibration and rollers that can be changed easily to accommodate different seed sizes.

The Fenix II metering system uses a fluted roller inside an adjustable barrel for reliable distribution of seed and fertiliser. The durable, anti-static polymer and stainless-steel construction prevents corrosion.

Read more

Technical data

Seed Hawk 30 Air Drill  6 m 8 m
Row spacing (mm) 254/305 mm (10"/12") 254/305 mm (10"/12")
Number of rows at 254 mm (10”) spacing 24 32
Number of rows at 305 mm (12”) spacing 20 26
Working width (m) 6,1 m (20') 7,93/8,13 m (26’/26’8”)
Transport width (m) 3 m (9’10”) 3 m (9’10”)
Transport length (m) 9,86 m (32’4”) 9,86 m (32’4”)
Transport height (m) 3,35 m (11’) 4,06 m (13’4”)
Ground clearance (mm) 305 mm (12”) 305 mm (12”)
Volume bin 1 (l) 1900 l (55 bu) 1900 l (55 bu)
Volume bin 2 (l) 1900 l (55 bu) 1900 l (55 bu)
Weight (kg) 4500 kg (9920 lbs) 5600 kg (12345 lbs)
Recommended working speed (km/h) 7-8 km/h (4,5-5 mph) 7-8 km/h (4,5-5 mph)
Maximum hydraulic requirements (gal/min) 198,7 l/min (52,5 gal/min) 198,7 l/min (52,5 gal/min)

Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering.
