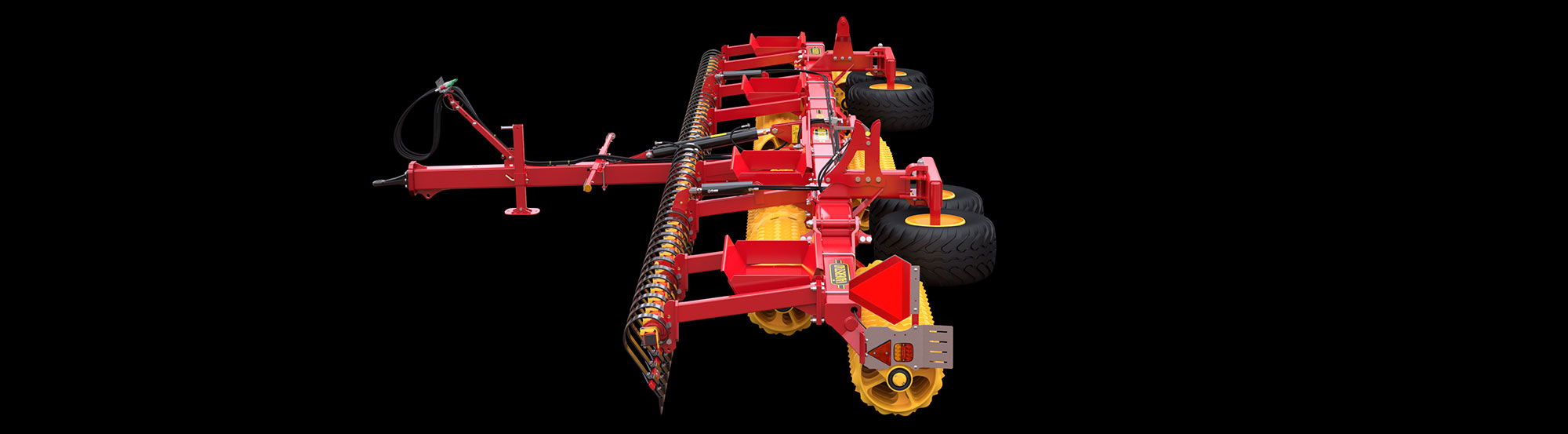

Rexius 650-1230 is a heavy-duty roller, available in six different models from 6.5 to 12.3 metre working width. Rexius has a heavy-duty construction, resulting in a long working life and minimal downtime on the field. With a weight up to 650kg per working metre, you benefit from an improved consolidation.
The rubber suspension of the roller bearings absorbs impacts. This eliminates heavy shocks and significantly increases the working life of bearings, rings and the machines frame.
The bearings are double-sealed to prevent dust from entering.
To ensure an even load on the outer section of the wider Rexius models, a heavy-duty spring transfers weight from the neighbouring sections. This further guarantees stones are effectively pressed down, without compromising the levelling result.
Since there is an even load distribution over the other sections, this eliminates the need for hydraulic weight transfer.
Rexius has a powerful frame, maintenance-free joints, hardened bushes and high quality roller rings, ensuring a long working life. The rollers are equipped with axles made of micro-alloyed special steel of the highest quality. To minimise ring wear in the field, Rexius is fitted with unique spring plates between the roller sections.
The ideal ring for traditional rolling in leys or growing crops, after drilling or in spring. The large serrated ring is designed to give a driving action, while the narrow ring gives the roller a soil cultivating ability, while also acting as a cleaner.
Where an extra reconsolidating effect is required to restore capillarity, the large diameter and heavy weight of the Cambridge HeavyDuty ring offers benefits.
The larger diameter decreases bulldozing, a benefit in lighter soils.
Cambridge HeavyDuty has a 5-year ring warranty, increasing ownership cost-control.
Crosskill is soil cultivating ring with aggressive profile that leaves a loose, crusting resistant surface while reconsolidating the soil at depth.
The different ring diameters not only give a self-cleaning effect but also offset behaviour, processing more soil in light conditions and consequently lowering the draught requirement.
With CrossBoard Heavy, clods are crushed and the soil is levelled. A double acting stabilising bar increases levelling capacity.
The CrossBoard is equipped with master and slave cylinders, which ensures a level work result by maintaining the position of each CrossBoard section.

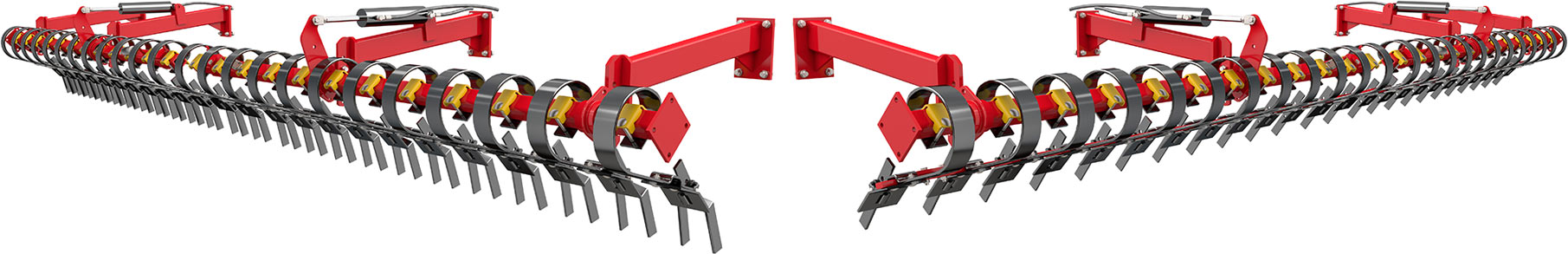

With the SingleKnife or DoubleKnife fitted on the CrossBoard Heavy, the cultivation effect is upgraded further. The SingleKnife cuts clods in the top soil in order to reduce clod sizes. Where there is a hard crust, the DoubleKnife breaks the surface to allow the crop to emerge. Since the action is directed forwards, you benefit from an intense cultivation without ripping up the soil. Both SingleKnife and DoubleKnife are easy to fit without the need for tools, using the Väderstad QuickChange system.
Rolling is often a perfect opportunity to clear the field of stones that have come up to the surface during tillage or frost periods.
With the standard fitted stone trays, large amounts of stones can be picked up quickly and easily. After rolling, the field is left ready for drilling or harvesting with no risk of stone damage to machinery.
Rexius offer great mobility, both on the field and in transport.
The folding technique of the roller lowers the centre of gravity, thereby making transport safer. Despite Rexius wide working width, the transport width is 2.5 metres.
A BioDrill mounted on the bigger models, Rexius 1020 and Rexius 1230, opens up an additional possibility.
By mounting the BioDrill spreader plate behind the packer, it is possible to spread granules or slug pellets together with the roller operation.
Thanks to the heavy consolidation of the roller, combined with BioDrill´s precise and even distribution over the entire working width.
With the mountable small-seeder BioDrill it is possible to seed ley, catch crops and other small-seeded crops together with the rolling operation. This saves passes, time and money. The seed is evenly spread in front of the roller. The roller then buries the seeds in the upper topsoil, where the conditions for germination are good.
This content is hosted by a third party (www.youtube.com). Your current cookie settings have disabled the video. You can customize them in order to show the video. Click here to change your consent.
Rexius offers the possiblity to add a levelling effect and crushing of clods infront of the roller rings.
To fit different farming needs, Rexius can be equipped with different roller rings. The rings are rubber suspended to absorb impacts, thus maximising working life.
|Effective working width (m)||6,5||8,2||9,4||10,2||12,3|
|Transport width (m)||2,5||2,5||2,5||2,5||2,5|
|Transport height (m)||2,5||2,5||2,5||2,5||2,5|
|Number of sections||3||5||5||5||5|
|Weight with SteelRunner (kg)||4100||N/A||N/A||N/A||N/A|
|Weight with Cambridge (kg)||3300||4100||4400||4700||5800|
|Weight with Crosskill (kg)||3300||4100||4400||4700||N/A|
|Weight with Cambridge HeavyDuty (kg)||4300||5600||6200||6500||7400|
|Recommended working speed (km/h)||12||12||12||12||12|
|Wheel dimension (support wheel)||N/A||N/A||N/A||N/A||N/A|
|Wheel dimension (transport wheel)||400/60x15,5||400/60x15,5||400/60x15,5||400/60x15,5||400/60x15,5|
|Hydraulic requirement (DA)*||1-2||1-2||1-2||1-2||1-2|
|Draught requirement from (hp)||70||90||100||110||120|
|Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering.|
|LS = Load sensing||FR = Free return||DA = Double acting|
|H = Hydraulic||P = Pneumatic|
*If equipped with CrossBoard 2 DA is needed.
