Väderstad harrow NZ Mounted 500-600

NZ Mounted 500-600

Seedbed preparation with high precision

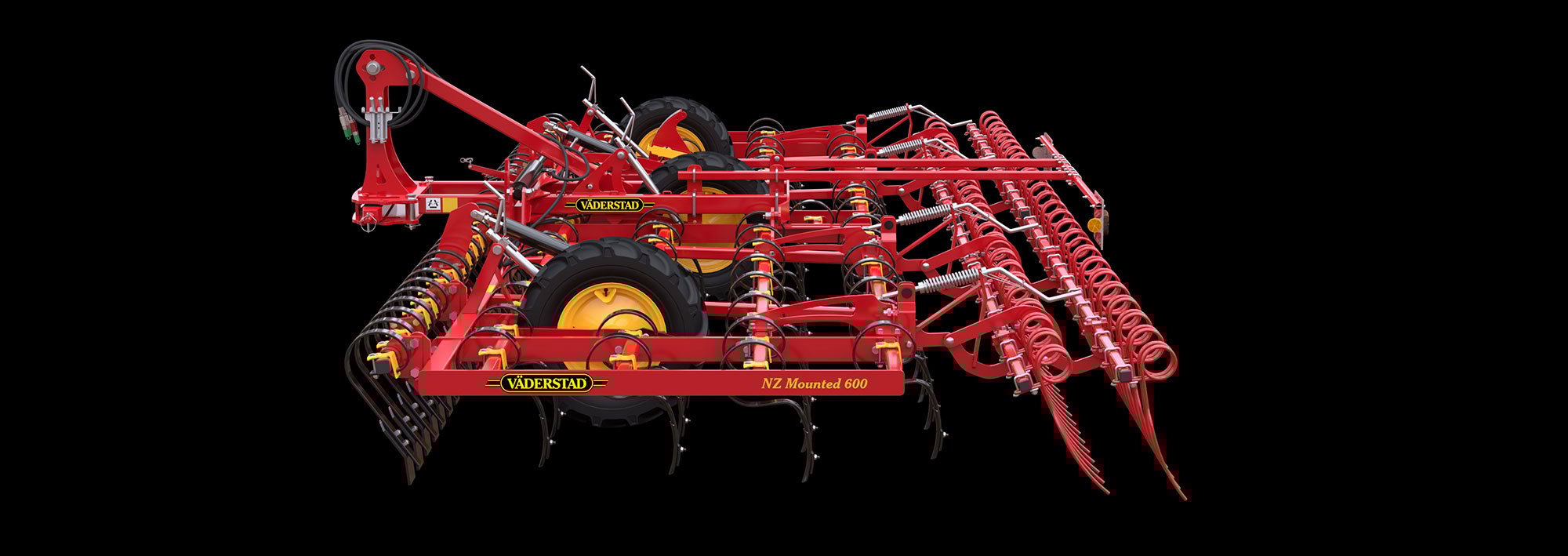

NZ Mounted is a mounted tine harrow with 5 metre working width. Thanks to its ingenious drawbar, NZ Mounted is able to move independently from the tractor, thereby offering an exceptional contour following comparable to a trailed machine. With AgrillaNova tines fitted on four axles and a tine spacing of 9cm, you benefit from an intensive seedbed preparation.

Selected features

Väderstad Harrow NZ Mini 500

Seedbed preparation with high precision

NZ Mounted is a mounted tine harrow available in 5 or 6 metre working width. It has a unique versatile drawbar solution, and a great depth keeping ability. The AgrillaNova tines fitted on four axles with a tine spacing of 9cm, delivers intensive seedbed preparation.

Read more
NZ Mini working the headlands

Unique versatile drawbar

NZ Mounted is equipped versatile drawbar enabling the choice between a locked or a floating drawbar setting. In the floating position, NZ Mounted is able to move independently from the tractor, offering an exceptional contour following in three dimensions.

If needed, the drawbar linkage can easily by locked, without the need for tools.

Read more
NZ Mini field

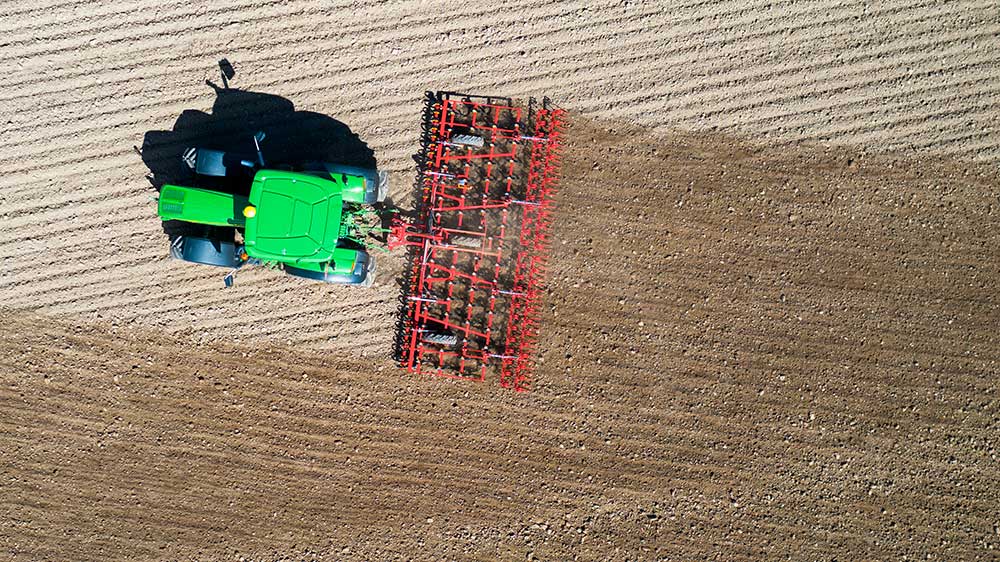

NZ Mini precise depth control

Precise depth control

OffSet mounted support wheels provides NZ Mounted with stability lengthwise and ensures that the tines in the first row work at the same depth as the last row.

The tractor threaded tyres eliminates bulldozing, while the large wheel diameter keeps the working depth and gives a smooth ride.

Read more
NZ Mini CrossBoard levels the field

CrossBoard levels the field

CrossBoard provides an intensive cultivation, ensuring that clods are crushed and the soil is levelled.

The working intensity is controlled hydraulically from the cab.

Read more
NZ Mini low coupling weight

Low coupling weight

NZ Mounted is mounted on the tractors three-point linkage, making it easy to manoeuvre in the field.

When folded, the transport width is only 2.05m. The low weight of the machine reduces the lifting requirements.

Read more
NZ Mini versatile following harrow

Versatile following harrow

To finish the seedbed preparation, the following harrow creates an evaporation barrier by sorting larger aggregates and weeds to the surface.

The following harrow is mounted with rubber suspension to maintain a long working life. Both the angle and aggressiveness can be adjusted.

Read more
Man changing point

Point configurator

To meet differing farming needs, Väderstad offers a wide range of points for cultivators and tine harrows. With the right choice of points you are able to optimise the working result on your fields, providing the best start possible for the next crop.

Read more

Product concept

Zone 1 - Levelling

The hydraulic CrossBoard Light levels the field and provides an intensive cultivation, ensuring that clods are crushed and the soil is levelled, prior to the harrow tines.

Zone 2 - Seedbed preparation

The AgrillaNova tines are fitted on four axles with 9cm tine spacing. The tines distribute the soil so that larger clods are placed on the top and smaller particles deeper, which is favorable for early drilling.

Point options

Zone 3 - Finish

The last working zone provides the possibility to add features for improved finishing.

Single following harrow

Double following harrow

Technical data

Tech data NZ Mounted

NZ Mounted 500 600
Effective working width (m) 5,0 6,0
Transport width (m) 2,05 2,05
Transport height (m) 2,5 3,0
Weight (kg) 1400 1600
Number of tines 54 64
Tine spacing (cm) 9 9
Wheel dimension (support wheels)  190/95-15 190/95-15
Hydraulic requirements 1 SA + 1 DA  1 SA + 1 DA
Draught requirements from (hp) 80-120 100-140
Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering.

LS = Load sensing    FR = Free return    DA = Double acting
H = Hydraulic    P = Pneumatic
