Tempo K 24
24
30"
>350hp
150 bu
Superior field productivity
The Tempo K is a high-capacity, high-speed planter for large scale farming operations. It is available with 24 row units, at 30 inch spacing. Tempo K stands out stand in the market thanks to its ability to deliver outstanding planting precision at 10-12 mph.
The Tempo planter – highest precision in all dimensions
-
Precision in 3-D
Tempo deliver an unmatched planting precision in three dimensions – Length, depth, and width.
1. In-row precision – Exact distance between each seed in the seed row
2. Depth precision – Exact depth of each seed
3. End-of-row precision – Individual row shut-off of the seed, fertiliser and micro granulateSwipe to read more ⮕
-
In-row precision
The Tempo seed meter, together with PowerShoot guarantees that each seed is placed one by one with extreme accuracy in the seed furrow.
By providing even plant spacings, without skips and doubles, Tempo delivers very high in-row precision. This means that all plants are granted the same growing conditions from the start.
-
Depth precision
The Tempo planter has a heavy-duty design, transferring high weight to the row units. Together with its components, this ensures a stable ride with maintained planting depth in all conditions.
The exact depth precision leads to an even germination, which in turn is crucial to grow strong and healthy crops with great yield potential. -
End-of-row precision
Each row unit on the Tempo planter is electrically driven, enabling GPS-controlled individual row shut-off.
By eliminating overlaps on headlands and irregular field areas, potential yield losses are avoided at the same time as the input costs can be reduced by 5-10%. Tempo enables section control for seed, fertiliser and micro granulates.
Full control of each row unit
Each row unit on Tempo is driven by its own electric motor. This gives you full control of output and performance, either for the whole machine or for individual rows.
By controlling each row unit separately, Tempo ensures consistent seed placement and creates the basis for advanced functions that adapt planting to field conditions, reduce overlap and optimise conditions for every seed.
Accept Cookies to Continue
You need to accept cookies in order to view this feature. Click here to change your consent.
High capacity central fill system
Tempo K 24 is equipped with a central fill system with a seed capacity of 150 bushels (5,300 litres). The pressurised system continuously supplies seed to the high‑precision Tempo seed meters at each row unit.
Once seed reaches the metering units, the patented PowerShoot technology takes over, ensuring precise and consistent seed placement even at high working speeds.
Row by row shut-off
To avoid overlap planting, saving seeds and inputs in irregular fields, each row unit can be shut-off one at a time. This can either be controlled manually or using GPS and ISOBUS Task Controller.
Easy-to-use tramlining
Tempo makes tramlining simpler and more reliable than ever before. The function is easy to setup with E-Control. When planting the field, Tempo automatically shuts off specific row units when needed to match the tyre tracks of the sprayer.
Individual calibration
Tempo is the obvious choice for seed growers. Since the row units are electric driven one by one, the same machine is able to plant multiple seed types with differing seed rates and varying row spacings. It is setup and monitored using E-Control.
Active hydraulic downforce enables furrow management
With the active hydraulic downforce system, Tempo instantly reacts to changes in soil conditions, always maintaining the set optimum row unit pressure.
Accept Cookies to Continue
You need to accept cookies in order to view this feature. Click here to change your consent.
Auto singulation monitors and optimises
With automatic motors on each row unit, seed singulation is continuously monitored and optimised. This saves time and increases the productive time in the field.
Curve compensation ensures a consistent rate
Active sensors communicate when the machine is turning and adjust the metering output of each row unit to always ensure a consistent rate over the full Tempo planter width.
Full control at your fingertips
The iPad-based control system, Väderstad E-Control wirelessly delivers data about each seed that travels through the machine, including seeding quality, skips, doubles, distance in the row, and rate.
You benefit from user-friendly remote set up and calibration, as well as easy, real-time monitoring and control.
With the iPad you can upload the most recent program software which allows you to benefit from future developments.
Farmers' experiences with Tempo K 24
Curious about what farmers think of Tempo K 24? Watch this short video testimonial and learn about the Tempo K straight from a farmer.
Accept Cookies to Continue
You need to accept cookies in order to view this feature. Click here to change your consent.
Versatile and easy to use
Tempo is designed to be easy to handle in daily work and flexible enough to be used across the farm. Practical design choices support quick changeovers, straightforward handling and efficient use throughout the season.

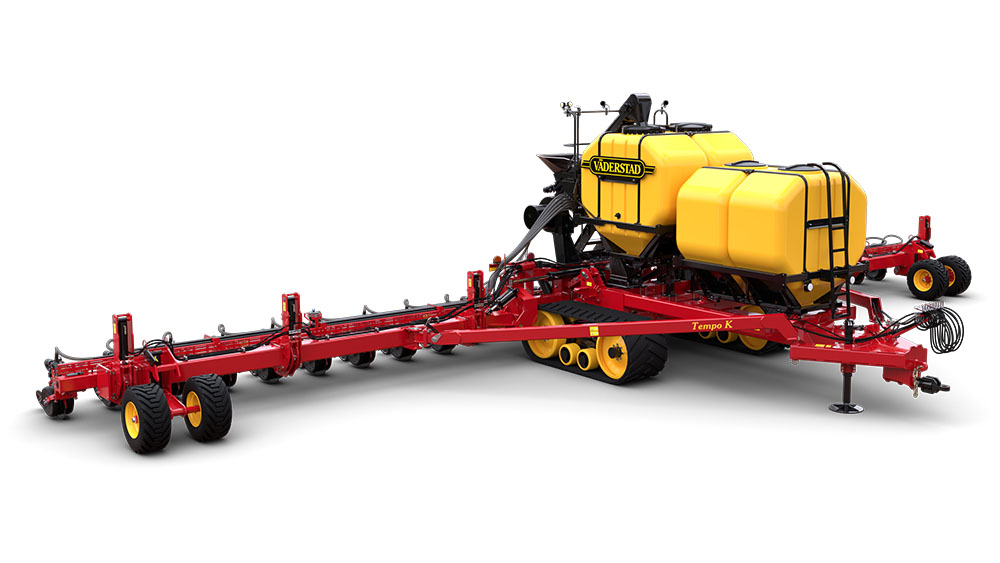

Liquid-ready
Tempo K is available with an optional liquid fertiliser system with a total capacity of 1,500 gallons (5,680 litres). The capacity is divided into two on‑board tanks of 750 gallons (2,840 litres) each.
The dual‑tank design enables the placement of two different fertilisers during planting.

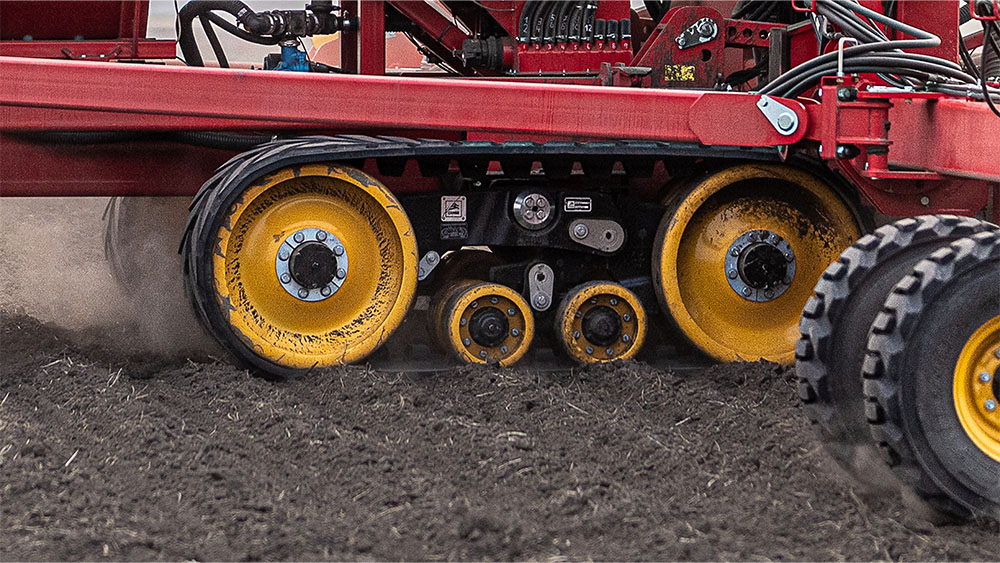

Low compaction tracks
The Tempo K track system provides a large footprint that uses flotation to reduce soil compaction.
Lower ground pressure supports yield potential and promotes an even crop population across the field.

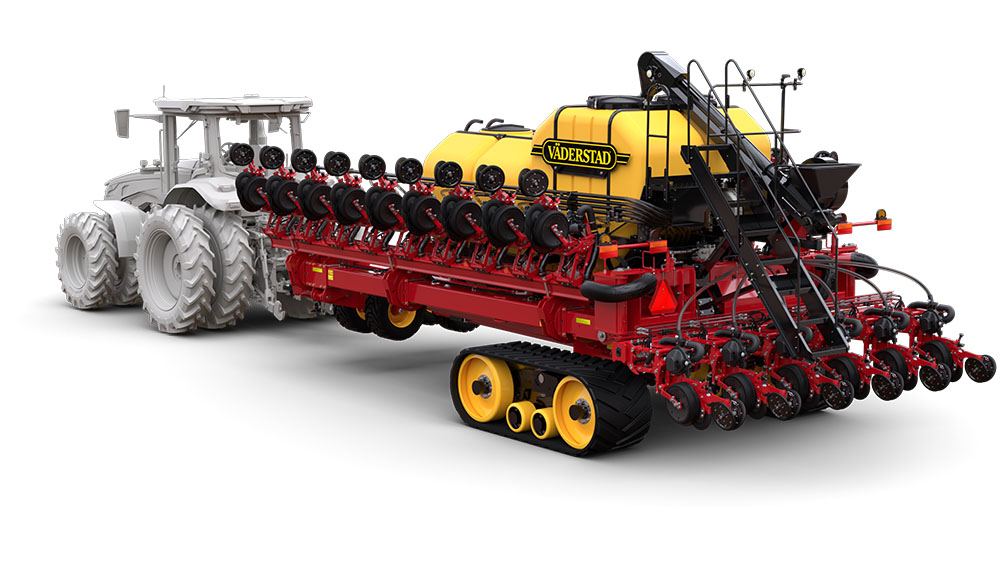

Narrow transport
A front‑folding design, combined with a telescopic hitch, keeps transport width compact. The hitch extends during transport and locks securely in the field position.
One machine - Multiple crops
Maize, sugar beet, soya beans, sunflower, oilseed rape, cotton, sorghum and many more – Tempo is able to plant a full range of crops with excellent results. By easily changing the row spacing and machine setup for different crops, Tempo offers high versatility on the farm. The result is increased efficiency and minimised machine costs per hectare. Changing the seed discs is carried out in a matter of seconds without the need of tools.
Excellent in all crops
The small seeds kit, which includes suspended stop wheels and the ability to adjust the angle of the closing wheels, ensures great results when planting small seeded crops, such as oilseed rape and sugar beets. This improve yields and widens the usage of the high-speed planter.
Tempo K: Unmatched precision at high speed
Every component on the Tempo planter is built to ensure the exact same start for all seeds. Watch this short video for some of the highlights of Tempo K.
Accept Cookies to Continue
You need to accept cookies in order to view this feature. Click here to change your consent.
High speed precision planting with Tempo
Tempo is designed to maintain accurate seed placement when working at high speeds. It combines controlled seed transport with a well‑formed furrow and reliable seed to soil contact, helping the crop establish evenly across the field.
Accept Cookies to Continue
You need to accept cookies in order to view this feature. Click here to change your consent.

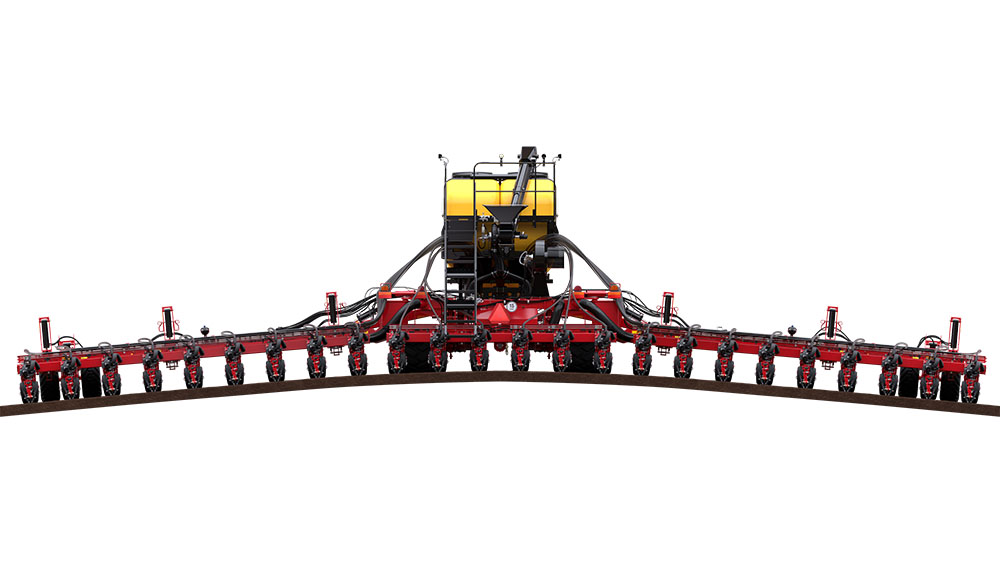

Perfect depth control
Tempo L is equipped with hydraulic wing pressure that transfers weight from the inner section of the machine to the outer wings.
The system enables the planter to follow field irregularities and maintain consistent working depth across the full width, supporting even crop emergence.
PowerShoot - Speed is not an issue
On traditional planters, the seed falls freely through the seed tube from the seed meter down to the soil. When vibrations arise as the speed increases, the seed bounces in the seed tube and much of the precision of the seed meter is lost.
This is where Tempo, with its pressurised seed meter, stands out from the crowd.
Thanks to the PowerShoot technology, which uses air pressure to maintain full control of the seed all the way down to the soil, gravity is removed from the equation so speed is not an issue for Tempo.
No-till, min-till or conventional tillage
Tempo is capable of planting with up to 325kg coulter pressure. This enables high-speed planting in a wide range of field conditions and tillage systems.
To save moisture and increase capacity during hectic periods on the farm it is possible to plant directly into the stubble.
Thanks to the heavy-duty row unit and effective row cleaners, Tempo is able to deliver perfect results in all conditions.
Built for high speed
Every component of Tempo is designed for high speed planting, with minimal service requirements.
All joints in the row unit are maintenance free and the heavy-duty parallel linkage is designed to be able to transfer weight to the row unit. The frame, the row unit, the fan, the hydraulics – all have a robust design making it a durable, versatile and easy-to-maintain planter that fits the requirements on your farm.
Gallery
Technical data
| Number of rows | 24 |
| Row spacing, inch (mm) | 30 (762) |
| Working width, ft (m) | 60 (18.29) |
| Transport width, ft (m) | 15' 10" (4.6) |
| Transport height, ft (m) | 12' 6" (3,8) |
| Transport length, ft (m) | 38' (11.58) |
| Weight max, lb (kg) | 43000 (19504) |
| Weight transfer | Hyd |
| Volume seed bin, bu (l) | 150 (2x75) / 5286 (2x2643) |
| Volume fertilizer bin, gal (l) | 1500 (2x750) / 5678 (2x2839) |
| Hydraulic requirements | 4 DA + 2 FR* + LS |
| Oil flow requirements, GPM (l/min) | 55 (208) |
| Draugh requirements (hp) | 370-450 |
*One return line (case drain) without back pressure (max 2.5 bar) for draining of fan motors.
| Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering. |
| LS = Load sensing | FR = Free return | DA = Double acting | ||
| H = Hydraulic | P = Pneumatic |
