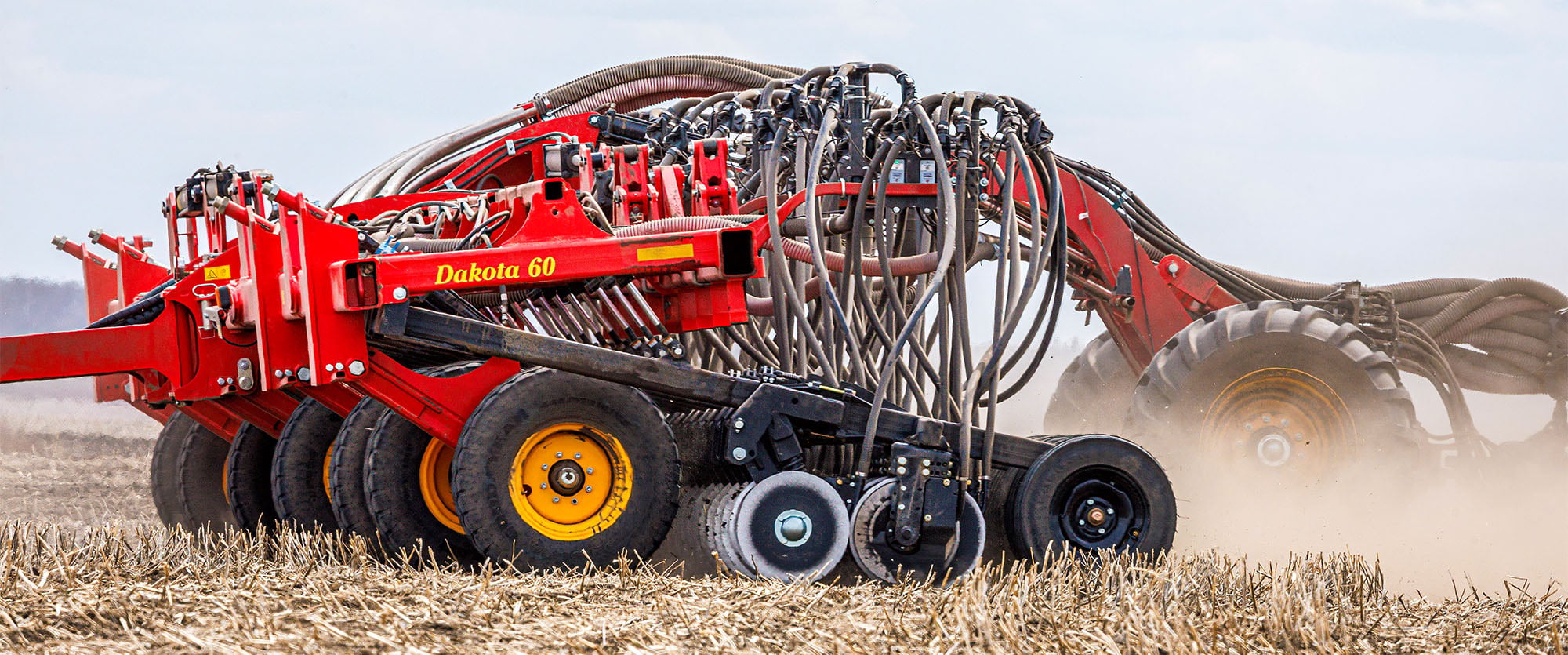

Dakota 60
18,3 m
150/230 mm
Adjustable
6,6 m
Precision and efficiency combined
The Dakota single disc drill is engineered to deliver outstanding precision for cereal growers operating in high‑residue, heavy soil or wetter field conditions. It maintains a consistent seeding depth at working speeds of 12.9 km/h or more, ensuring superior fertiliser placement and optimal seedbed quality.
With its low‑maintenance design and a 18.3 m working width, Dakota offers 15 cm/23 cm row spacing and integrates seamlessly with Väderstad’s Precision Delivery Air Carts.
Ideal seedbed
Dakota’s disc openers create a narrow trench, placing the seed precisely in optimal moisture conditions for reliable emergence.
Firm seed‑to‑soil contact
The disc opener delivers consistent, firm seed‑to‑soil contact for cereals and pulses, even in challenging heavy soils, supporting uniform crop emergence.
Enhanced weed control
Narrow row spacing accelerates canopy closure, shading out emerging weeds and reducing the reliance on herbicides.
Excellent agronomic performance
Successful crop growth begins with a precise seeding operation. Choosing a seeding system that performs consistently in changing conditions helps protect yield potential from the very start. With the right setup, you support uniform crop establishment and reduce avoidable risks throughout the season.
-
Optimising moisture, emergence, and early crop competition
The Dakota is engineered to protect soil moisture, secure firm seed-to-soil contact, and support quick canopy development. Its disc opener system minimises disturbance, promotes even emergence in challenging soils, and helps the crop outcompete early weeds for a strong start to the season.
Swipe to read more ⮕
-
Ideal seedbed
In any cropping system, moisture is a key limiting factor for yield potential, particularly in regions with limited rainfall. The Dakota uses disc openers to create a narrow trench, placing the seed precisely in optimal moisture conditions. Rear packer tyres then seal the trench, helping retain moisture and support consistent crop emergence.
-
Seed-to-soil contact in heavy soil conditions
Direct contact with the soil is how a seed accesses critical moisture and nutrients which is especially important when it comes to immobile nutrients such as phosphorus and potassium. The disc opener on the Vaderstad Dakota fractures the sidewall of the seed trench during planting operations, providing the seed with excellent soil contact that results in early, robust germination and emergence.
-
Enhanced cultural weed control
Preventing early establishment of weeds is a key component of preserving crop yield. Shading of weeds by the crop is an effective cultural weed control tool especially in areas where herbicide resistance is prevalent. With the narrow row spacing featured on the Vaderstad Dakota, the crop produces a quicker canopy to shade weeds and reduce their growth potential throughout the season.

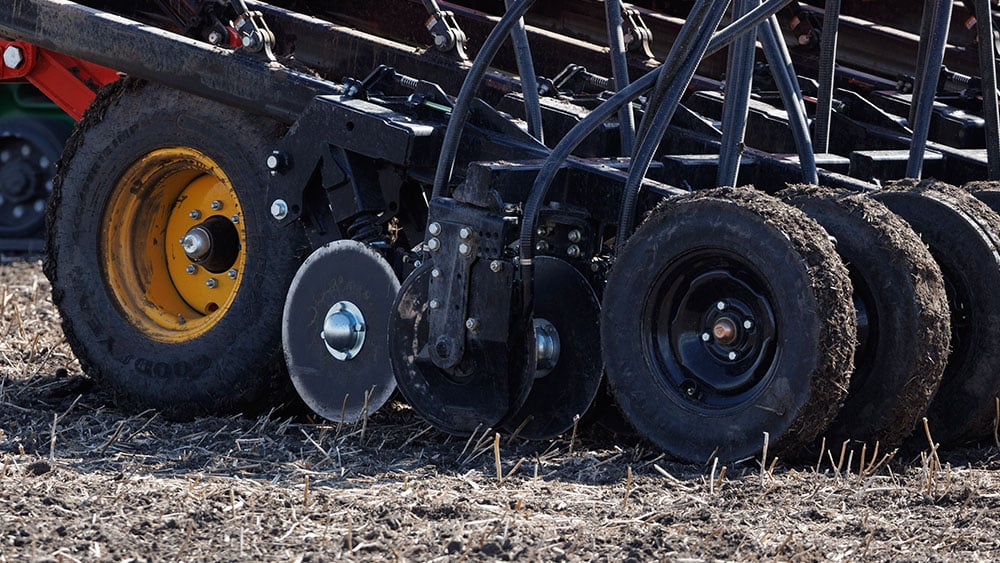

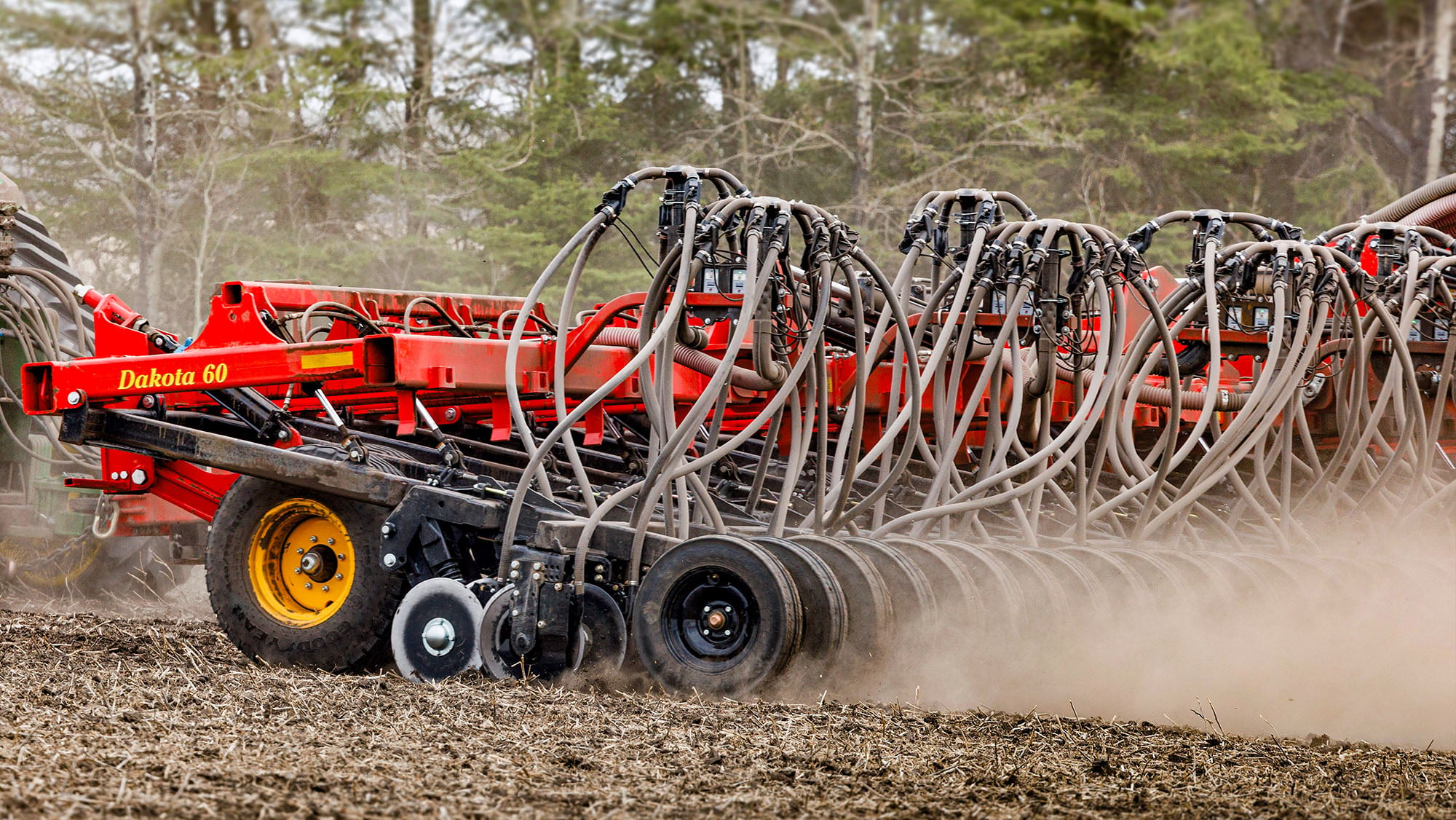

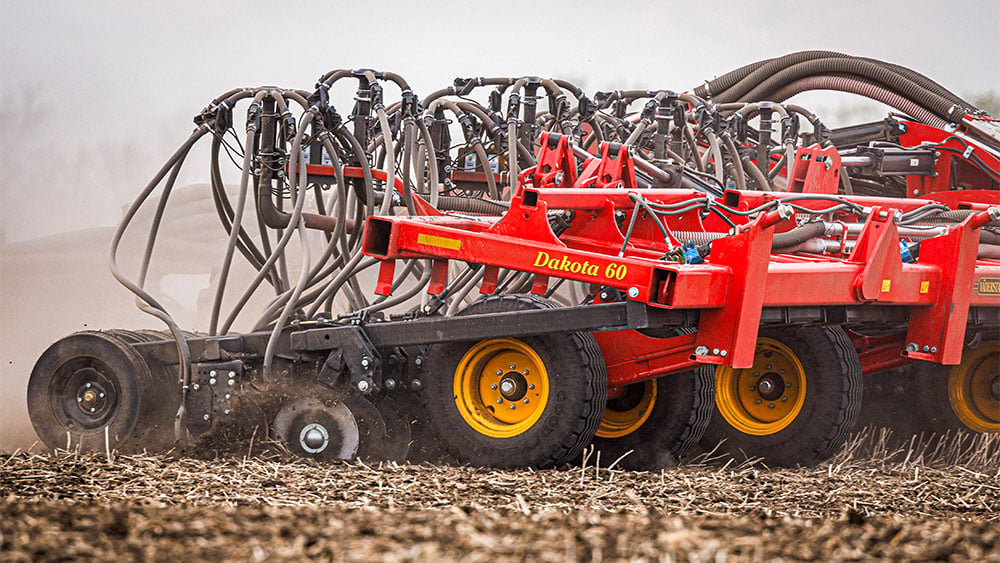

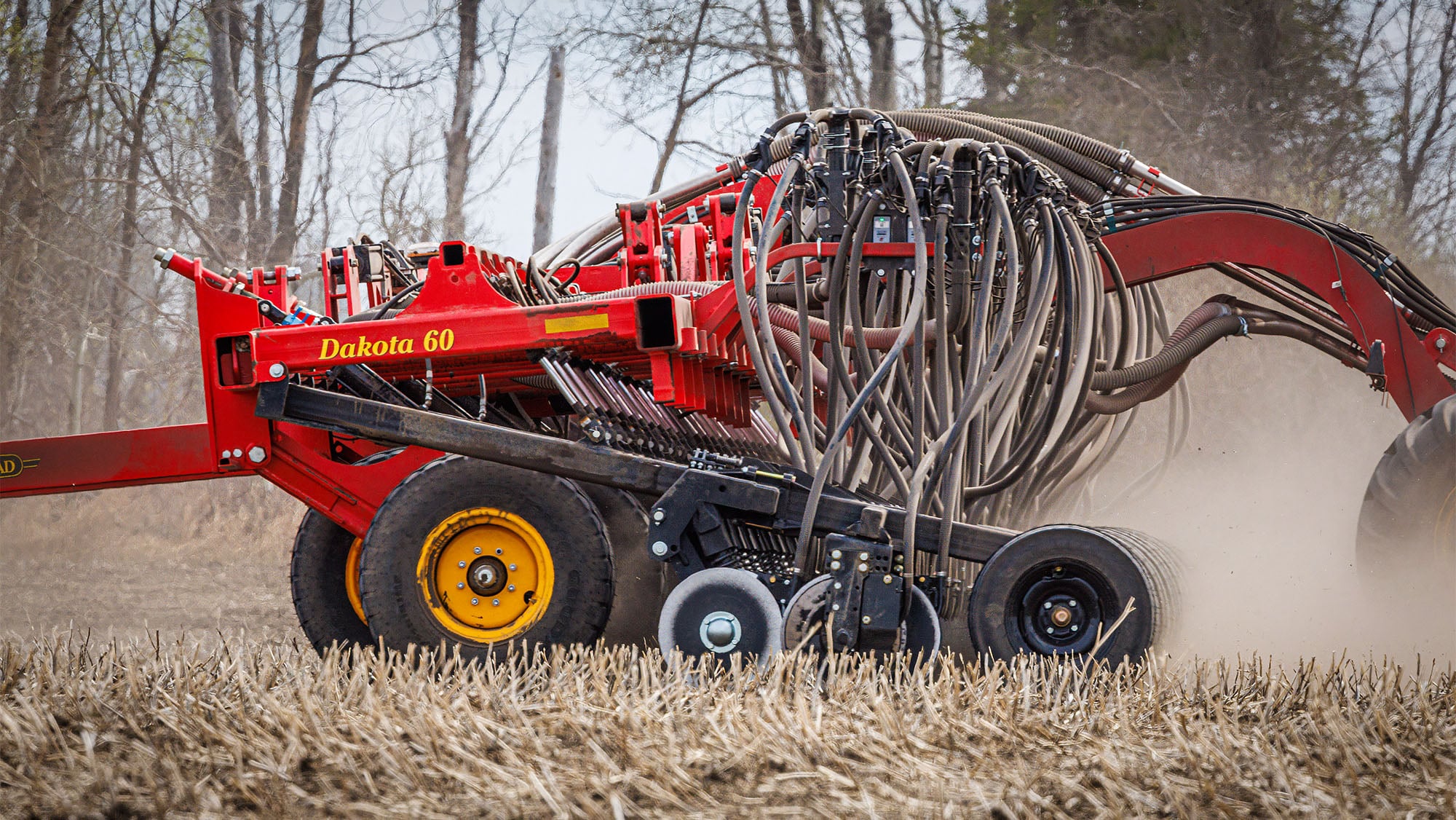

The Dakota row unit
The Dakota row unit uses a patented opposing single‑disc design that is straightforward to operate and maintain. Each opener contains only two bearings, requiring lubrication once a year. With no in‑season maintenance, you can keep working without interruption. The row unit maintains consistent seed depth and spacing, even when soil conditions vary. Its single‑disc opener places seed accurately in cereals and pulses, supporting uniform emergence and strong early crop development. This precision helps the crop access nutrients efficiently and promotes reliable performance across different field environments.
-
Precision for a stronger start

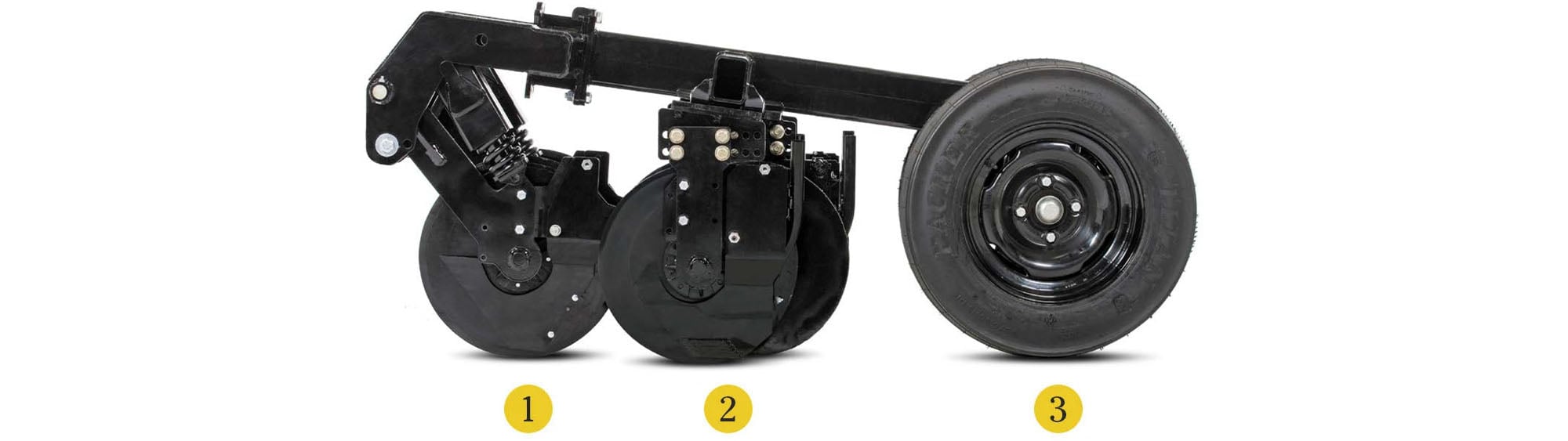

Dakota brings together accurate fertiliser placement, consistent seed positioning, and uniform packing to support even crop establishment. Each system works in sequence to create an efficient seedbed, helping the crop access nutrients, maintain good soil contact, and emerge evenly across varied field conditions.
Swipe to read more ⮕
-
➊ Fertiliser placement (optional)
Dakota’s mid‑row fertilising system places liquid, dry, or NH₃ fertiliser directly between the seed trenches formed by the opposing discs. The disc design also enables soil to be moved back over the fertiliser immediately after application, supporting an effective and well‑protected nutrient zone.
-

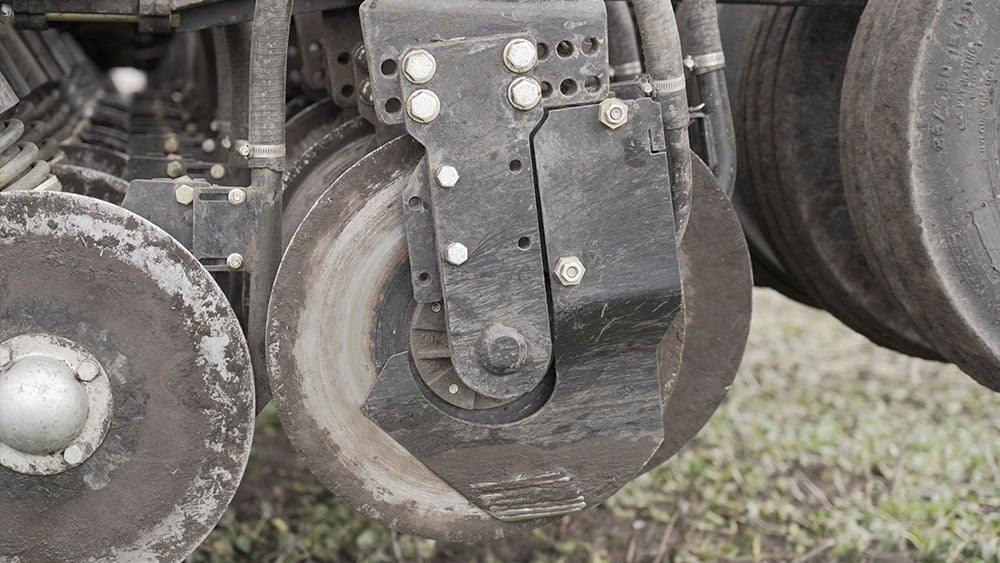

➋ Seed placement
The 6”/9” row configuration suits small grains, pulse crops, and cover crops. The patented opposing discs lift and reposition soil between the rows to create a level, dark seedbed that warms quickly. This process enhances seed‑to‑soil contact and supports uniform crop establishment.
-

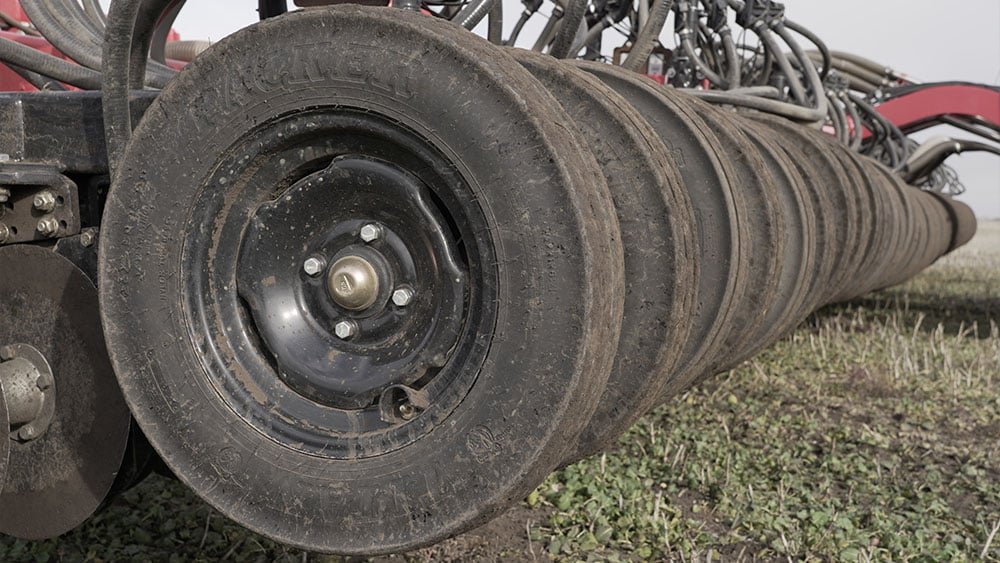

➌ Packer tyre for uniform packing
A rear packer tyre closes the furrow effectively and helps retain NH₃, with seed placed on each side of the tyre. The wide packer tyres maintain consistent seeding depth while re‑levelling and firming the seedbed as the drill moves through the field. This promotes reliable seed‑to‑soil contact and even emergence across changing field conditions.

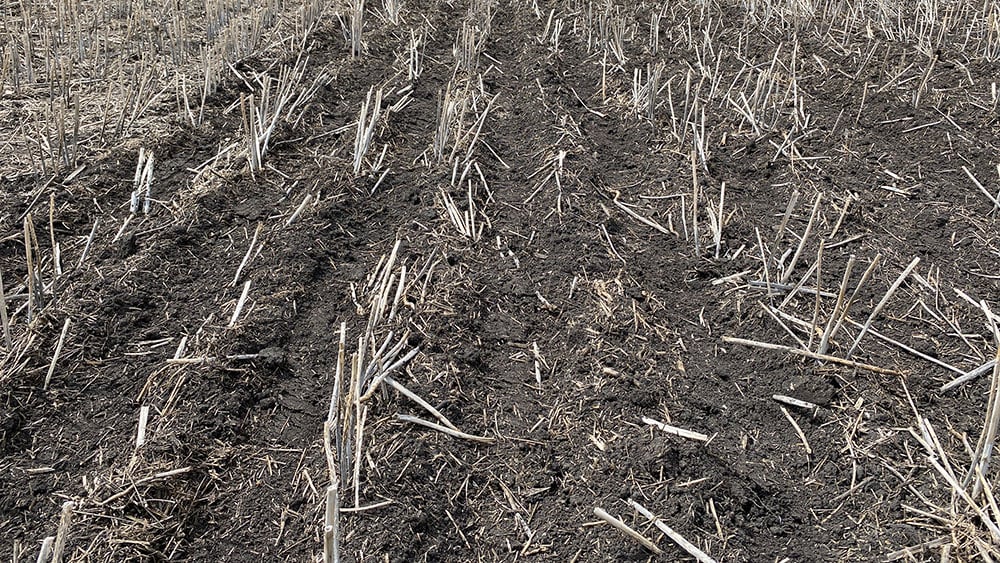

Ideal seedbed
Dakota’s openers move soil efficiently to create a clean, warm seedbed. This produces a darker surface that supports quicker warming and strong seed‑to‑soil contact. The result is uniform early growth and reliable performance, even in high‑residue, heavy, or wetter field conditions.

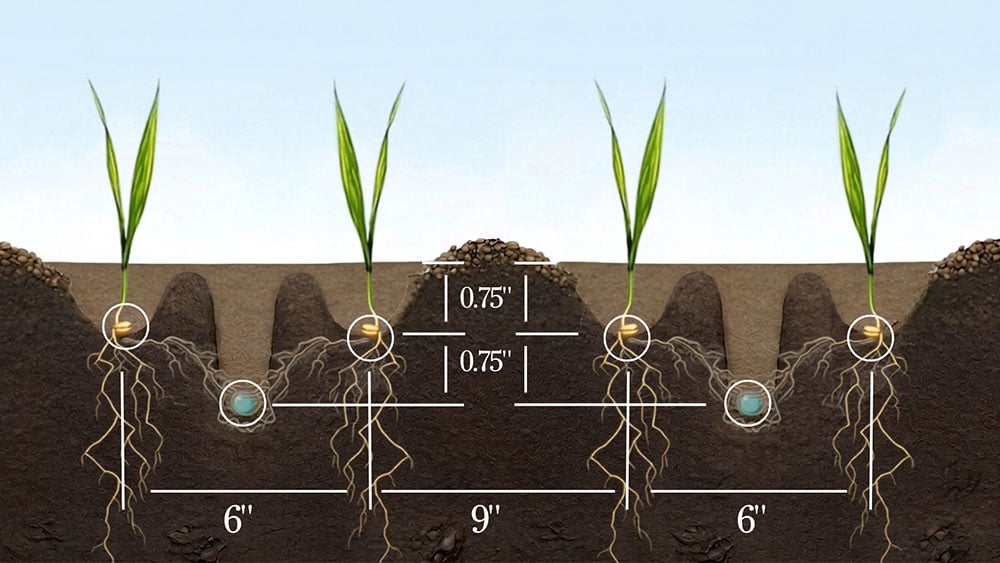

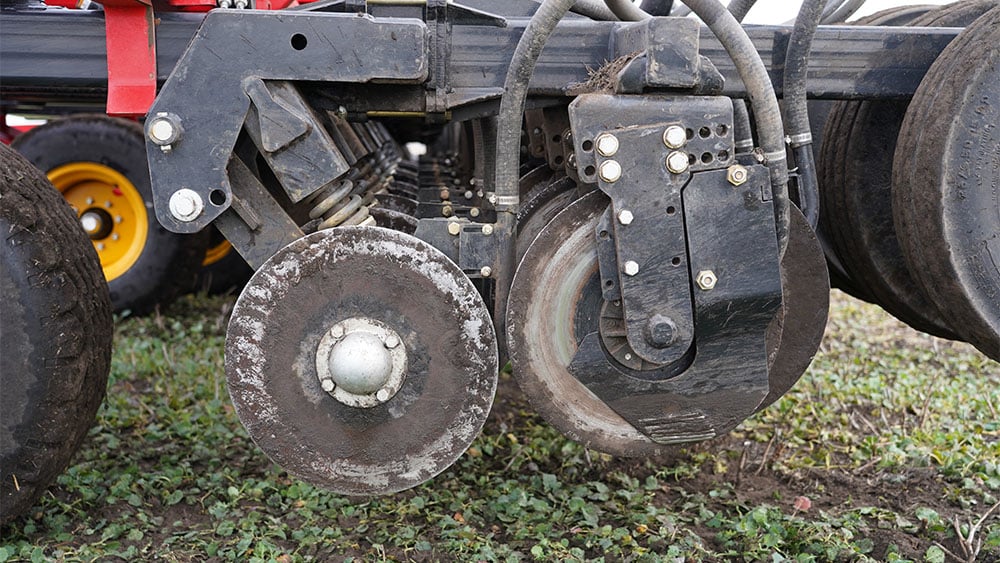

Fertiliser accuracy
Placing fertiliser correctly in relation to the seed is essential for strong early crop development. Dakota’s mid‑row fertilising system ensures accurate seed‑to‑fertiliser positioning, even in demanding soil conditions. The system applies liquid, dry, or NH₃ fertiliser between the seed trenches formed by the opposing discs, positioning it about 7.6 cm from each row and up to 3.8 cm below the seed. The discs then move soil back over the fertiliser immediately after application, creating a protected and effective nutrient zone.
Easy setting of down pressure
Dakota allows quick adjustment of down pressure through the iCon wireless control system and the in‑cab display. This gives you real‑time responsiveness to changing field conditions and helps secure precise seed‑to‑soil contact. Hydraulic cylinders supply consistent pressure from the toolbar, maintaining the same force throughout the full range of cylinder travel

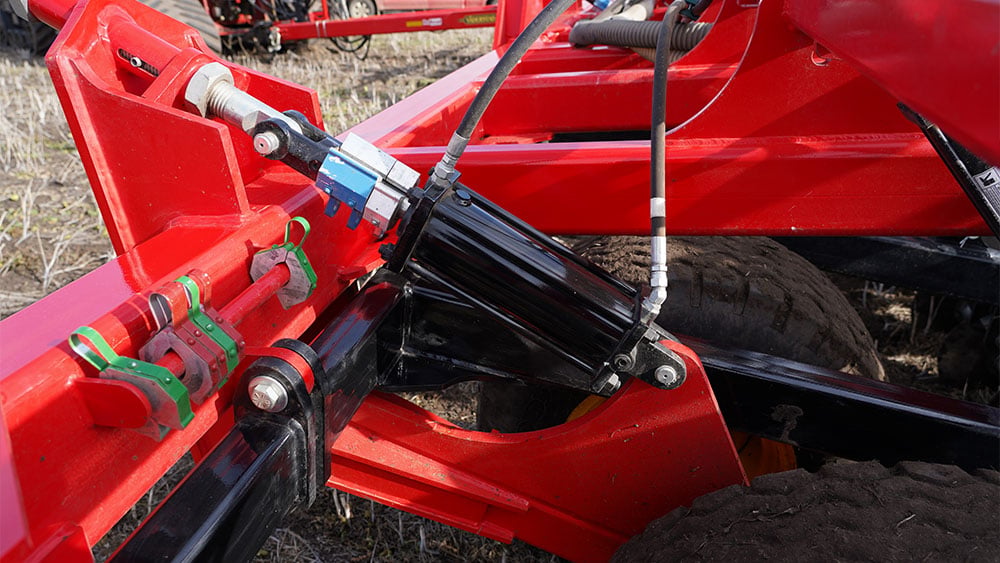

Easy setting of seed depth
The Dakota makes it straightforward to fine‑tune your seeding setup for accurate seed placement. You can adjust seed depth quickly using the frame stops, without any tools. This helps secure consistent emergence across changing soil conditions.
Wireless blockage monitoring
Now you can watch for blockages from the cab as the blockage system monitors product flow on your Väderstad air seeder system. If a blockage is detected, it immediately delivers quick, accurate notification of the exact location to your iCon wireless control system.
Product leaving the manifold bounces off a stainless-steel membrane as it enters the seed or fertiliser run, creating a small sound wave. If there is any change in the sound wave, it is picked up by acoustic sensors that detect the blockage to trigger audio and visual alerts on your tablet.
When a blockage location is identified, you can take your tablet out of the tractor cab and carry it with you as you locate the blockage and fix the issue. No more misses.
Single rank design for simplicity and uptime
Dakota is built for low maintenance and straightforward servicing. Its patented opposing single‑disc design is simple to operate and easy to maintain. Each opener contains only two bearings, requiring lubrication once a year. Each toolbar section can be locked up individually for safe access during maintenance. Seed drop tubes are also quick to remove when service is needed. With no in‑season maintenance required, Dakota supports continuous work in the field.

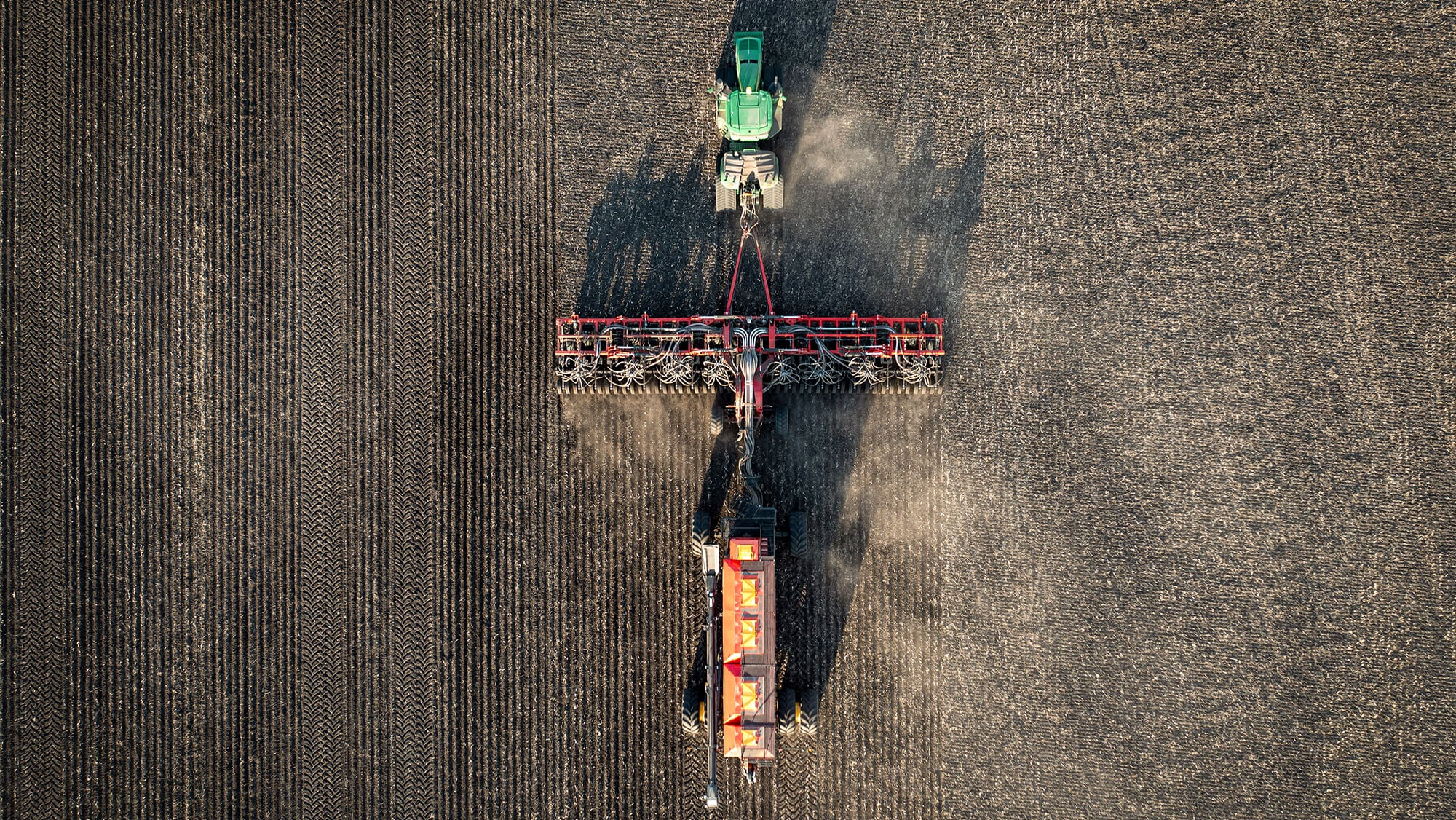

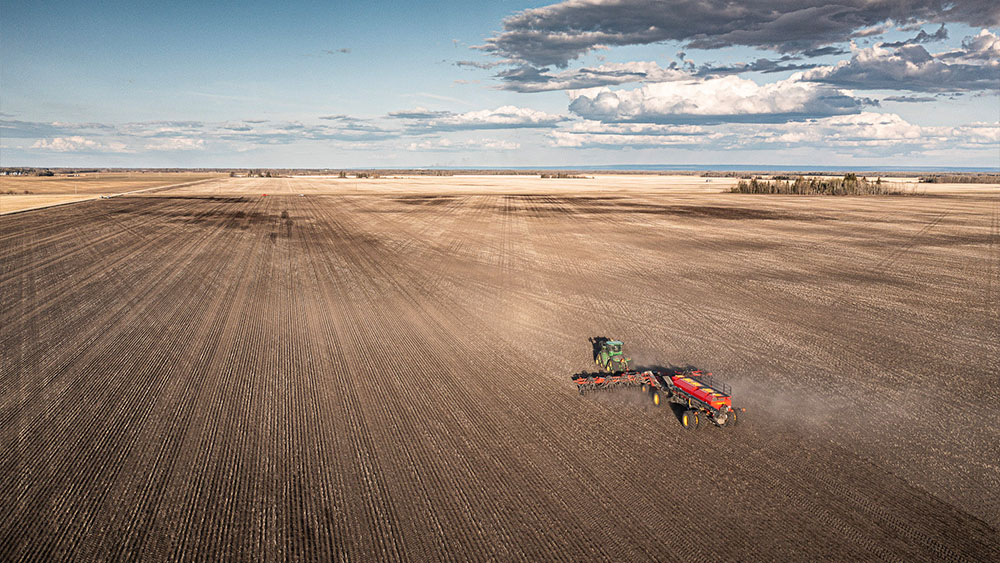

Performance in the field
Productivity is at the core of the Dakota 60. Designed for fast, efficient seeding in all conditions, it operates at working speeds of up to 13 km/h (8 mph) while covering up to 24 hectares per hour (60 acres/hour). At full working speed, the Dakota 60 applies up to 252 kg/ha (225 lbs/acre), delivering consistent, high‑output performance.
Its precision and efficiency make the Dakota 60 ideal for high‑accuracy seeding of soybeans and cereal crops, delivering maximum productivity with every pass.

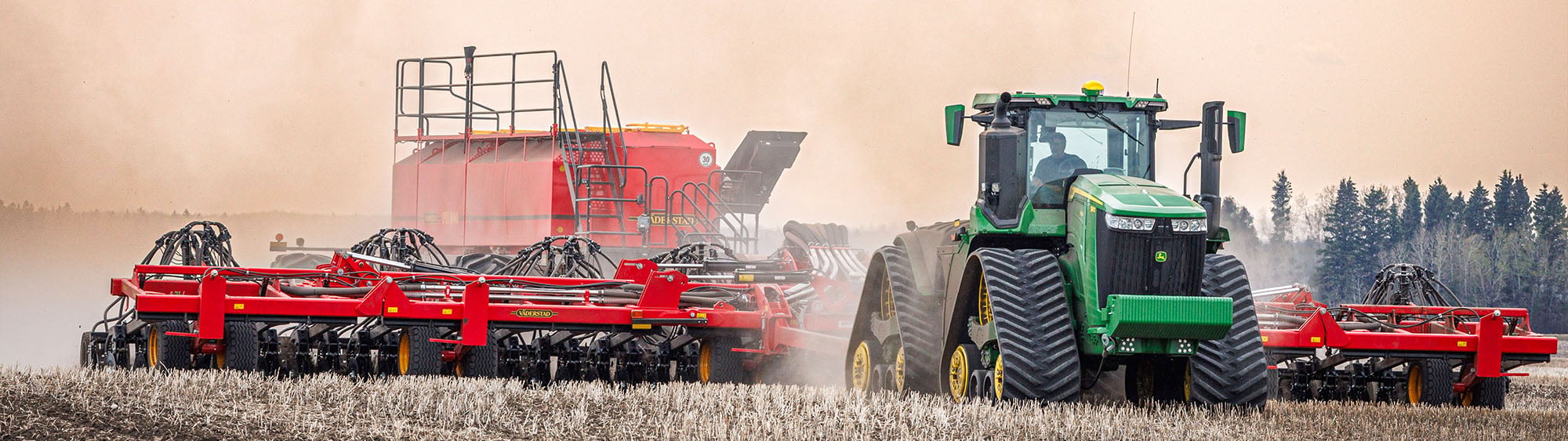

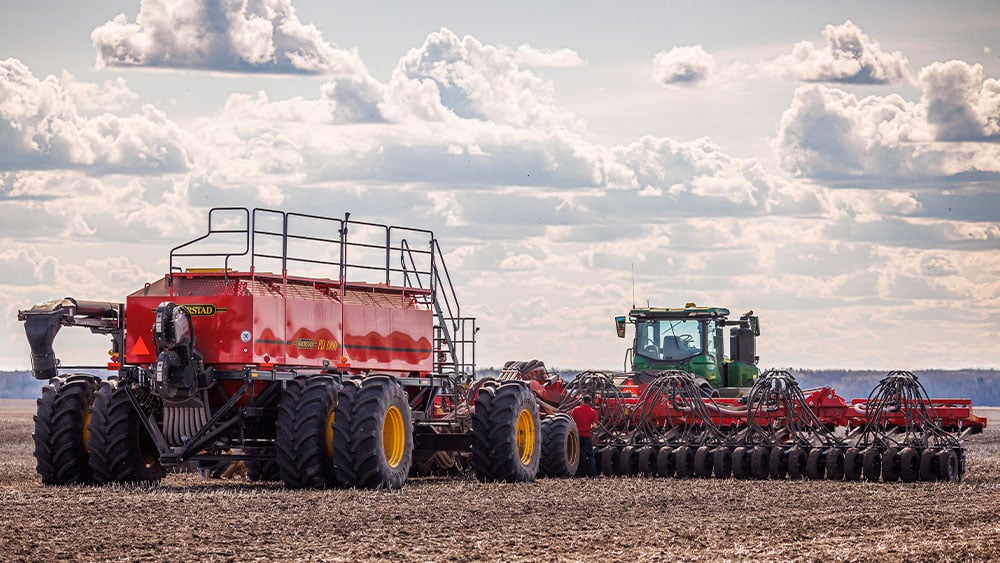

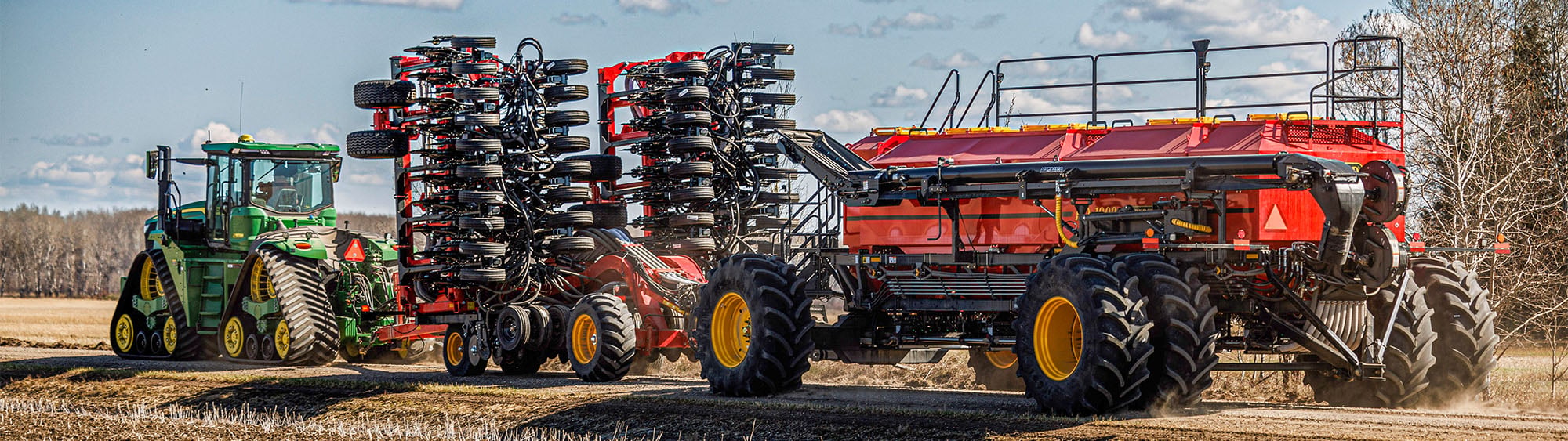

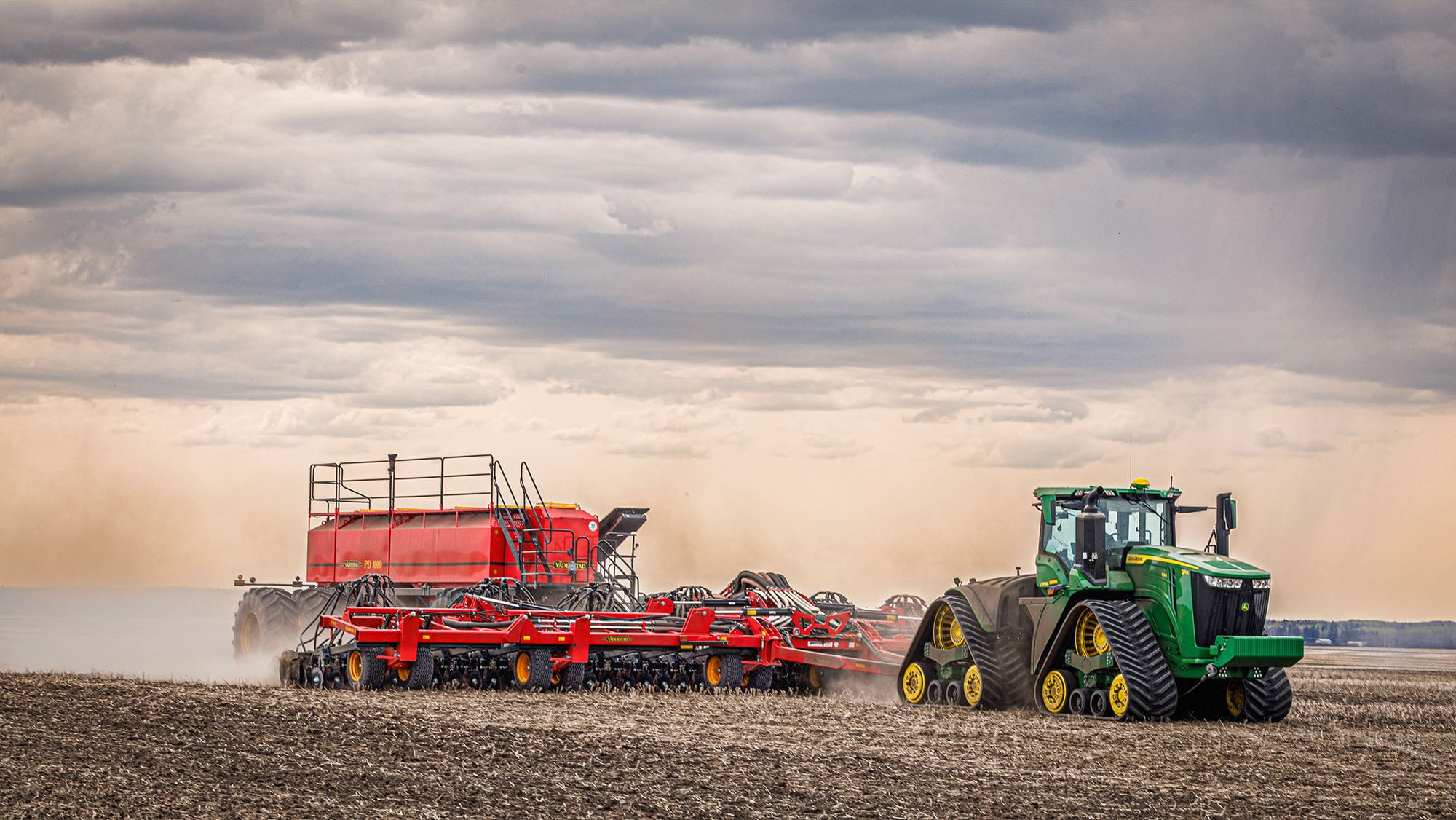

Pair with Precision Delivery Air Carts
Dakota air seeders are designed to work seamlessly with Väderstad’s Precision Delivery Air Carts in tow-behind (TBH) configuration. Together, they offer precision, capacity, and flexibility, delivering accurate seed and fertiliser placement in a single pass. This combination supports quick, even crop emergence and improved crop quality, helping you secure a stronger return on investment.
Product concept
Zone 1 – Fertiliser placement
Dakota’s mid‑row fertilising system provides accurate seed‑to‑fertiliser positioning, even in challenging soil conditions. It applies liquid, dry, or NH₃ fertiliser between the seed trenches formed by the opposing discs, placing the fertiliser about 7.6 cm from each row and up to 3.8 cm below the seed. This design also moves soil back over the fertiliser immediately after application, protecting the nutrient zone.
Zone 2 – Seeding
The patented opposing discs lift and reposition soil between the rows to create a level, dark seedbed. This supports quicker warming and improves seed‑to‑soil contact, helping the crop establish evenly across the field.
Zone 3 – Reconsolidation
A rear packer tyre closes the furrow effectively and helps retain NH₃, with seed placed on each side of the tyre. The packer tyre also gauges working depth, reducing the risk of sidewall compaction often associated with gauge wheels. This promotes a firm, uniform seedbed for consistent emergence.
Gallery
Technical data
| ST60SD | |
| Working width (m) | 18.3 |
| Row spacing, seed (cm) | 150/230 paired row |
| Number of seed openers | 96 |
| Number of fertiliser openers (optional) | 48 |
| Disc size (cm) | 45.7 |
| Transport width (m) | 6.6 |
| Transport height (m) | 5.03-5.49 |
| Ground clearance (cm) | 0-43.18 |
| Frame sections | 5 |
| Recommended working speed (km/h) | 12.8 |
| Draught requirement from (hp) | 500 |
| Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering. |
