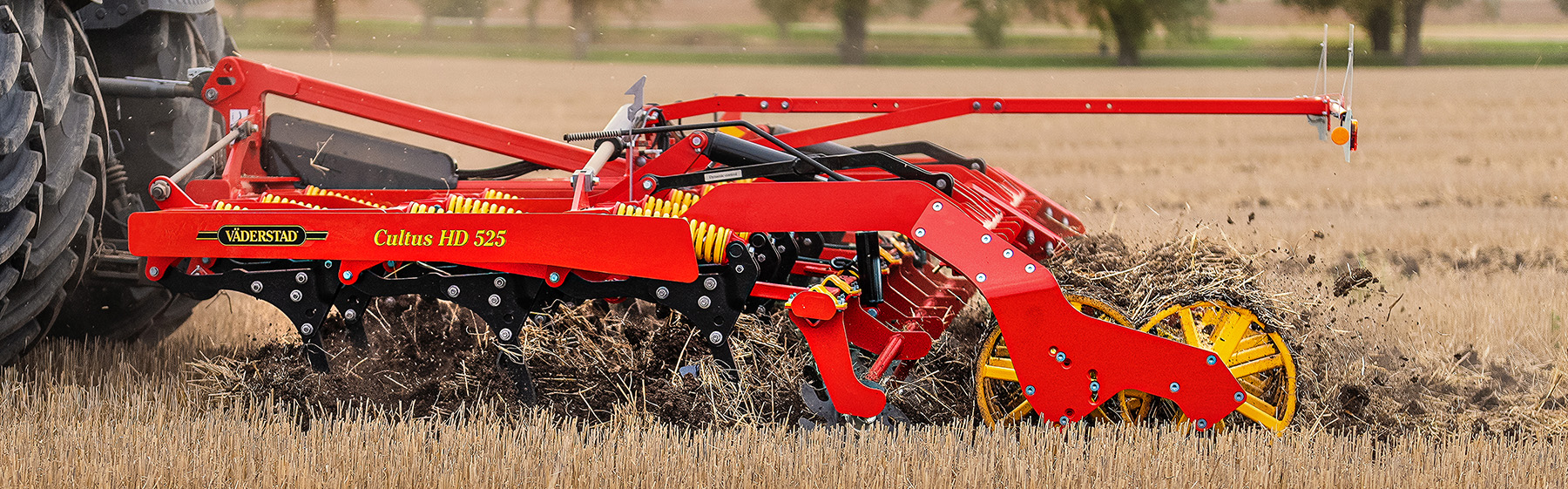

Cultus HD 525 in the field

Cultus 425-525 & Cultus HD 425-525

A new standard in mounted cultivators

The 4.25-5.25m tine cultivators Cultus 425-525 and Cultus HD 425-525 sets a new standard in the mounted tine cultivator segment. The machines has a design adapted to modern size tractors, treating the mounted cultivator segment equal to the trailed. It is designed to never compromise on its exact depth precision and high field performance. It is easy to handle and its extreme robust frame guarantees an exceptional long working life.

Click to active 360 product spinner

Selected features

You need to accept cookies in order to view this feature. Click here to change your consent.

Superior depth keeping

A key performance indicator of a cultivator tine is its ability to keep its high force to the soil at all times. This is where Cultus and Cultus HD stands out from the crowd. If meeting a heavy obstacle, the tine is able to fully release out of the soil to pass the obstacle while saving stress on tine and frame. When re-entering the soil, it will however keep its full power to quickly return to working position. In this way the machine is able to ensure an extremely accurate depth precision, resulting in excellent tillage results over the entire field.

Read more
Cultus HD tine

Cultus HD tine – Keeping the depth. Always.

The heart of the machine is the heavy-duty Cultus HD tines. With a release force up to 680kg, Cultus HD will keep its depth in a full range of conditions. Set depth is delivered in all soils, all working depths.

Read more
Cultus tine

Cultus tine – Intense cultivation

The Cultus tine is designed for high performance during a long working life. With a very effective stone release at 480kg and horizontally mounted double springs.

Read more
Man changing point

Point configurator

To meet differing farming needs, Väderstad offers a wide range of points for cultivators and tine harrows. With the right choice of points you are able to optimise the working result on your fields, providing the best start possible for the next crop.

Read more

You need to accept cookies in order to view this feature. Click here to change your consent.

MixIn doubles the effect

All Väderstad tine cultivators are equipped with the unique MixIn shin as standard.

The MixIn shin throws the material forwards instead of upwards, which otherwise is the usual direction. When it has landed, the material passes by the tines once again, and the mixing and crumbling effect is doubled.

The forward movement further enhances the straw distribution, leading to a more even crop emergence. The unique MixIn shin provide superior mixing and crumbling, without increasing fuel costs.

Read more
High performance star shaped levellers

High performance star shaped levellers

The rotating leveller ensures an optimal performance in varying conditions and handles residues very well. The star-shaped leveller discs are more forgiving than standard discs when adjusting working depth. This minimizes the need of adjustments.

Read more

You need to accept cookies in order to view this feature. Click here to change your consent.

Automatic leveller adjustment

The automatic leveller adjustment system Dynamic Control ensures the levellers are always working in the optimal position. This takes away the need for manual adjustment, and the driver does not have to worry about the important levelling performance.

Read more
Rubber suspended packer

Rubber suspended packer

The packer transfers intense vibrations into the cultivator frame. By suspending the packer with rubber, the sharp shocks are eliminated and the frame working life increases drastically.

Read more
Cultus is built to last

Built to last

Every component of Cultus and Cultus HD is designed to provide a long working life in the field. The robust frame is paired with smart solutions preventing material stresses over time. A unique feature enabled by the heavy frame is the possibility to transfer weight from the tractor to the cultivator. This enables the machine to enter in very hard conditions.

Read more

You need to accept cookies in order to view this feature. Click here to change your consent.

Product concept

Zone 1 - Intensive loosening and mixing

Cultus and Cultus HD provides an intense mixing and loosening. The Cultus tine delivers 480kg release force and a working depth down to 25cm, while Cultus HD provide 680kg release force and 30cm working depth.

Point options

MixIn shin options

Zone 2 - Levelling

Rubber-suspended levellers with maintenance-free bearings leave a very smooth surface.

Zone 3 - Reconsolidation

The rubber suspended packer reconsolidates the soil profile, at full working depth of the machine.

single SteelRunner

single SoilRunner

Double SoilRunner

Technical data

Cultus 425 HD 425 525 HD 525
Working width (m) 4.16 4.16 5.13 5.13
Packer width (m) 4.4 4.4 5.4 5.4
Transport width (m) 2.85 2.85 2.85 2.85
Transport height (m) 3.0 3.0 3.5 3.5
Weight with CageRunner HeavyDuty (kg) 3110 3480 3540 3980
Weight with Single SoilRunner (kg) 3060 3430 3510 3950
Weight with Double SoilRunner (kg) 3360 3730 3860 4300
Weight with Single SteelRunner (kg) 3550 3930 4100 4540
Number of tines 16 16 19 19
Tine spacing (cm) 26 26 27 27
Hydraulic requirements (DA) 2-3 2-3 2-3 2-3
Draught requirement (hp) 200-300 200-300 250-350 250-350



Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering.

LS = Load sensing    FR = Free return    DA = Double acting
H = Hydraulic    P = Pneumatic    N/A = Not available
