Precision Delivery Air Cart 400 – 1350
400 – 1350 bu
3-4
Individual scales
18-500 cc
To bring the highest level of technology and precision to your farm, Väderstad has developed the Precision Delivery line of air carts, featuring the PD 1350, Väderstad’s largest and newest air seeder. With a wide range of innovative features such as Acres to Empty, In-field Calibration, and Fit to Field, the iCon Wireless Control system provides you with more detailed real-time information, increased automation, more customisable data, and optimised prescription mapping.
Precise product delivery
Achieve the best crop performance with the Fenix III metering technology for exceptionally precise seeding. Deliver the exact volume of product needed to create the optimal plant stand in your field.
Compaction reduction
Several models in our Precision Delivery Air Cart family can be equipped with dual tyres to reduce soil compaction, improving root growth, soil aeration, and plant nutrient uptake.
Improved nutrient use efficiency
Maximise field utilization and minimize nutrient loss with precise sectional control and variable rate application. This optimizes plant nutrient uptake and reduces environmental impact.

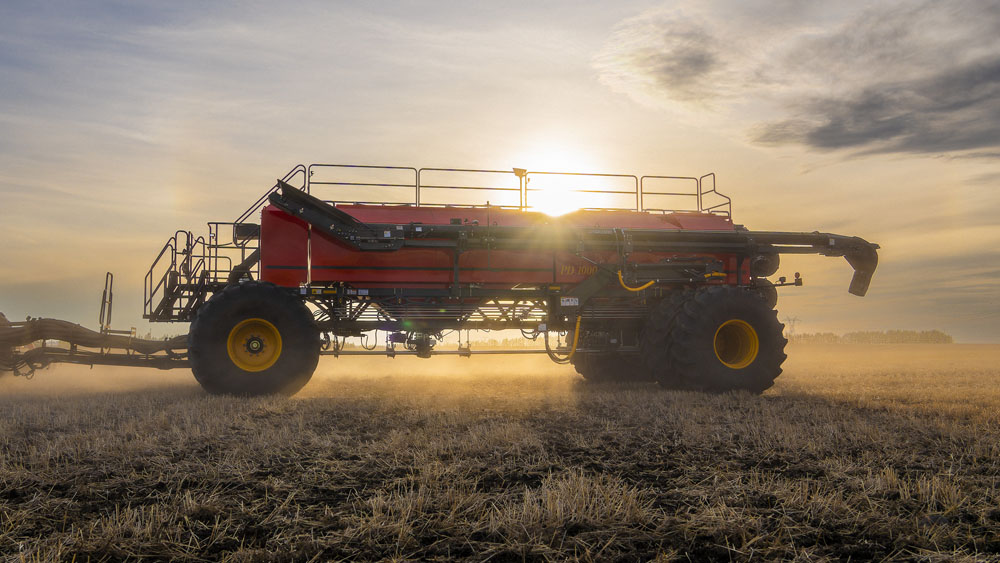

What is new for Precision Delivery Air Cart Model Year 2027?
-
Innovations in the Precision Delivery Air Cart family
Discover the latest advancements in the Precision Delivery Air Cart family for Model Year 2027. These updates are designed to help farmers achieve superior precision, reduce soil compaction, and optimise nutrient efficiency throughout the season.
-

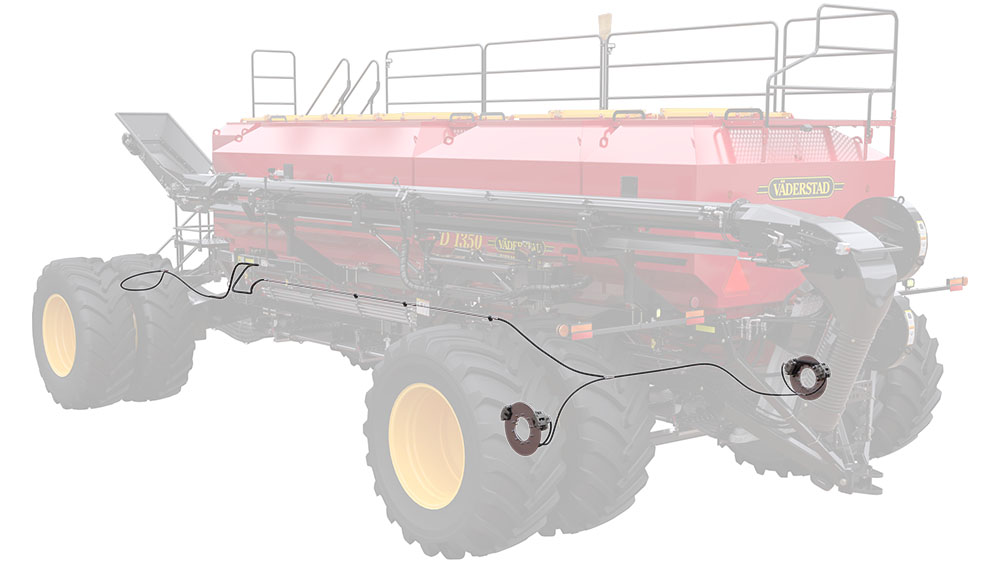

Optional hydraulic brakes for PD 820 and PD 1000
The PD 1350 air cart continues to set the standard with hydraulic brakes for dependable stopping power and enhanced control during transport and seeding. For 2027, this advanced braking system is now available as an option on PD 820 and PD 1000 models. This gives operators greater confidence and safety in the field.
-
Auto bin pressurization now standard
Previously exclusive to the PD 1350, the automatic bin pressurization system is now standard across PD 680, PD 820, and PD 1000 models. This intelligent feature eliminates manual valve adjustments and automatically adapts to increased fan output for consistent and efficient product delivery.
-
Enhanced iCon Wireless Control System
The iCon Wireless Control System introduces various powerful new features, including:
- Clone Jobs: Quickly create an exact copy of an existing job, preserving all settings for easy adjustments or reuse. This saves time and reduces setup errors.
- Pre-planned jobs: Build job profiles in the cloud and sync them to your iPad before seeding. This ensures a streamlined and efficient start to every operation.
Excellent agronomic performance
Seeding sets the foundation for crop performance throughout the year. It’s crucial to choose a seeding system that not only produces high-quality crops but also performs reliably under all weather conditions. Give your crop the best chance to succeed while reducing risks at the same time.
-
Precise product delivery
High-yielding, high-quality crops are characterised by their ability to utilise inputs to their full potential. Precision metering ensures uniform delivery of products, resulting in evenly spaced plants in the seed row that have access to the desired rate of nutrients throughout the growing season. By reducing inter-plant competition and providing nutrient consistency, the outcome is an evenly maturing plant stand across the entire field, maximizing return on investment.
Swipe to read more ⮕
-
Compaction reduction
Successful crop establishment relies on the ability of plant roots to grow and develop throughout the soil profile. Compaction layers in the soil hinder this growth by impeding root development, reducing soil aeration, and restricting nutrient mobility. It is crucial to ensure that the weight of equipment is distributed over as wide an area as possible to minimize the potential for compaction, especially in heavy, wet soil conditions that may be present during seeding.
-
Improved nutrient use efficiency
Reducing the overlap of a seed drill pass minimises the over-application of nutrients, leading to fewer emissions, reduced leaching potential, and more efficient plant growth. Additionally, nutrient requirements can vary significantly across a field and along the length of a toolbar in highly variable soils. Product metering for every ten-foot section of the drill allows for greater optimization of prescription mapping, ensuring the correct amount of nutrients is applied where needed.
When size matters
With their extreme capacity, Väderstad’s Precision Delivery Air Carts are designed to give you more time seeding and less time refilling. Offered in five sizes (400, 680, 820, 1000, and 1350), these carts have a total capacity ranging from 360 to 1350 bushels (12,685 to 47,572 litres). Now featuring Väderstad’s newest and largest air seeder, the PD1350 extends time between refills and maximises uptime in the field.

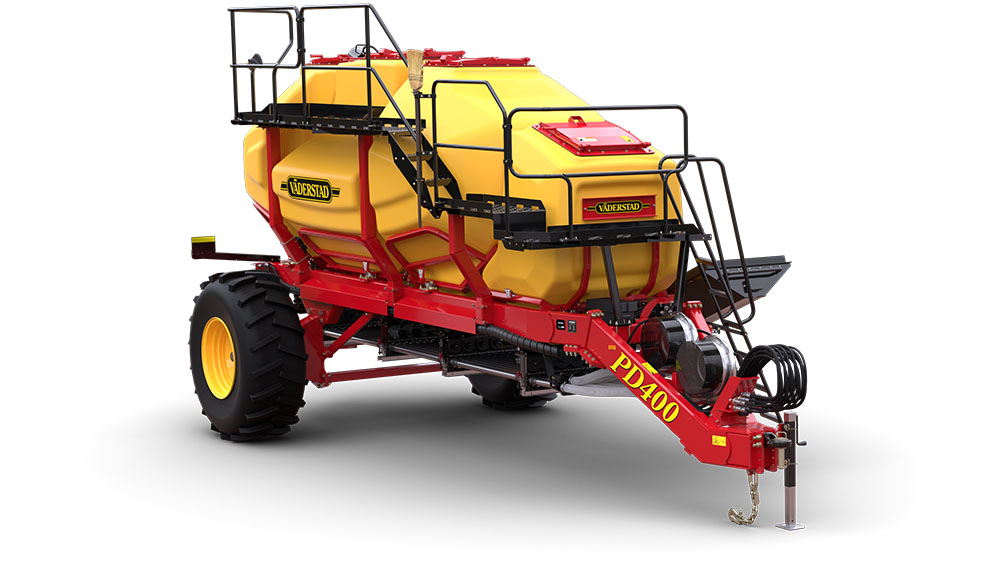

PD 400
The PD 400 comes factory standard as a three-bin, 360-bushel tank. To increase capacity, customers can order the PD 400 with an optional 40-bu front bin to increase the capacity to 400 bu.
- 40+120+150+90 bu capacities
- Available as Air Cart only

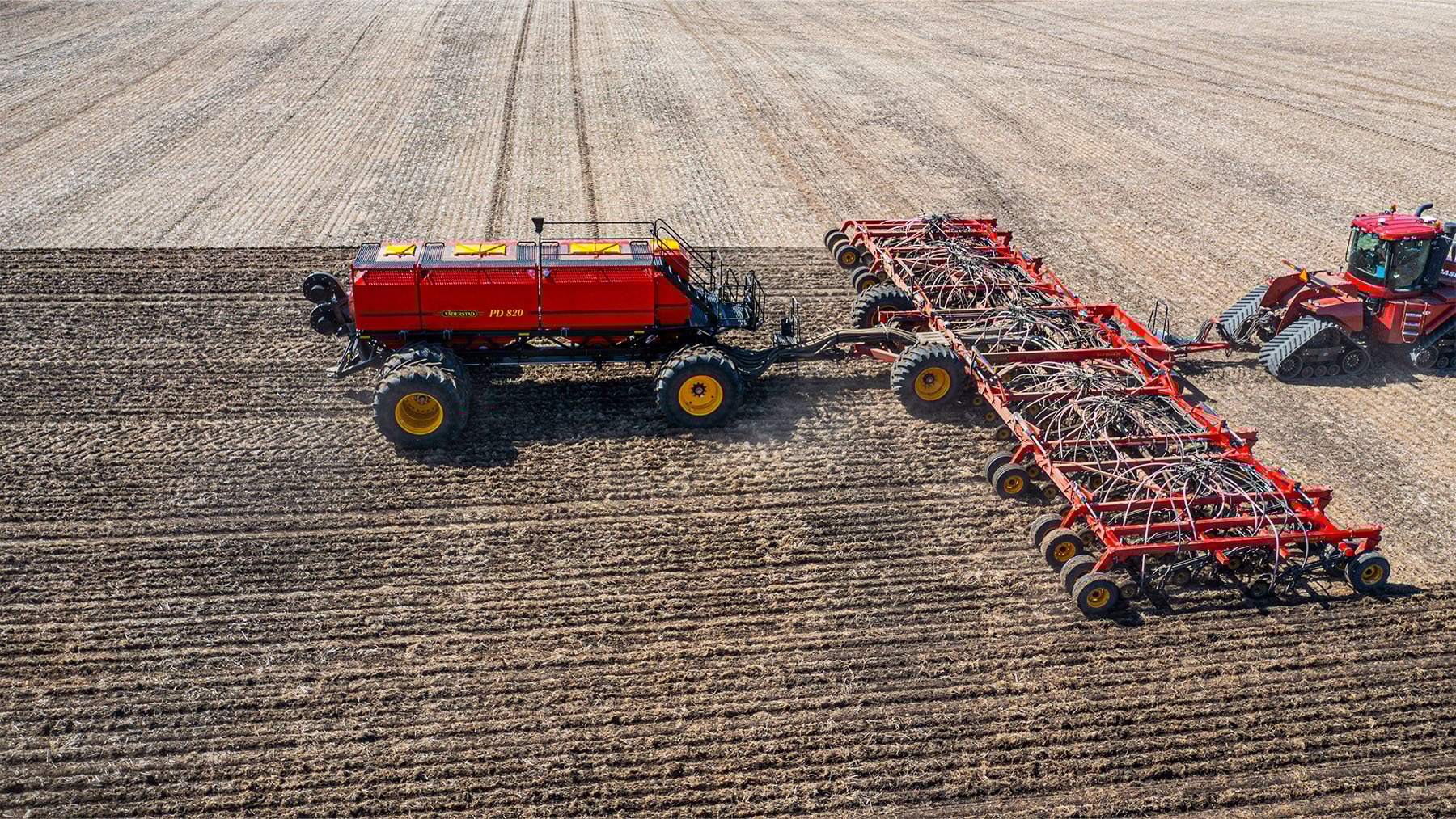

- Available in tow-behind (TBH) or tow-between (TBT)
- Rear axle: LSW850/55R30 tires

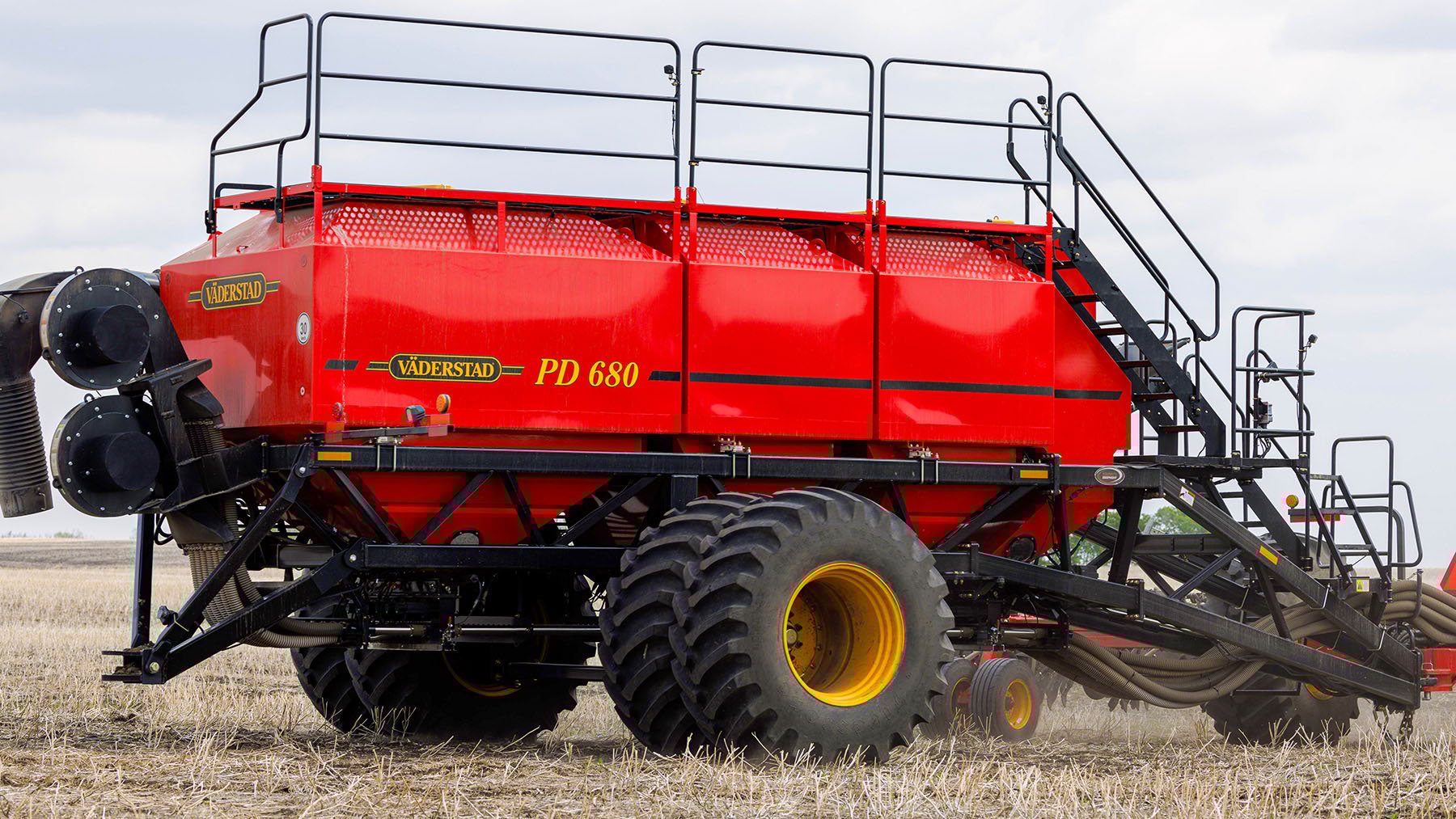

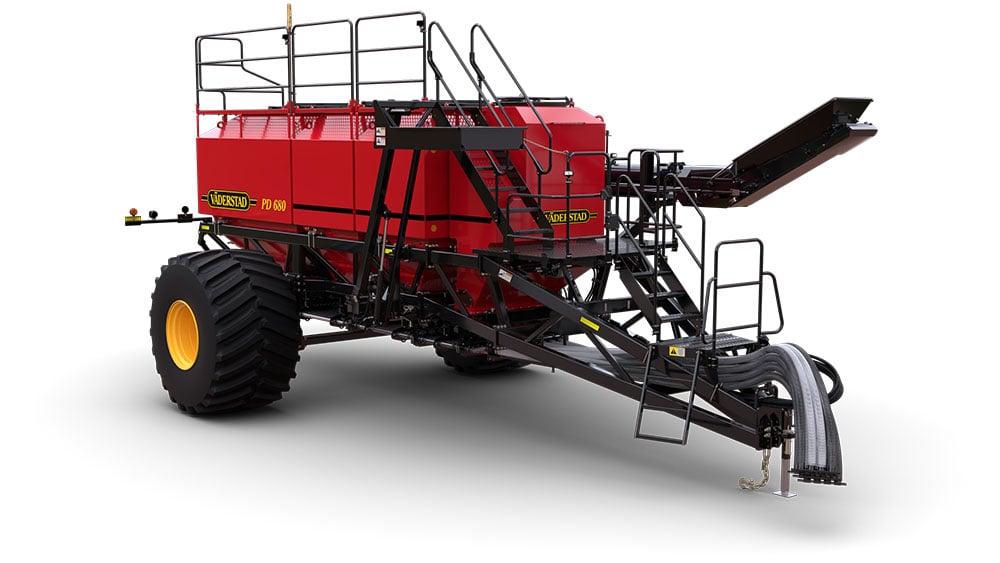

PD 680
The PD 680 offers the size and flexibility to keep your operation moving with the same technology found on larger Precision Delivery Air Carts.
- 60+160+160+300 bu. capacity
- Available as Air Cart only
- Available in tow-behind (TBH) or tow-between (TBT)
- Rear axle standard: Single 1250/50R32 tires
- Rear axle optional: Dual 30.5L32 tires

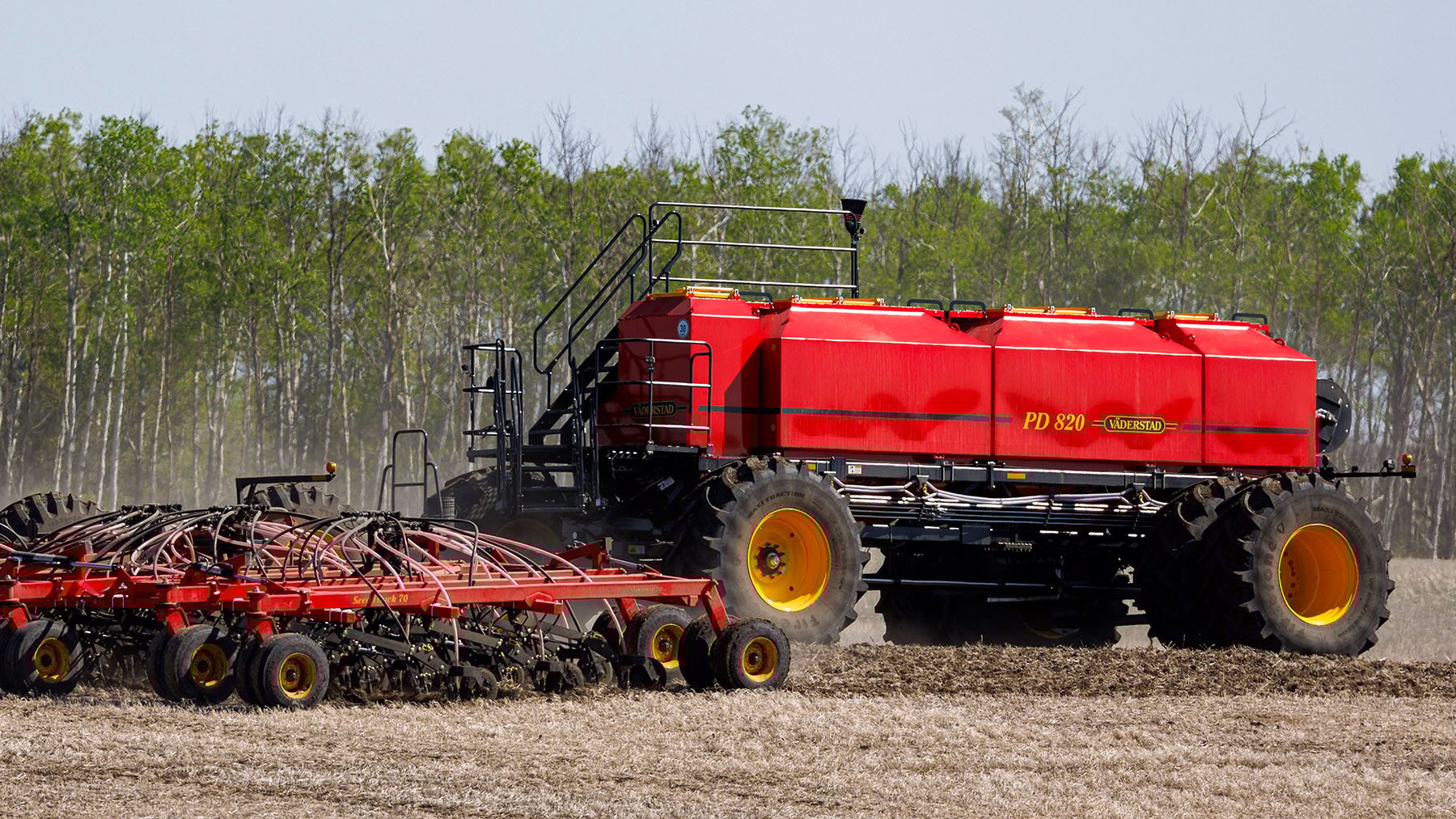

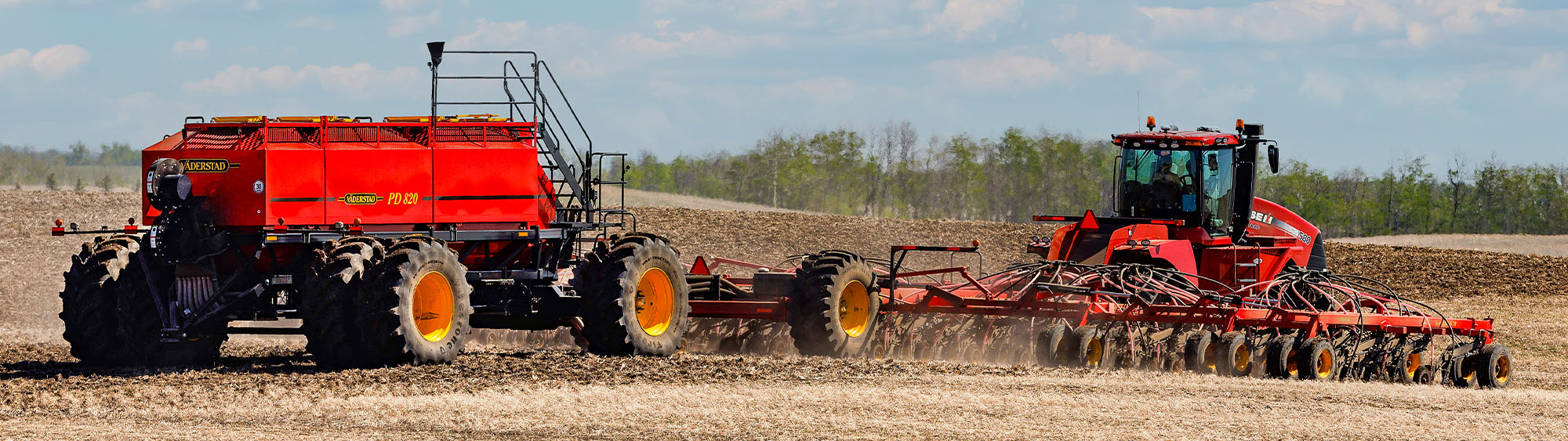

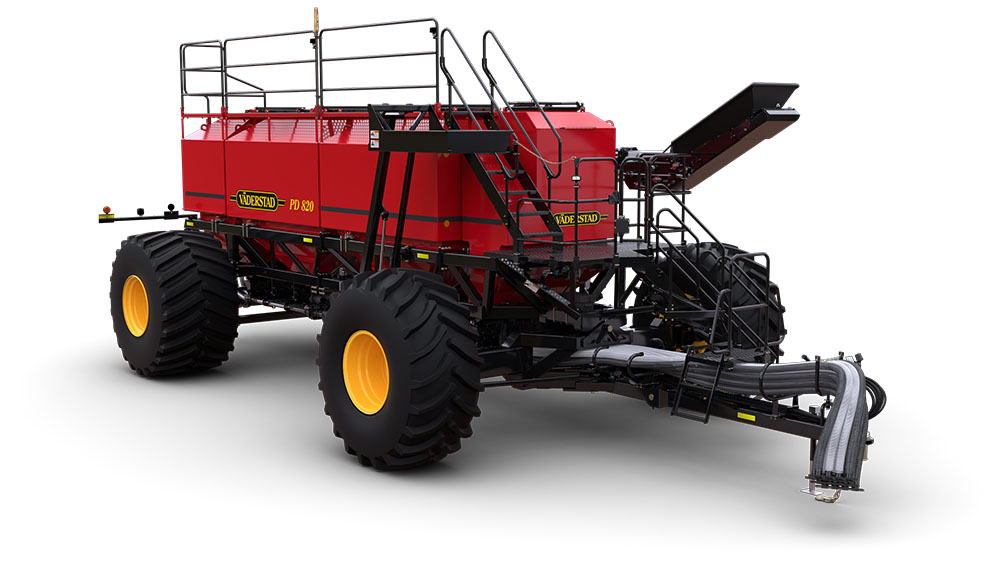

PD 820
The PD 820 allows you to get through the day with fewer fills so you can seed more acres with precision.
- 60+300+300+160 bu. capacity
- Available as Air Cart only
- Available in tow-behind (TBH) configuration
- Optional hydraulic breaks on rear axle
- Three tire packages available:
- Single VF800/70R38 front axle with single IF1250/50R32 rear axle
- Single VF800/70R38 front axle with dual VF800/70R38 rear axle
- Single IF900/75R32 front axle with dual IF900/75R32 rear axle

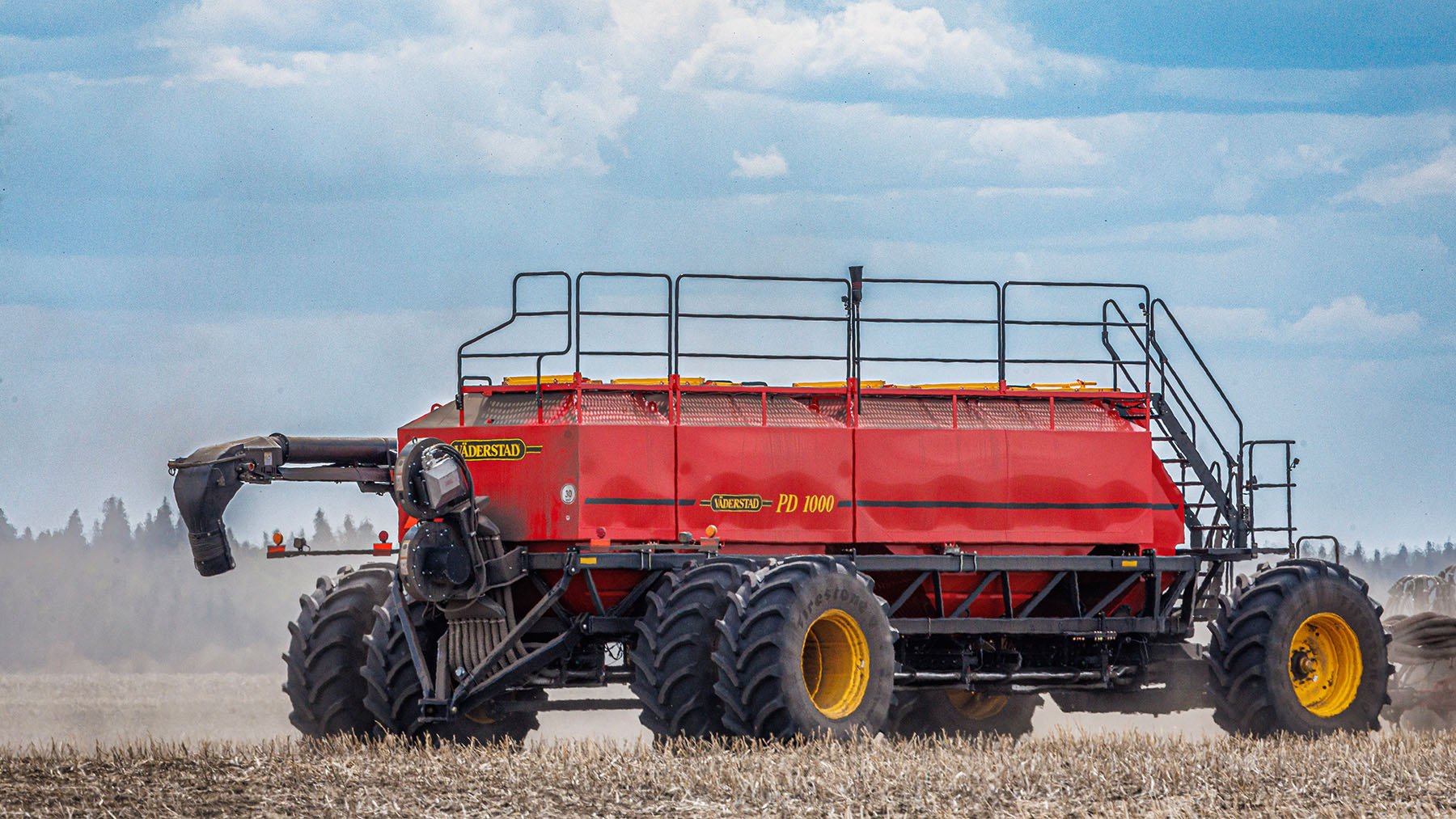

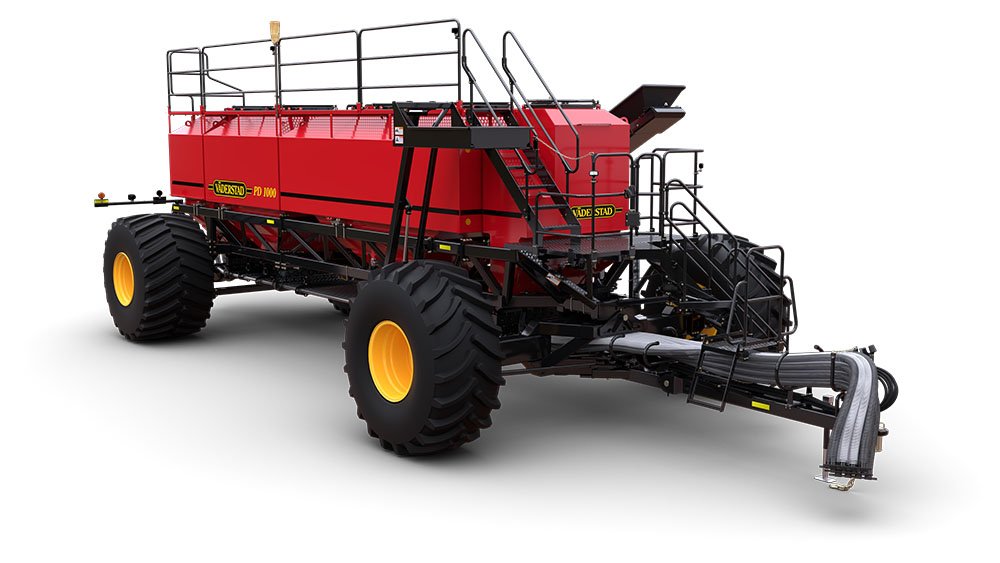

PD 1000
The PD 1000 combines capacity, flexibility and accuracy – and is one of Väderstad's largest air carts.
- 60+480+300+160 bu. capacity
- Available as Air Cart only
- Available in tow-behind (TBH) configuration
- Optional hydraulic breaks on rear axle
- Three tire packages available:
- Single VF800/70R38 front axle with single IF1250/50R32 rear axle
- Single VF800/70R38 front axle with dual VF800/70R38 rear axle
- Single IF900/75R32 front axle with dual IF900/75R32 rear axle

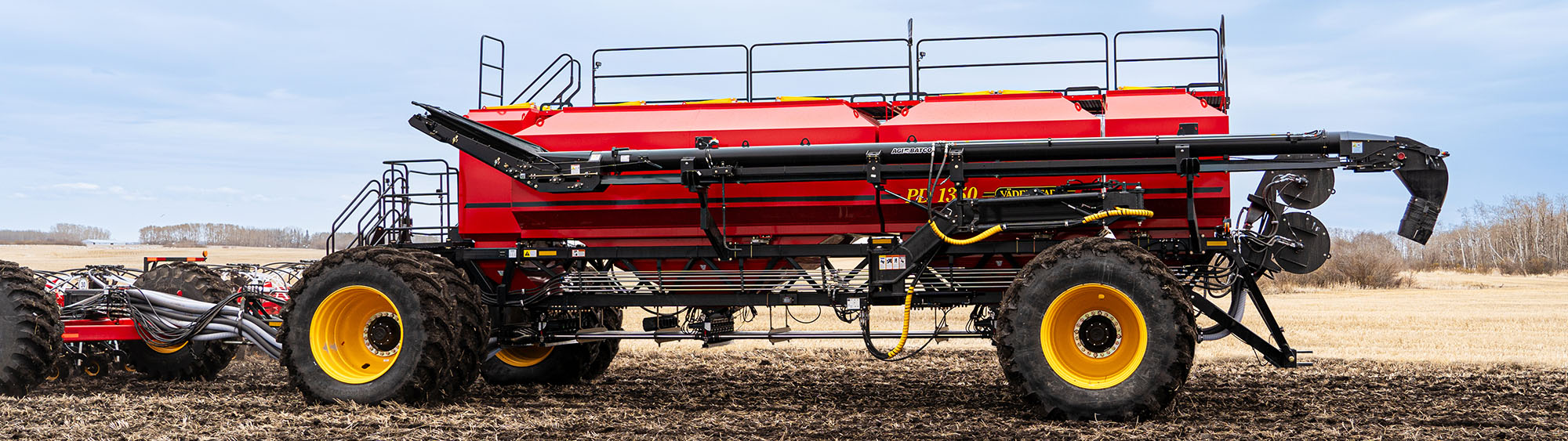

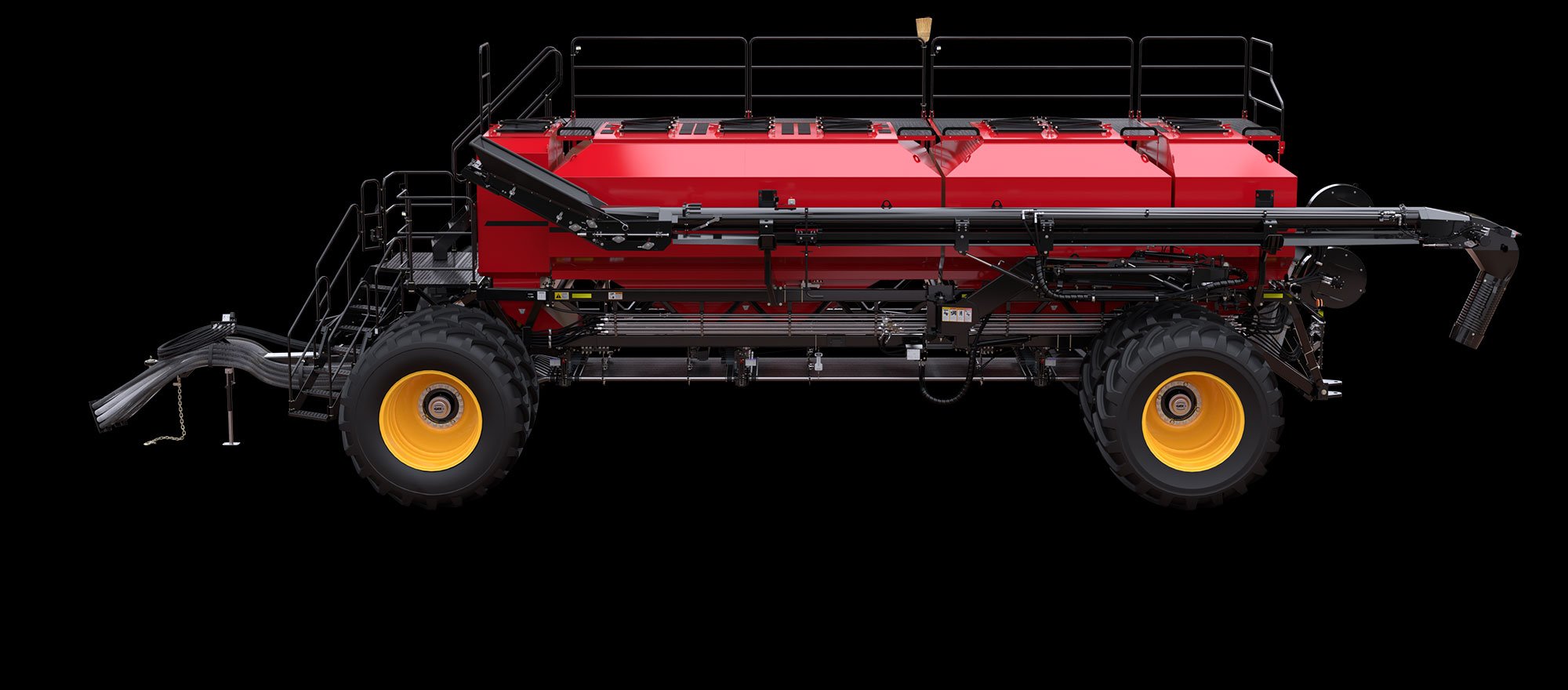

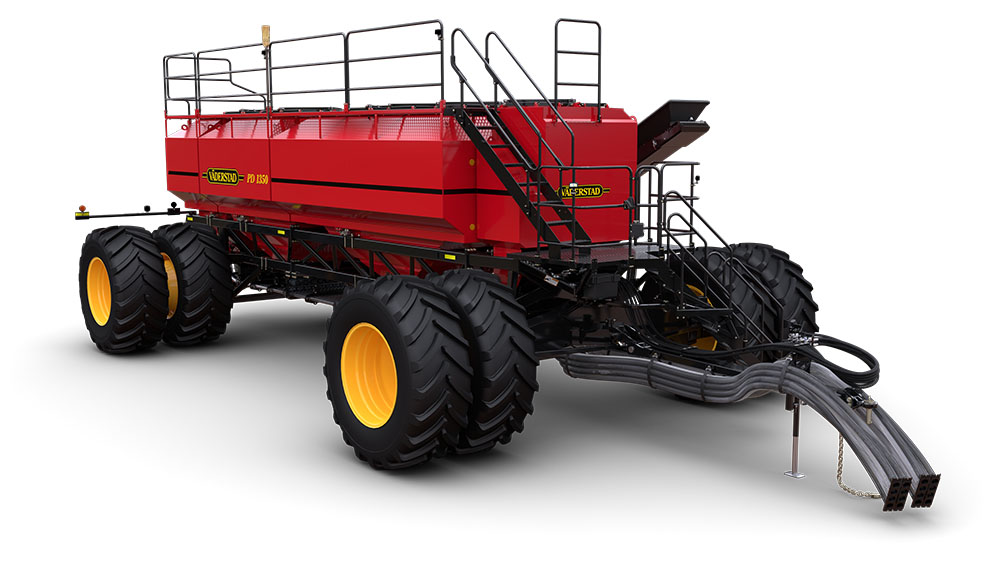

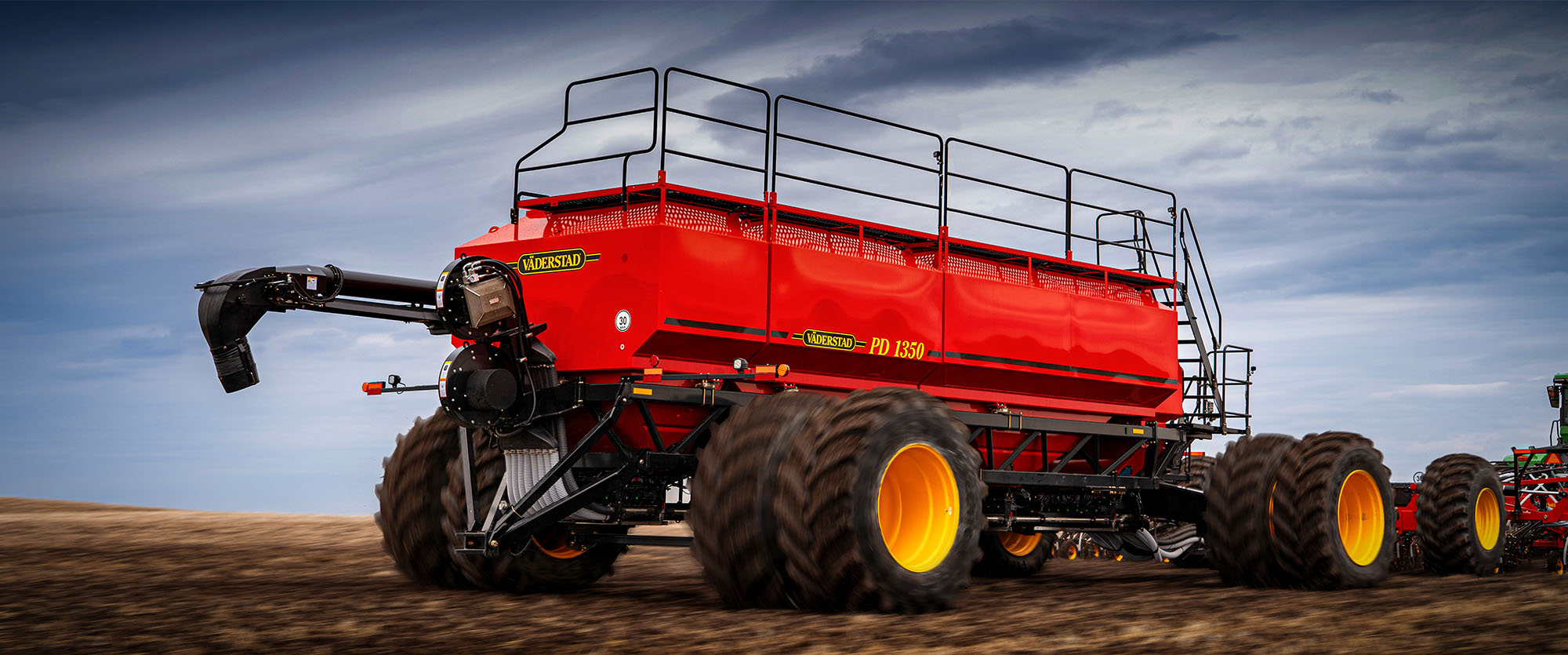

PD 1350
The PD 1350 combines capacity, flexibility, and accuracy – and is Väderstad’s largest air cart.
- 93+652+393+213 bu capacity
- Available in tow-behind (TBH) configuration
- Front axle: Dual 710/70R42 tires
- Rear axle: Dual 900/60R42 tires
Experience the Precision Delivery Air Cart

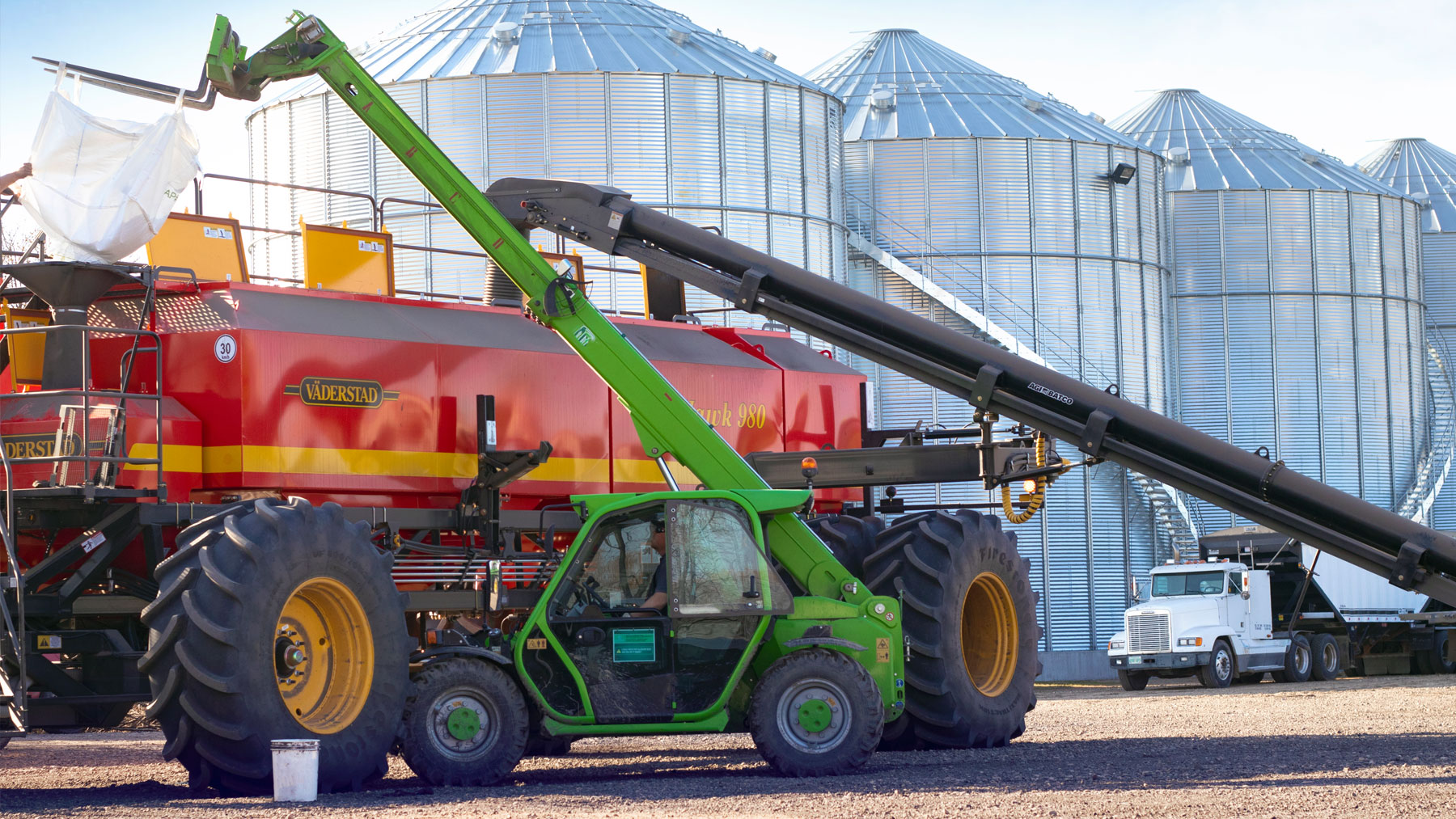

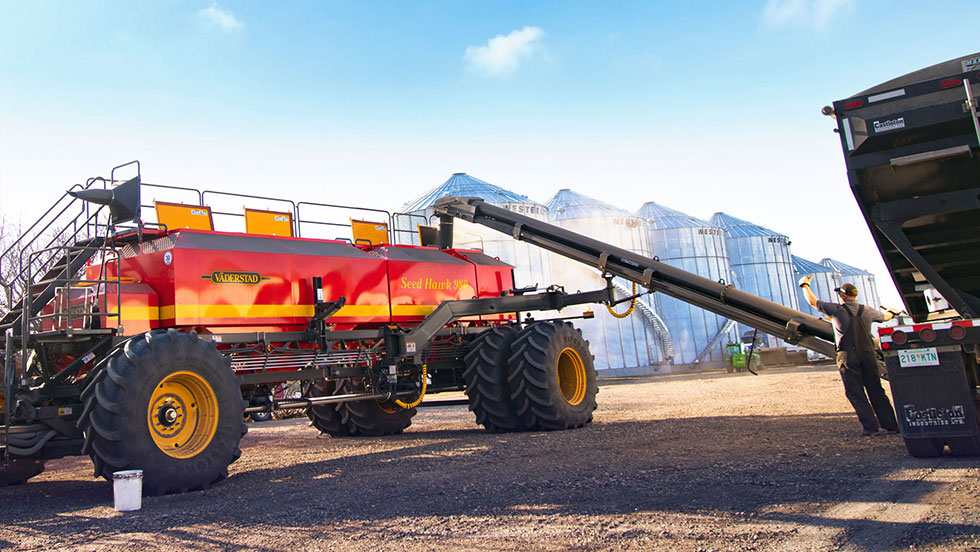

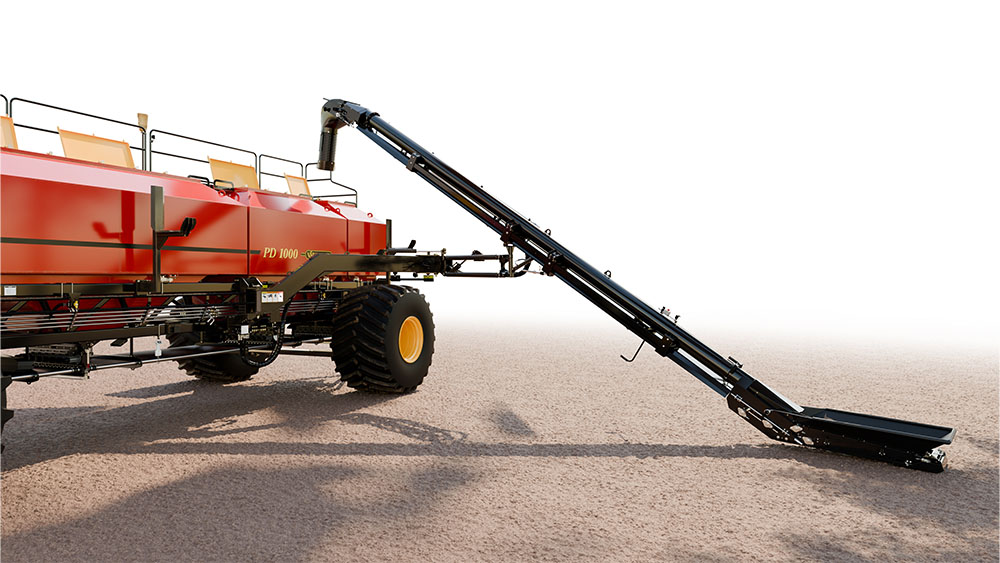

Optional Fill Systems

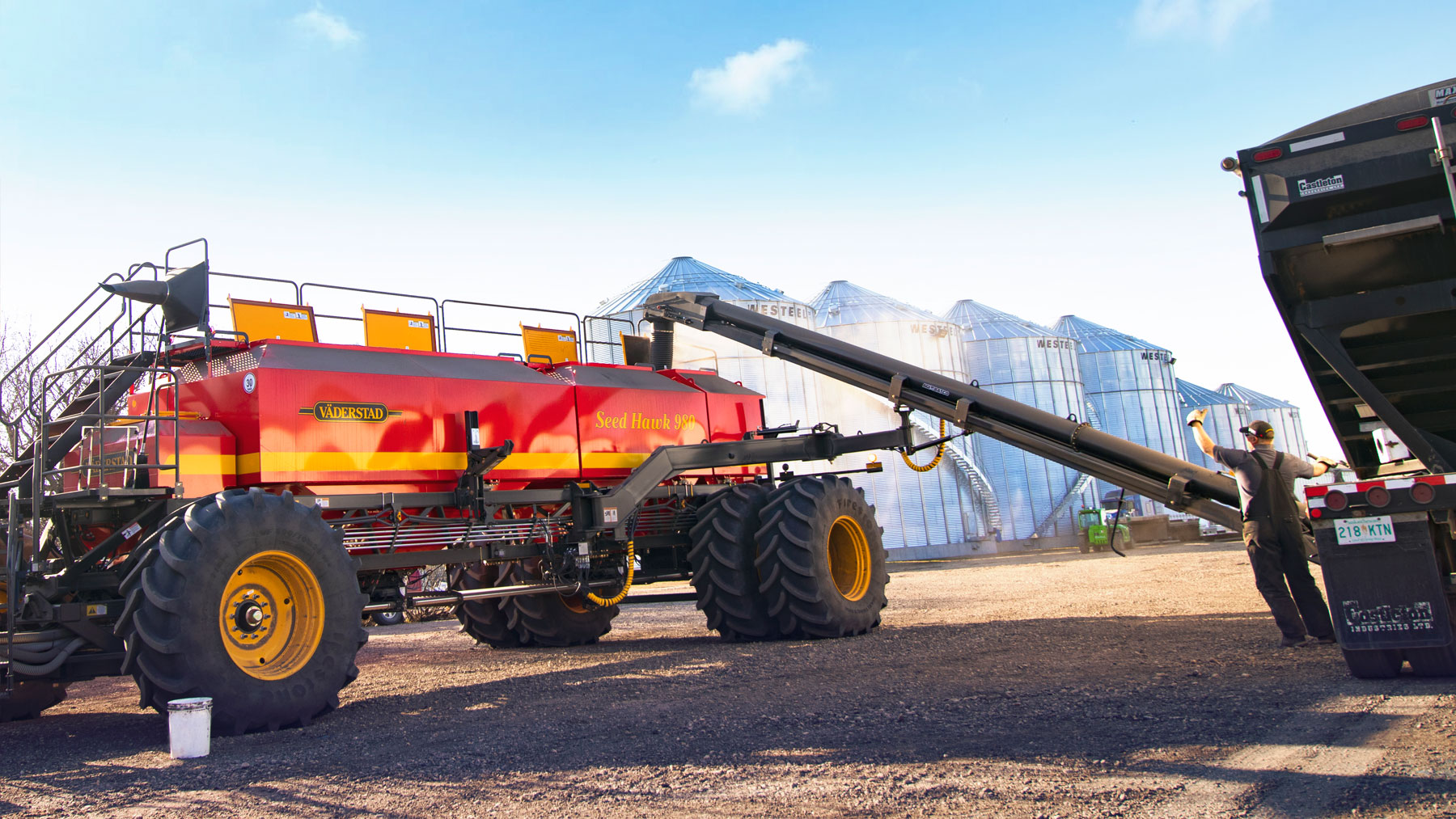

Achieving maximum productivity means making it easy to do simple things. From augers and conveyors to bag lifts, filling your cart is optimized so you can get the air cart full and back into the field, over and over again without difficulty.
-
Maximize your field time
The simple design of the Precision Delivery Air Carts allows you to spend less time in the yard and more time in the field. Easy to fill, easy to adjust and easy to clean out. Optional fill systems include conveyors, augers, bag lifts, and fill chutes.
Swipe to read more ⮕
-

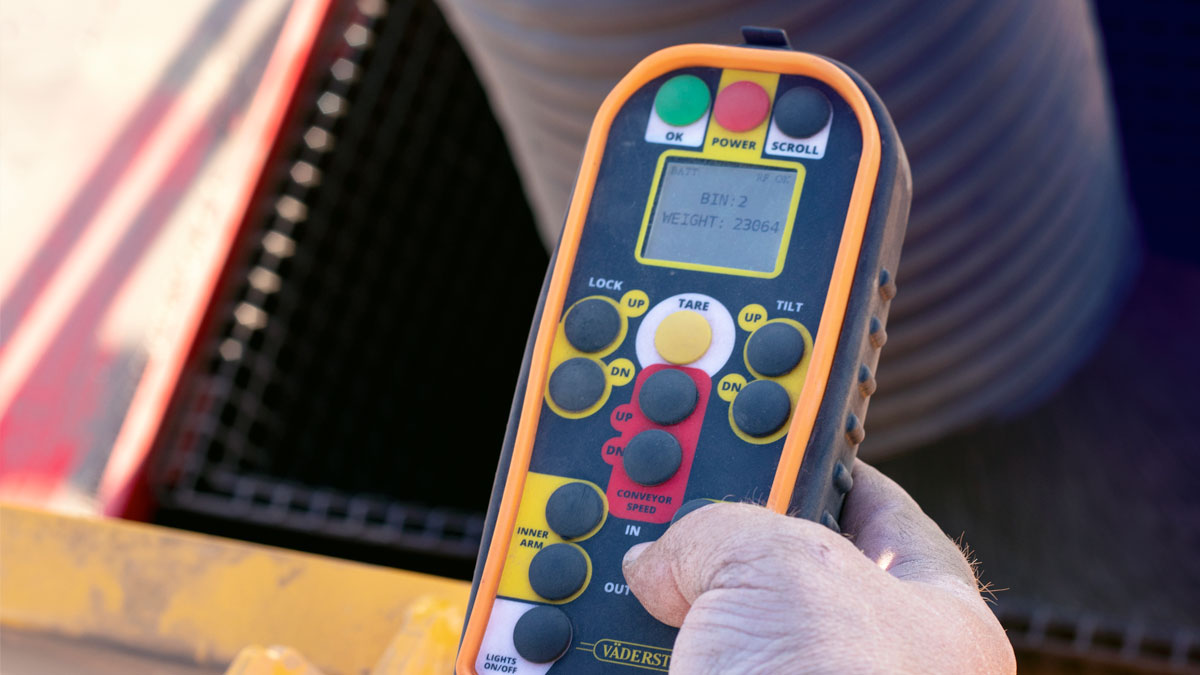

Fill System Remote
The Fill System Remote for the PD 680, PD 820, PD 100 and PD 1350 Air Carts allows for wide functionality including belt speed controls, while displaying real-time load cell values for each bin.
-

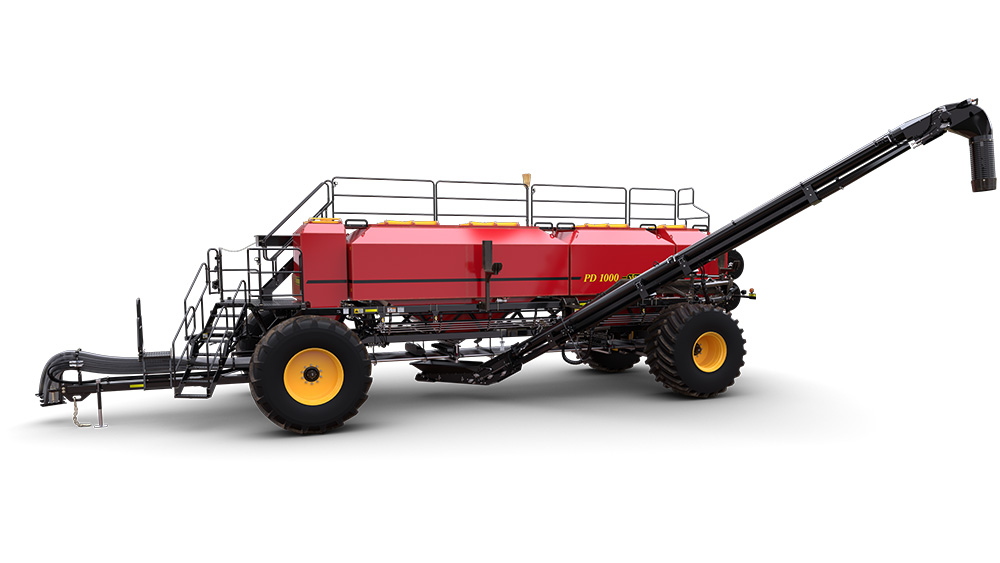

Increased flexibility and capacity
Conveyor arm mount and swivel on the 820, 1000, and 1350 Air Carts increase the range of motion. This allows the conveyor to reach under bins 1, 2, and 3 for easy unloading. Conveyor capacity has also been increased to 80-85 bu/min, depending on the product type.
-

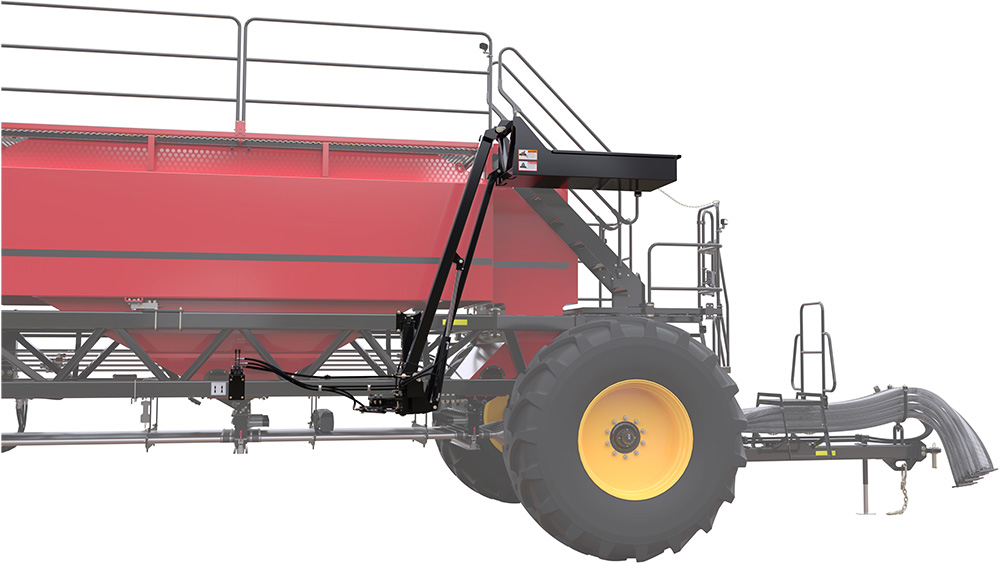

Bag Lift
The bag lift allows 10 bags of canola to be lifted from the ground to the front tank, avoiding unnecessary strain of carrying individual bags.
Fenix III on Precision Delivery Air Carts
The Fenix III metering system ensures precise seeding, resulting in evenly spaced plants that have access to the desired rate of nutrients throughout the growing season. The Fenix III on Precision Delivery Air Carts features two main enhancements that work with two different levers: a centralised airstream selection mechanism and a new housing design.
Accept Cookies to Continue
You need to accept cookies in order to view this feature. Click here to change your consent.

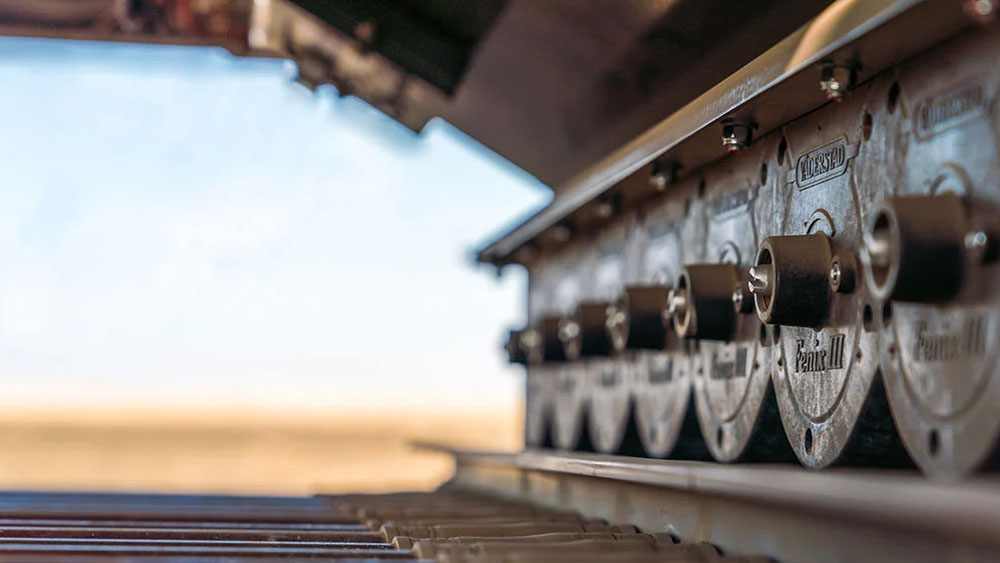

Precise seeding with Fenix III
Farming’s most advanced metering technology is engineered for exceptionally precise seeding, reliable performance and easy maintenance.
Integrated, seamless design defines the Fenix III metering system, ensuring consistent product flow. It means the motor, rollers, housing, inlets and outlets work together flawlessly – and handle products like inoculants, micronutrients and problematic seeds with ease.
Accept Cookies to Continue
You need to accept cookies in order to view this feature. Click here to change your consent.
Lever system for an efficient setup
The first lever on the Fenix III allows farmers to change the diverter plate directions simultaneously, redirecting the flow to the seeding tube or the fertiliser tube, streamlining the process significantly. The second lever opens the lower housing plate for easy access during calibration, clean out and maintenance. This feature ensures that the metering system remains in optimal condition throughout the seeding season

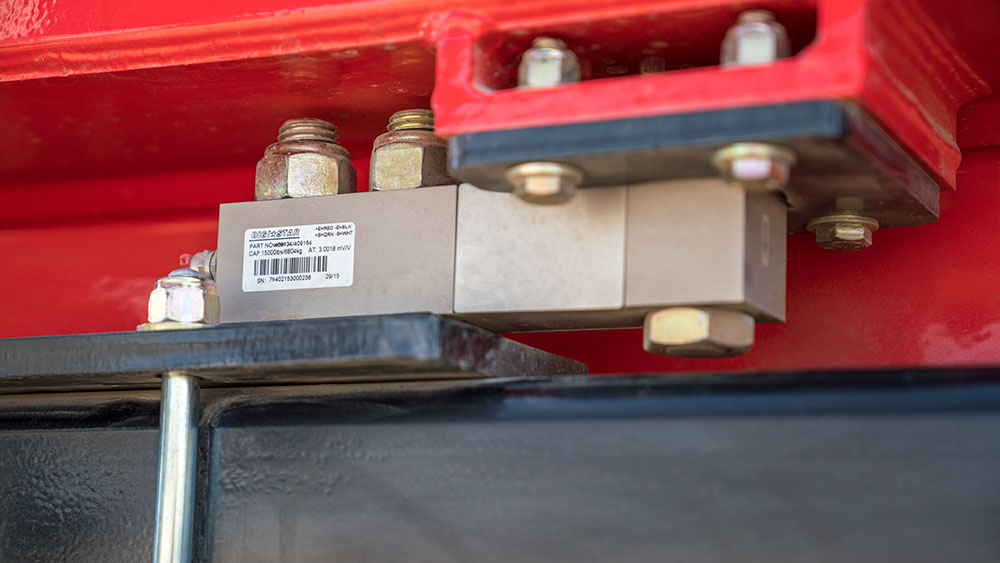

Individual bin load cells
Stopping to guess how much product you have left in the tank is a thing of the past. The modular tank design of Precision Delivery Air Carts features individual compartment load cells.
The load cells weigh each bin separately and provide real-time verification of remaining product. The iCon Wireless Control software uses the innovative Acres to Empty feature to calculate how many acres it will cover. This ensures more efficient filling times and allows you to pinpoint your required fill volume.
Innovative iCon wireless control system
The iPad-based iCon wireless control system delivers complete and easy wireless control of your Precision Delivery Air Cart and Seed Hawk Air Drill, even when you are not in the cab.
With a wide range of innovative features like Acres to Empty, In-field Calibration, and Fit to Field, the iCon Wireless Control system provides you with more detailed real-time information, more automation, more customizable data, and optimized prescription mapping.
Accept Cookies to Continue
You need to accept cookies in order to view this feature. Click here to change your consent.
Variable Rate Seeding
The amount of fertilizer and seed required to achieve desired yield will vary across the field and, most times, over the width of the toolbar. Seed Hawk’s iCon system is compatible with industry leading prescription mapping to dial in the exact amount of product desired, reducing the amount of inputs used. Each 10 feet of toolbar has its own seed and fertilizer meter to ensure greater accuracy in variable terrain.
Eliminate overlap with Sectional Control Technology™
Hydraulic brake for added control
The PD 1350 air cart comes standard with hydraulic brakes, delivering reliable braking capacity during transport and added control during seeding operations. This advanced brake system is now available for PD 820 and PD 1000 models, providing consistent performance and enhanced safety throughout the season.

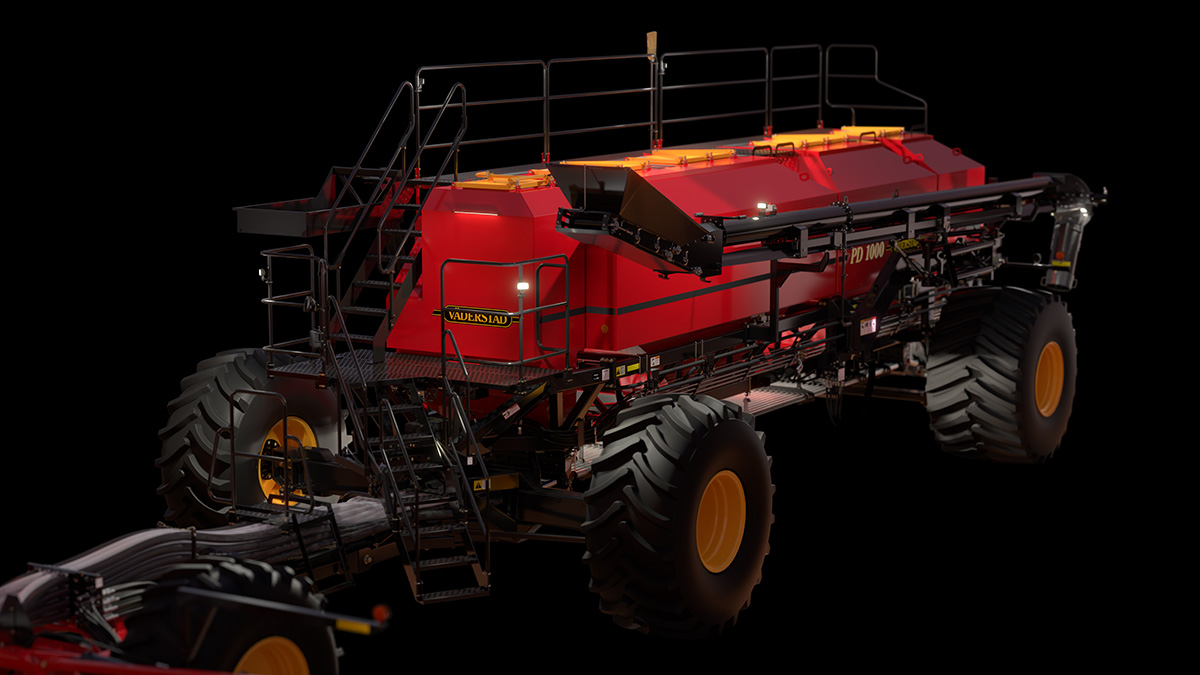

Light up your work
All Precision Delivery Air Carts come outfitted with light kits with two controllable functions.
Field lights: Perimeter lighting rearward of the cart in both TBH and TBT, as well as adjustable front mounted light for air drill in TBH configurations.
Task/Service lights: Catwalk/landing, internal bin, meter motor lighting.

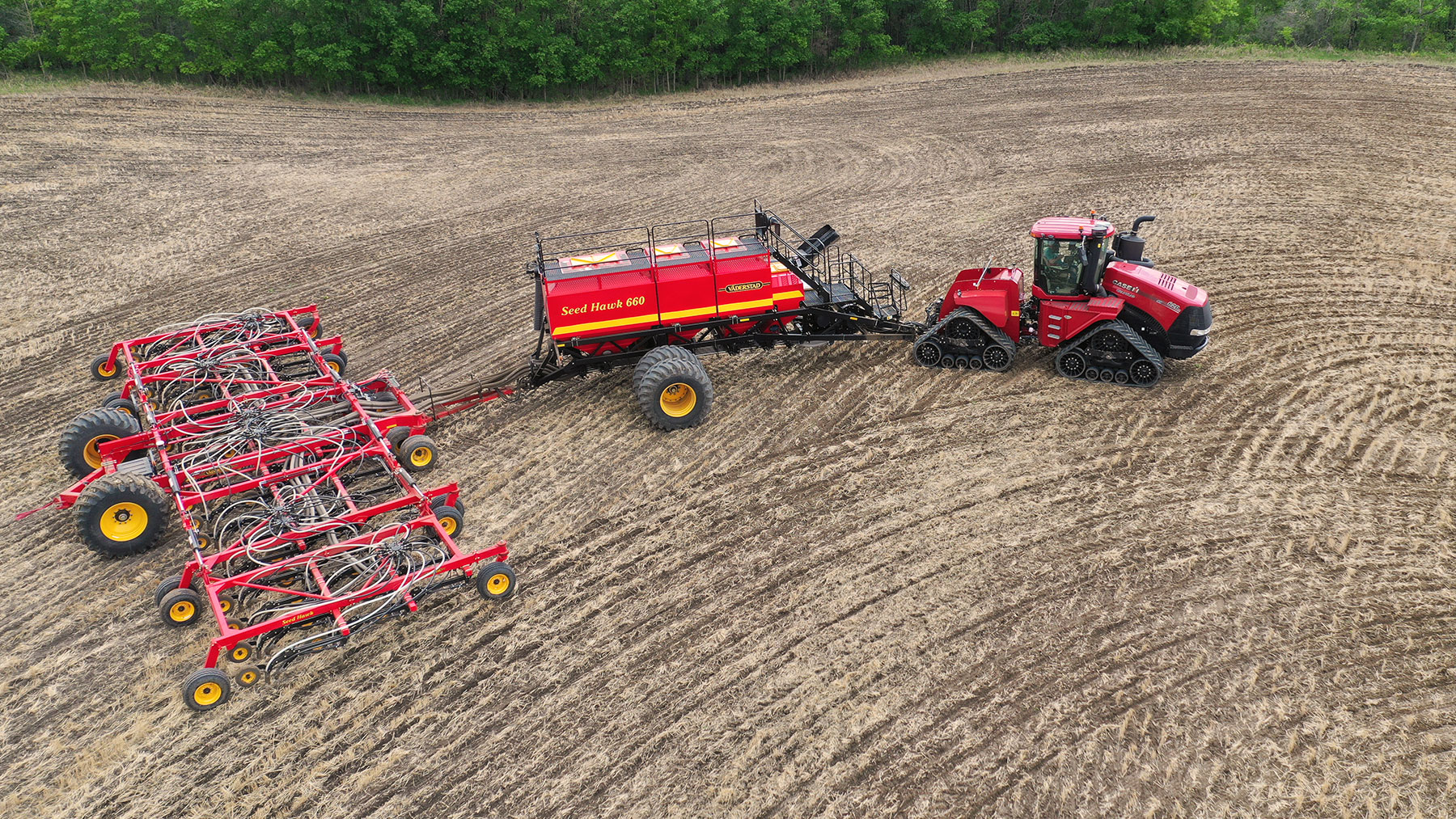

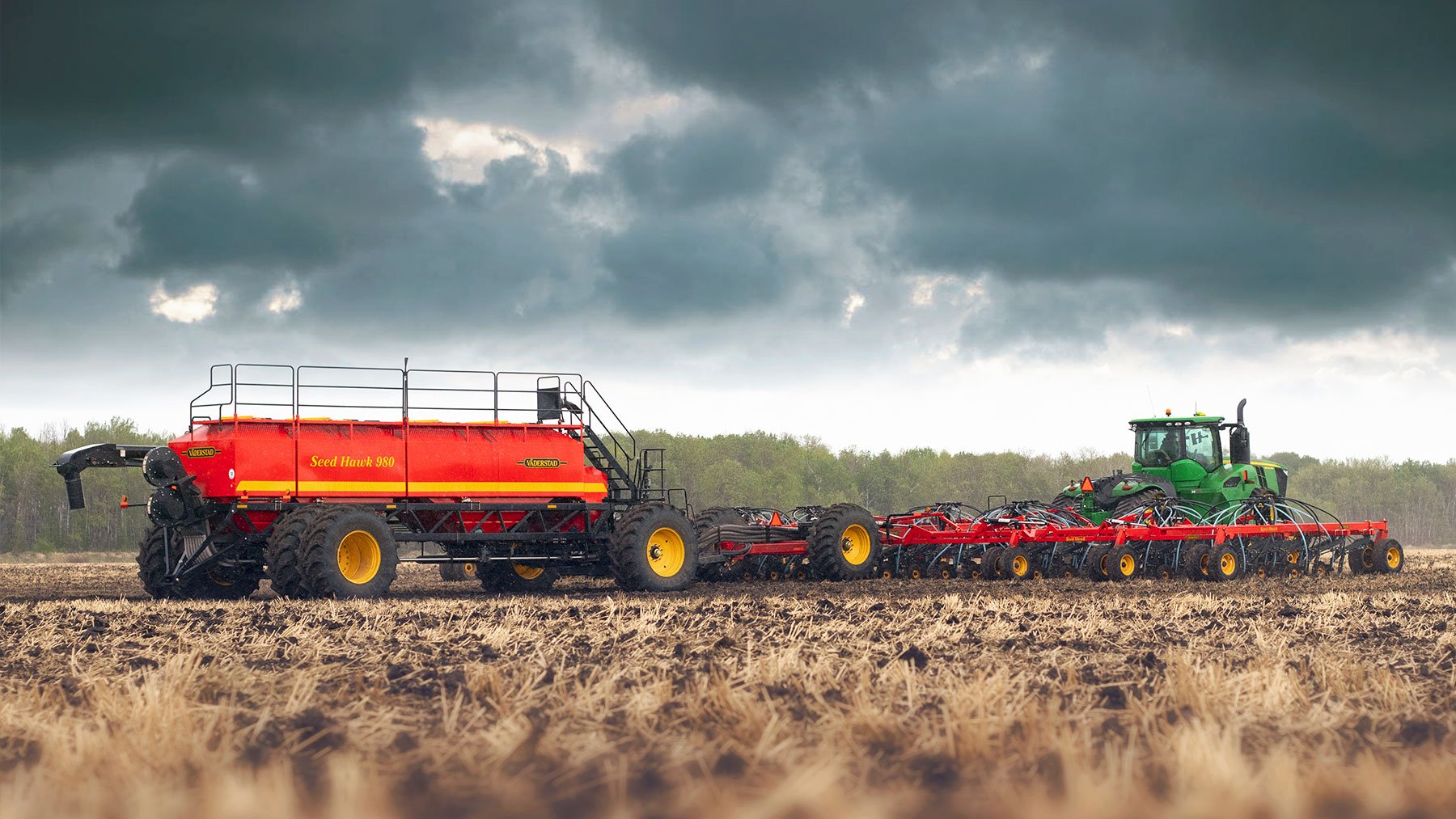

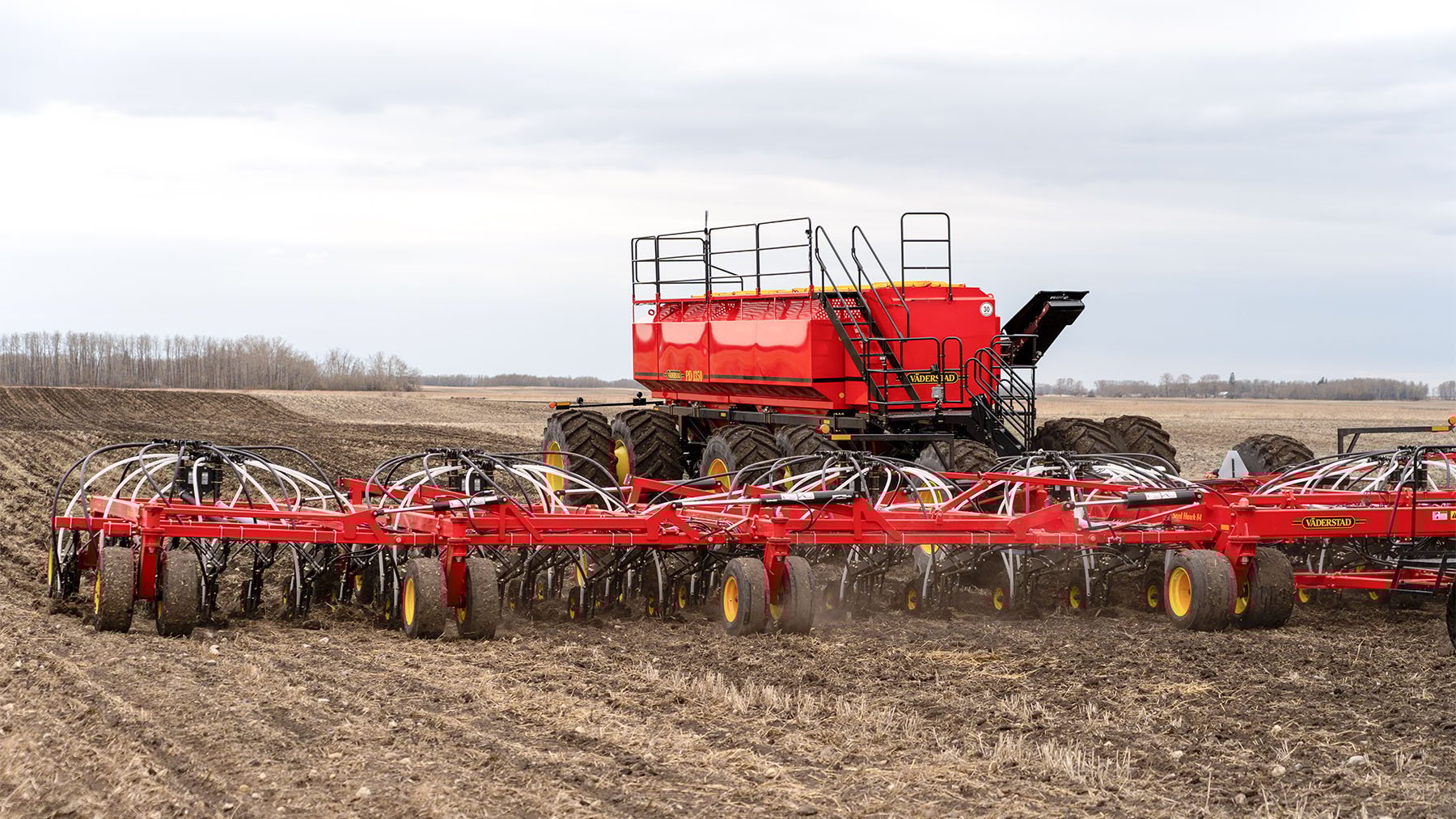

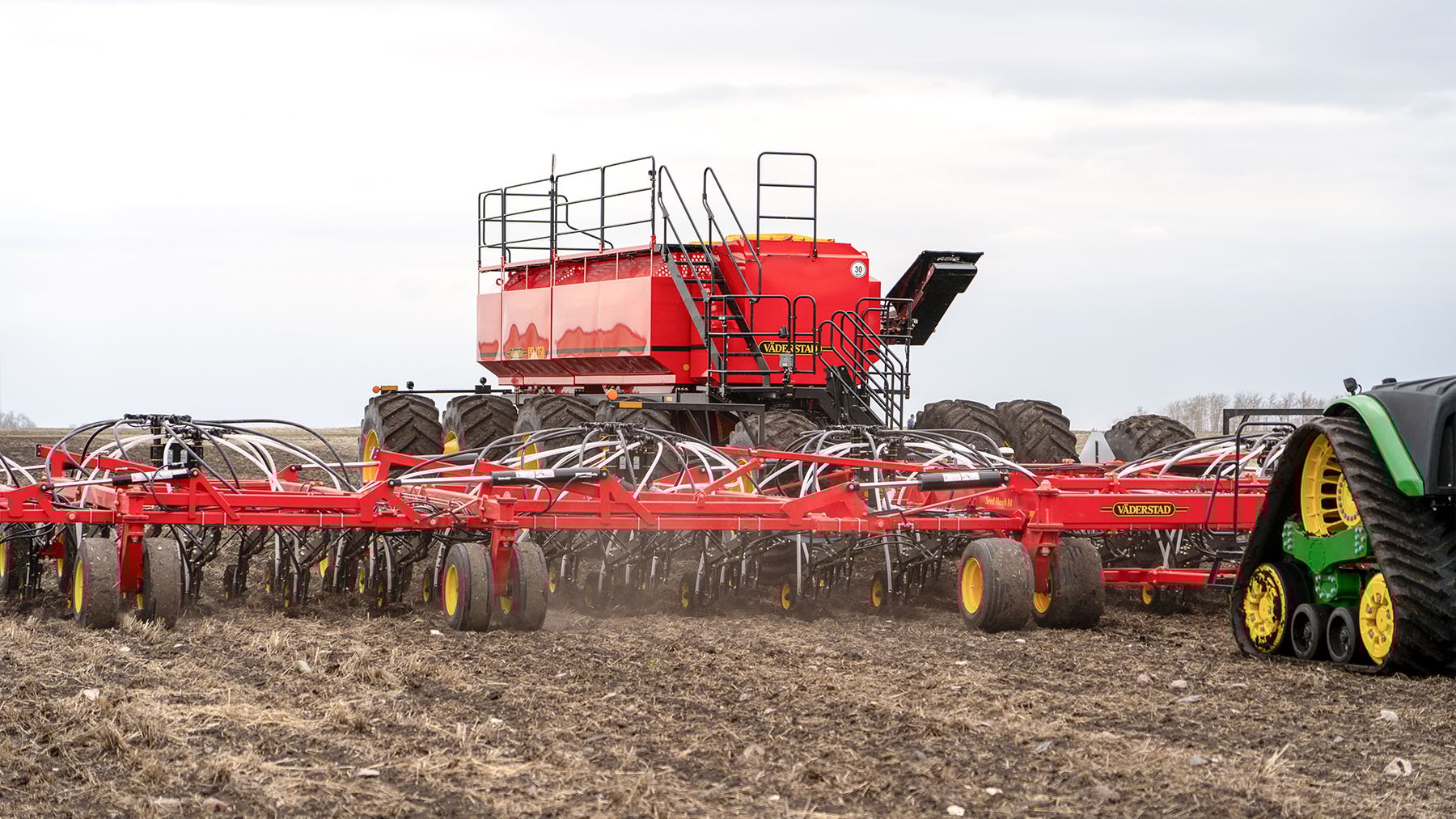

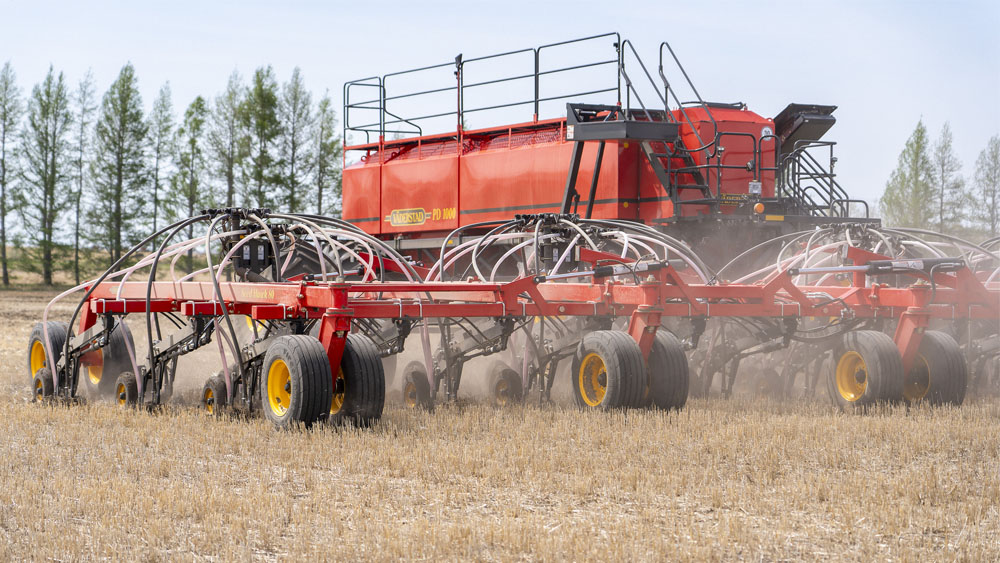

Pair with the Seed Hawk air drill
Väderstad’s Precision Delivery air carts are designed to work seamlessly with the Seed Hawk air drill. Together they combine precision, capacity and flexibility to deliver exceptional seed and fertiliser placement in one pass. The result is quick, uniform crop emergence, improved quality and higher yields for a better return on investment on your farm.
Air Cart Only Option
The new Air Cart Only option gives growers the freedom to pair Väderstad’s Precision Delivery air carts with third-party seeding implements without compromising the performance they trust. Whether it is a tine or disc drill, this configuration opens the door to more versatile seeding setups while maintaining the core design and reliability of our Precision Delivery air cart lineup. Contact our team for more information.
Image gallery
Technical data
| Precision Delivery Air Cart | 400 | 680 | 820 | 1000 | 1350 |
| Metering | Electric | Electric | Electric | Electric | Electric |
| Total volume bu (l) |
360-400 (12685-14095 l) |
680 (23200 l) | 820 (28900 l) | 1000 (35200 l) | 1350 bu (47572 l) |
| Volume Bin 1 (bu) | 40 (1410 l) | 60 (2115 l) | 60 (2115 l) | 60 (2115 l) | 93 bu (3277 l) |
| Volume Bin 2 (bu) | 120 (4230 l) | 160 (5600 l) | 300 (10600 l) | 480 (17000 l) | 652 bu (22975 l) |
| Volume Bin 3 (bu) | 150 (5285 l) | 160 (5600 l) | 300 (10600 l) | 300 (10600 l) | 393 bu (13849 l) |
| Volume Bin 4 (bu) | 90 (3170 l) | 300 (10600 l) | 160 (5600 l) | 160 (5600 l) | 213 bu (7505 l) |
| Transport width with standard tires (ft) | 11'5" (3.49 m) | 20' (6.1 m) | 18'8" (5.7 m) | 18'8" (5.7 m) | 21'10" (6.65 m) |
| Transport width with optional tires (ft) | 11'10" (3.61 m) | 18' 5" (5.6 m) | 22'4" (6.8 m) | 22'4" (6.8 m) | |
| Transport length (ft) | 29' (8.84 m) | 37' (11.28 m) | 44' (13.41 m) | 50'5" (15.38 m) | 50'6" (15.4 m) |
| Transport length with auger (ft) | 30'4" (9.25 m) | 37'4" (11.38 m) | N/A | N/A | N/A |
| Transport length with conveyor (ft) | N/A | 40'9" (12.42 m) | 47'4" (14.43 m) | 53'10" (16.41m) | 53'11" (16.43 m) |
| Transport height (ft) | 13'1" (4.0 m) | 16'2" (4.93 m) | 15' 10" (4.8 m) | 15' 10" (4.8 m) | 16'6" (5.03 m) |
| Ground clearance (in) | 18" (457 mm) | 18" (457 mm) | 17.25" (438 mm) | 17.25" (438mm) | 17.25" (438mm) |
| Configuration | TBH or TBT | TBH or TBT | TBH | TBH | TBH |
| Recommended working speed (mph) | 4.5-5 (7-8 km/h) | 4.5-5 (7-8 km/h) | 4.5-5 (7-8 km/h) | 4.5-5 (7-8 km/h) | 4.5-5 (7-8 km/h) |
Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering.
TBT = Tow-between TBH = Tow-behind
