Väderstad Disc cultivator Carrier XL 1225

Carrier XL 925-1225

Enormous depth capacity

Carrier XL 925-1225 is a trailed disc cultivator, available with 30.5' or 40' (9.25 or 12.25 m) working width. It can be fitted with 20" or 24" (510 or 610 mm) discs. The sizes of the discs make them well suited to incorporate large amounts of crop residues even at depth. The disc angle can be adjusted according to working depth. With a high working speed, it has a working capacity of up to 40 acres (16 hectares) per hour. This lowers the capital costs per acre/hectare to minimum.

Click to active 360 product spinner
Part of the Carrier concept

Carrier is a disc cultivator used for high speed primary tillage and seedbed preparation. The wide range of front tools, discs and packers enables Carrier to handle the versatile challenges of modern farming – from ultra-shallow cultivation to a deeper incorporation. The versatility it brings to the farm saves passes, decreases machine cost per acre and provides the best start possible for the coming crop.

Learn more about the Carrier concept

Selected features

Väderstad Discs allowing for increased working depth

Discs allowing for increased working depth

Carrier XL can be fitted with either 510mm or 610mm TrueCut discs. In comparison, the 510mm disc increases the space around the disc which allows for a higher throughflow. The 610mm on the other hand, enables greater working depth, which is a benefit when incorporating large amounts of crop residues, such as harvested maize stubble

Read more
Väderstad MultiSet offers versatility

MultiSet offers versatility

The adjustable MultiSet disc hubs allow the disc angle to be set to one of three positions between 11 and 17 degrees. This enables the disc aggressiveness to be adjusted to fit different working depths.

Thereby a perfect slicing can be achieved during shallow cultivation, and a good penetration can be ensured at a greater working depth.

Read more

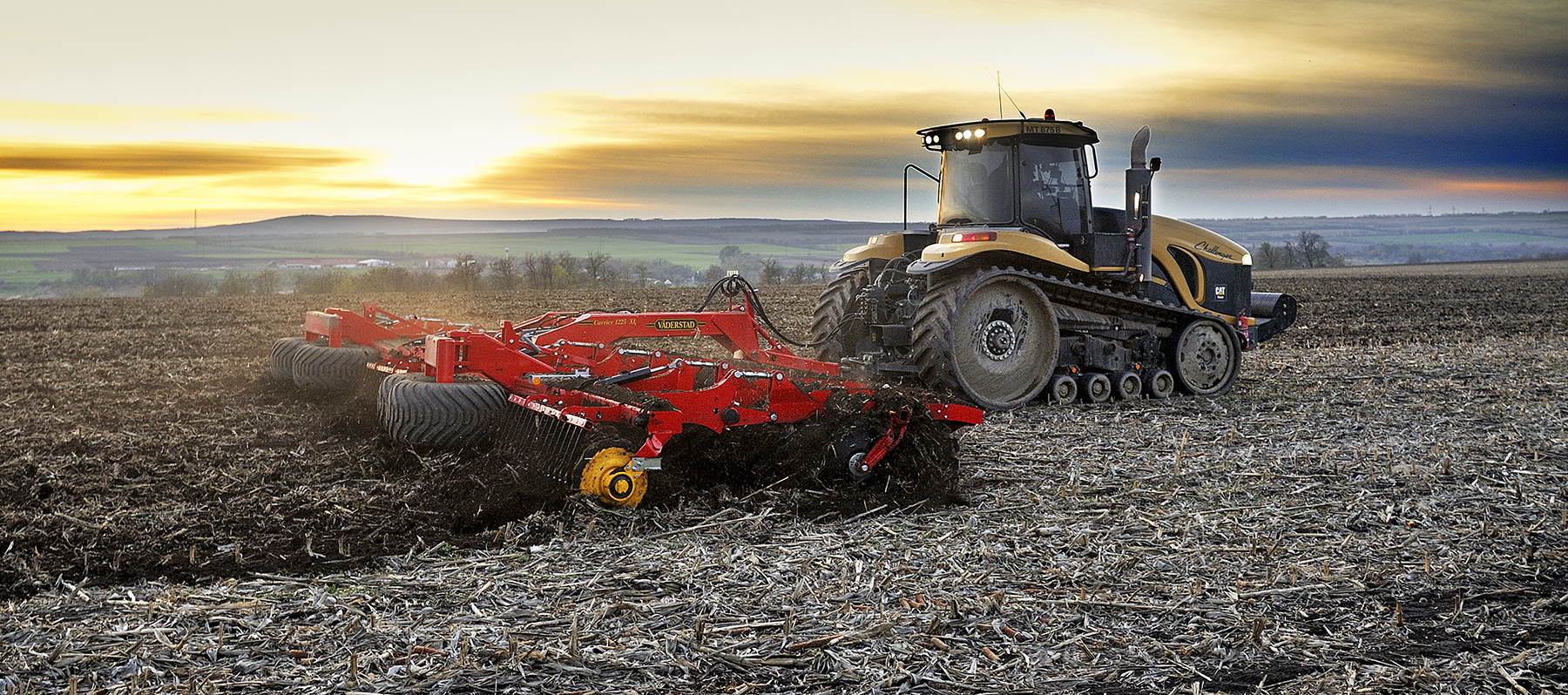

Väderstad Carrier in field
Väderstad Carrier L/XL 1225 the obvious choice for 12m CTF

The obvious choice for 12 m CTF

The large Carrier L/XL 1225 has a working width of 12.25 m, this gives a slight overlap required in a 12 m CTF-system.

Thanks to the x-disc layout, the machine will always run dead straight behind the tractor. This is essential when using GPS-control or when cultivating in hilly terrain.

Read more
Väderstad Carrier easy and safe to transport

Easy and safe to transport

Carrier L/XL 925-1225 uses the unique Väderstad folding system, giving a fast transition from field to transport. The folding technique has been designed to give the machine a low centre of gravity, resulting in safe manoeuvring.

When folded the transport width is 3 m.

Read more
Väderstad Carrier even weight distribution

Even weight – even result

Carrier L/XL 925-1225 is equipped with weight packages in the wing sections. This ensures the weight is evenly distributed across the entire working width without the need for complex hydraulic solutions.

Read more
Väderstad Disc cultivator Carrier heavy duty frame construction

Heavy duty frame – long working life

Carrier L/XL 925-1225 has an extremely robust frame, ensuring a long working life even in the toughest conditions. Its few greasing points reduces the maintenance required leading to more time in field.

Read more
Väderstad Carrier with BioDrill

BioDrill turns Carrier into a seed drill

Equipped with the mountable small seeder BioDrill 360, Carrier L/XL 925-1225 becomes a precise seed drill allowing fast establishment of small-seeded crops, such as oilseed rape and cover crops.

The integrated ground radar provides perfect speed detection. Additionally, the high fan capacity ensures an equal distribution over the entire working width, irrespective of seed size.

BioDrill results in reduced operating costs and time saved.

Read more

Product concept

Zone 1 - Intensive cutting and mixing

Two rows of high quality V-55 hardened Swedish steel discs aggressively cuts and mixes harvest residues down to 16cm working depth. The conical shape of the discs ensures a long working life and good crumbling of the soil.

TrueCut 510mm discs

TrueCut 610mm discs

Zone 2 - Reconsolidation

Carrier can be equipped with packers suitable for a wide range of field conditions. The rubber suspension on the packer absorbs shocks and extends the working life of the frame and the packer.

Single SteelRunner

Technical data

Carrier XL 925 1225
Effective working width (m) 9,15 12,15
Packer width (m) 9,25 12,25
Transport width (m) 3 3
Transport height (m) 4 4
Weight with single SteelRunner (kg) 10400 13100
Number of discs 76+1 100+1
Disc spacing (cm) 25 25
Disc angle 12-19 12-19
Brakes H/P H/P
Recommended working speed (km/h) 10-14 10-14
Wheel dimension (transport wheels)  400/60-15.5 520/50-17
Wheel dimension (transport wheels) option 520/50-17 N/A
Hydraulic requirements (DA) 2 2
Draught requirements from (hp) 340 400
Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering.

LS = Load sensing    FR = Free return     DA = Double acting
H = Hydraulic    P = Pneumatic    N/A = Not available
