Spirit 600-900S

Maximum drilling output

The pneumatic seed drill Spirit 600-900S is available in 20', 26' or 30' (6, 8 or 9 metre) working widths. It is a universal seed drill for high capacity drilling in conventional and minimum tillage. Spirit 600-900S is equipped with innovative solutions that increases the precision and simplifies the operations at the farm.

Click to active 360 product spinner
Part of the Spirit concept

The pneumatic seed drill Spirit carries out levelling, seedbed preparation, reconsolidation, seeding and pressing in one pass. It is known to provide impressive precision at high working speeds on the field. Thanks to the individual row depth control, Spirit always places the seed at the intended seeding depth. You benefit from an even emergence over the entire field.

Learn more about the Spirit concept

Selected features

Väderstad seed metering Fenix II

Seed metering with high precision

Spirit 600-900S is equipped with the high precision metering system Fenix II that provides a constant and reliable seed metering. The strong motor permits high seed rates at high speed.

Additionally, the integrated fan runs at low speed, resulting in minimized fuel consumption and quiet operation. Its high location reduces the dust intake, thereby increasing drilling accuracy.

Read more
Väderstad Spirit - large hopper with great access

Large hopper with great access

To minimise downtime in the field, Spirit has a high capacity 3900 litre seed hopper. The hopper is very easy to fill due to its large opening with a roll-up cover operated from the ground.

With two platforms and an open machine design, you benefit from good access to all components throughout the machine.

Read more
Showing the active seed coulter pressure

Active coulter pressure

To ensure an even seed depth also in hilly terrain and at varying soil types, Spirit 600-900S is equipped with an active seed coulter pressure.

Sensors in the hydraulic system immediately registers if Spirit is located on a crest or a trough. If so, automatic valves directly compensates for an increased or decreased pressure. Thereby the seed coulter pressure is kept at a constant pre-set value, irrespective of which working angle the seed coulters are in, relative to the rest of the machine.

The result is an impressive seed placement and an even emergence over the entire field.

Read more

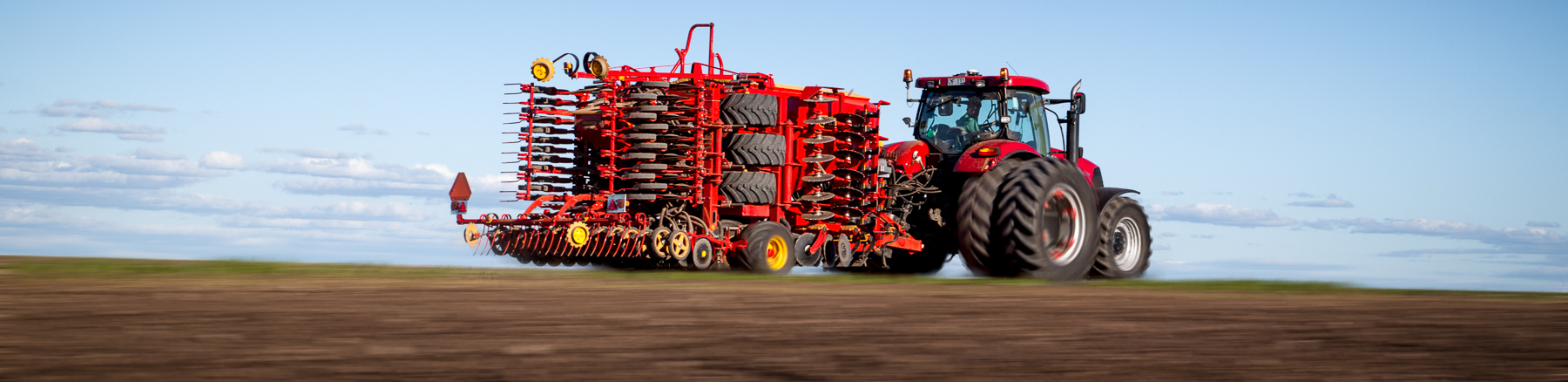

Väderstad Spirit in transport
Spirit - Always right distribution

Always the correct distribution

The distributor heads are placed in a high position. This keeps the seed hoses at the perfect angle even in hilly terrain, this ensures a perfect distribution over the entire working width.

Read more

You need to accept cookies in order to view this feature. Click here to change your consent.

Automatic headland management

When lifting or lowering the seed drill at the headland, the automatic sequence control lifts or lowers the working zones one by one. When entering the field the system makes sure the front tool is lowered into the soil before the seed coulters and the following harrow.

By optimising this automatic lifting and lowering sequence, the seeding accuracy is enhanced at the headlands.

This system makes it possible to drill the headland first, without disrupting the result when drilling the rest of the field.

Read more

Half machine shut-off

The seed is metered out via two distributor heads, this enables the driver to conduct half machine shut-off directly from the driver seat, optimising tramlining without double seeding.

On irregular fields, this section shut-off offers great opportunities for extra savings.

Farmers who regularly use half machine shut-off appreciate the fact that they can save up to 5 % seed and fertiliser, at the same time allowing the crop the best start possible.

Read more

You need to accept cookies in order to view this feature. Click here to change your consent.

Full control with Väderstad SeedEye

Väderstad SeedEye is a unique system for seed counting and seed monitoring. With SeedEye farmers can easily set the number of seeds per square metre, without the need for calibration. SeedEye ensures excellent seeding results with full control.

Read more
Easy-to-use tramlining

Easy-to-use tramlining

The dynamic tramlining function makes tramlining simpler and more reliable than ever before. The function is easy to setup with the iPad-based control system Väderstad E-Control. When seeding the field, the seed drill automatically shuts off specific rows when needed to match the tire tracks of the sprayer.

Read more
Väderstad top modern control system with iPad

Modern control system

Spirit is equipped with the iPad-based control system Väderstad E-Control.

In addition to an extensive control and monitoring of the seeding process, the control system offers the possibility to adjust the working depth of the front tool, the seed coulters as well as the hydraulic following harrow, while driving on the field.

User-friendliness, cost-effectiveness and an easy to update system are some of the major advantages.

Read more
Väderstad Spirit saves passes with BioDrill

Save passes with BioDrill

By equipping Spirit 600-900S with the mountable small seeder BioDrill, a small seeded crop such as cover crops or ley, can be drilled together with the main crop.

The spreader plates distribute the seed evenly in front of the drill aggregates, where it is covered by the flow of soil around the seed discs and by the press wheel.

BioDrill provides an accurate seeding at the same time as saving passes on the field.

Read more

You need to accept cookies in order to view this feature. Click here to change your consent.

QuickStart videos

Learn more

Product concept

Zone 1 - Seedbed preparation

Depending on the front tools, Spirit can be adapted to varying conditions. The working depth and intensity of the front tools can be easily adjusted from the tractor cab.

CrossBoard Heavy

System Disc Aggressive

CrossBoard Heavy System Disc Aggressive

Track eradicators

Zone 2 - Consolidation

To ensure a firm seedbed prior to seed placement, large packer wheels consolidates the soil between the front tool and seed coulters. This offers great advantages in lighter soil, as well as in fields where the soil is loose as an effect of a deep cultivation or a cultivation with insufficient reconsolidation.

Zone 3 - Seed placement

Spirit has 380mm large discs for high speed accuracy. The OffSet discs move the soil to the side and place the seed in the bottom of the seed furrow. The soil falls back behind the discs and covers the seed with fine soil. The seed coulter pressure is up to 80kg to ensure a good penetration. The unique TriForce rubber suspension gives a supreme ability to follow ground contour.

Zone 4 - Reconsolidation

Each individual seed coulter has a wide coulter press wheel. This allows the seed coulters to respond to any irregularities or soil variations on the field, thereby ensuring the working depth is constantly maintained. The generous diameter of the coulter press wheel, further results in a smooth ride with minimal impacts from vibrations, thereby increasing precision at high speed.

Zone 5 - Finishing

The following harrow is positioned to run in-between the seed rows, so there is no risk of disturbing shallow-drilled seeds.The following harrow creates a loose evaporation barrier to preserve moisture and prevents capping after heavy rain.

Following harrow Light

Following harrow Heavy

Technical data

Spirit 600S 800S 900S
Metering Electric Electric Electric
Working width (m) 6,0 8,0 9,0
Transport width (m) 3,0 3,0 3,0
Transport height (m) 2,8 3,85 4,0
Transport length (m) 8,2 8,2 8,2
Basic weight (kg) 5700 6800 7200
Volume seed hopper (l) 3740/3900 * 3900 3900
Number of seed coulters * 36/48 64/48 72/54
Row spacing seed (mm) 167/125 167/125 167/125
Number of fertiliser coulters  N/A  N/A  N/A
Row spacing fertiliser (mm)  N/A  N/A  N/A
Seed coulter pressure max (kg) 80 80 80
Seed disc diameter (mm) 380 380 380
Brakes H/P H/P H/P
Recommended working speed (km/h) 8-14 8-14 8-14
Wheel dimension (transport wheels) 400/55x15,5 400/55x15,5 400/55x15,5
Hydraulic requirement 4 DA + FR 4 DA + FR 4 DA + FR
Draught requirement from (hp) 140 180 200
Oil capacity for hydraulic fan (l/min) 40 40 40
Väderstad has made every attempt to accurately portray our product lineup. However, due to our commitment to continually innovate our technologies to provide our customers the best possible products, some products may not be manufactured as shown on this site. Exact specifications for each product will be confirmed at the time of ordering.

LS = Load sensing    FR = Free return    DA = Double acting
H = Hydraulic    P = Pneumatic    N/A = Not available

* Depending on row spacing - 167/125mm
