Fenix III seed meter
Väderstad Fenix III - precise seed metering
The unique Väderstad Fenix III seed metering system is engineered for exceptionally precise seeding, reliable performance and easy maintenance, year after year.
Precision in detail
An integrated, seamless design ensures the consistent flow of all products. The motor, rollers, housing, inlets, and outlets work together flawlessly. This design ensures the meter can handle difficult products such as inoculants, micro nutrients, and problematic seeds.

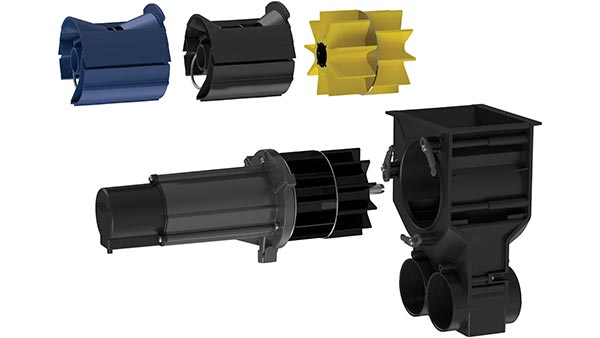

A high torque 40-watt motor drives constant product flow, and four unique roller designs make it possible to meter a wide range of seed and products at a variety of rates.
OffSet for even product flow

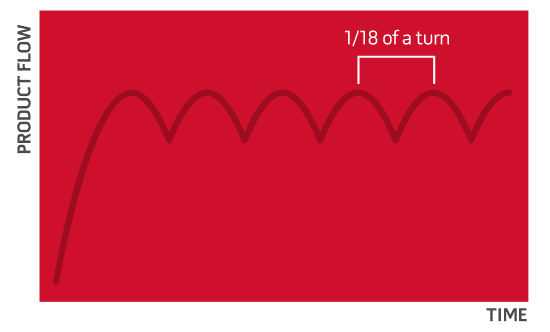

OffSet roller flutes and an angled outlet ensure smooth, constant product flow. Fenix III rollers do not fill across the entire width of the inlet at the same time. Instead, they alternate feeding from one side of the roller to the other. By angling the meter outlet, the product is channelled. The centre releases first, then the side.
Jamming is prevented by a unique levelling lip at the top of the meter housing. The lip works in conjunction with the flexible roller flutes, ensuring a consistent rate of delivery.
Fenix III OffSet rollers eliminate pulsing of products through the meters, prevent jamming and ensure even seeding rates.

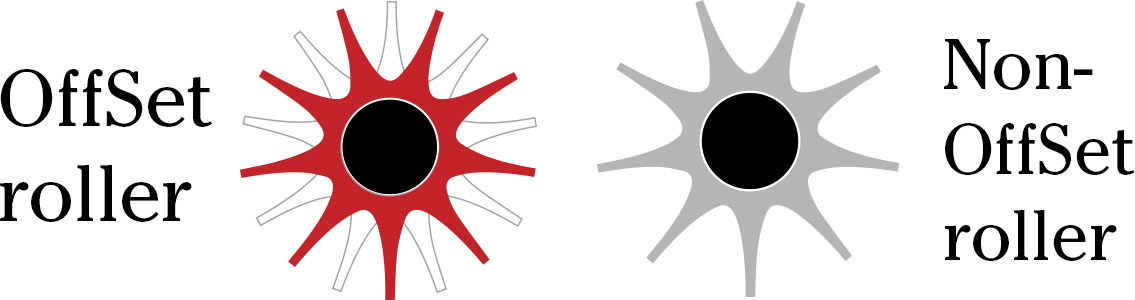

OffSet rollers vs. non-OffSet rollers
OffSet roller
Accept Cookies to Continue
You need to accept cookies in order to view this feature. Click here to change your consent.
Non-OffSet roller
Accept Cookies to Continue
You need to accept cookies in order to view this feature. Click here to change your consent.
Reliable metering

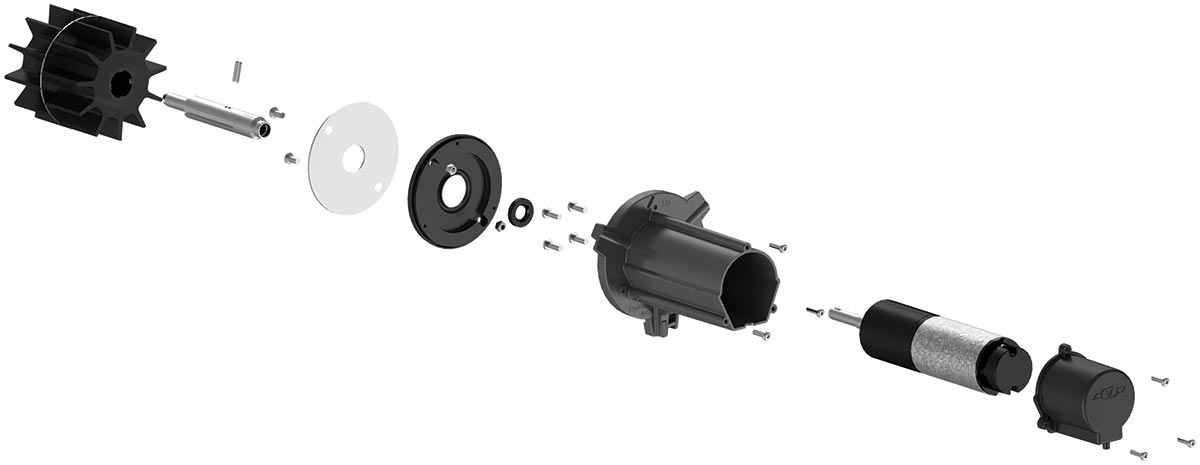

A gearbox with a 64:1 reduction allows the Fenix III to run at lower RPMs and seed at a wide range of rates. Placing the motor outside the meter housing prevents product contamination. Driving the meter with a high torque 40-watt motor ensures consistent seeding without jamming.
Machining the central shaft on both sides prevents wear and increase shaft and roller life. Polyurethane rollers increase flexibility and ensure durability.
Robust and durable

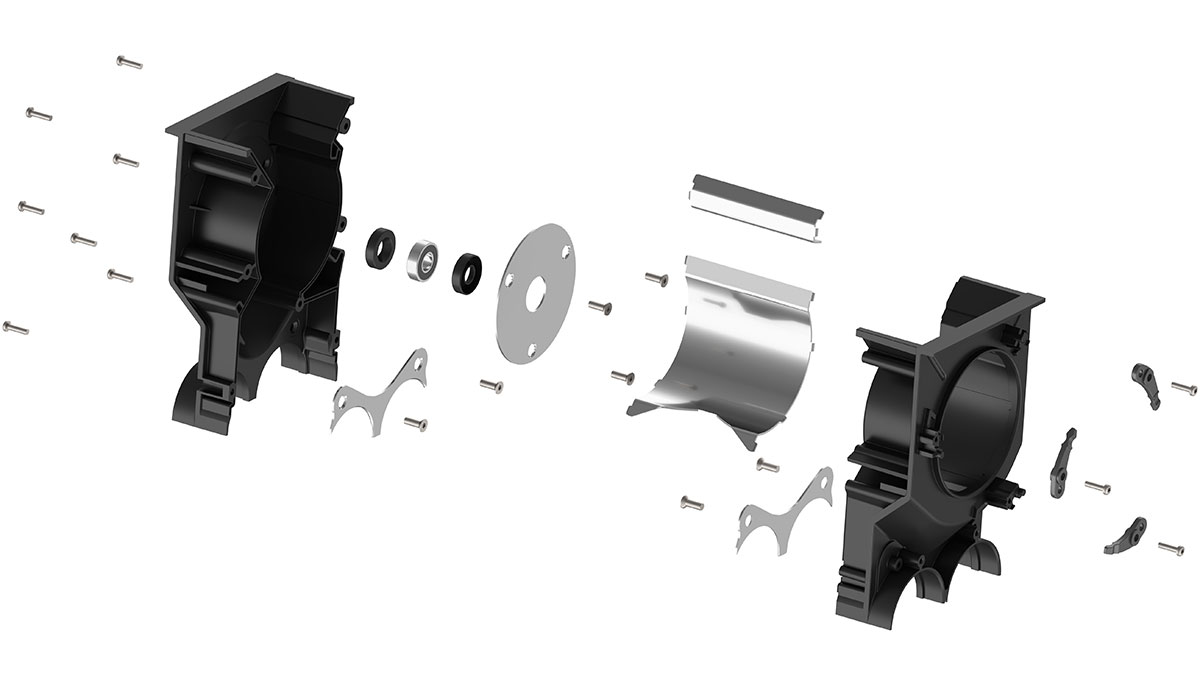

Stainless steel lining on the rear wall and feed side of the meter housing ensure a robust, durable meter able to withstand a wide variety of abrasive products. Securing the central shaft inside the meter housing and inside the gearbox with stainless steel bearings keeps the shaft secure and stable as the roller rotates. The bearing inside the meter housing is double sealed against wear and contamination.
Simple operation
The motors are easy to remove and can be quickly reinserted into the housing. The rollers are also quick and easy to remove and replace. Machined motor shafts ensure that rollers can only be installed in the correct direction.
Cleaning is easy, thanks to an anti-static polymer construction and stainless-steel lining. With only a few parts and no grease zerks, maintenance is simple.
Four reasons to choose Genuine Parts from Väderstad
Original parts for a perfect fit
Specifically designed for Väderstad machines, our parts guarantee a perfect fit and excellent agronomic properties.
Built to last
Väderstad wear parts are engineered to withstand the rigours of farming, delivering outstanding performance and longevity.
Superior quality and economy
Experience the difference in quality and economy with Väderstad's commitment to excellence in every detail.
Lowest cost per hectare
Our high-quality, durable wear parts ensure optimal equipment performance, reducing overall costs.
Fenix II seed meter: Precision at high capacity
Fenix II was developed to be a new generation electric metering unit with a wide range of operational speeds allowing for many types of seeds. Another important aspect is the even product flow eliminating pulsing and thereby improving the drilling results in the field.
