4-7m
30cm
>170hp
27cm

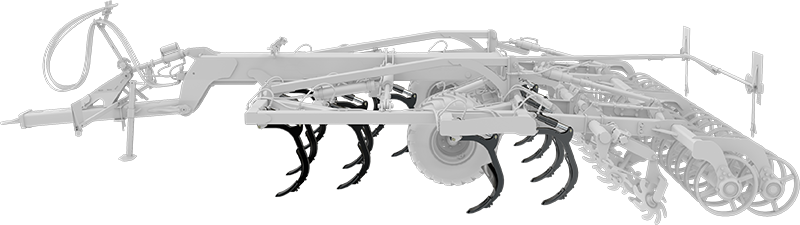

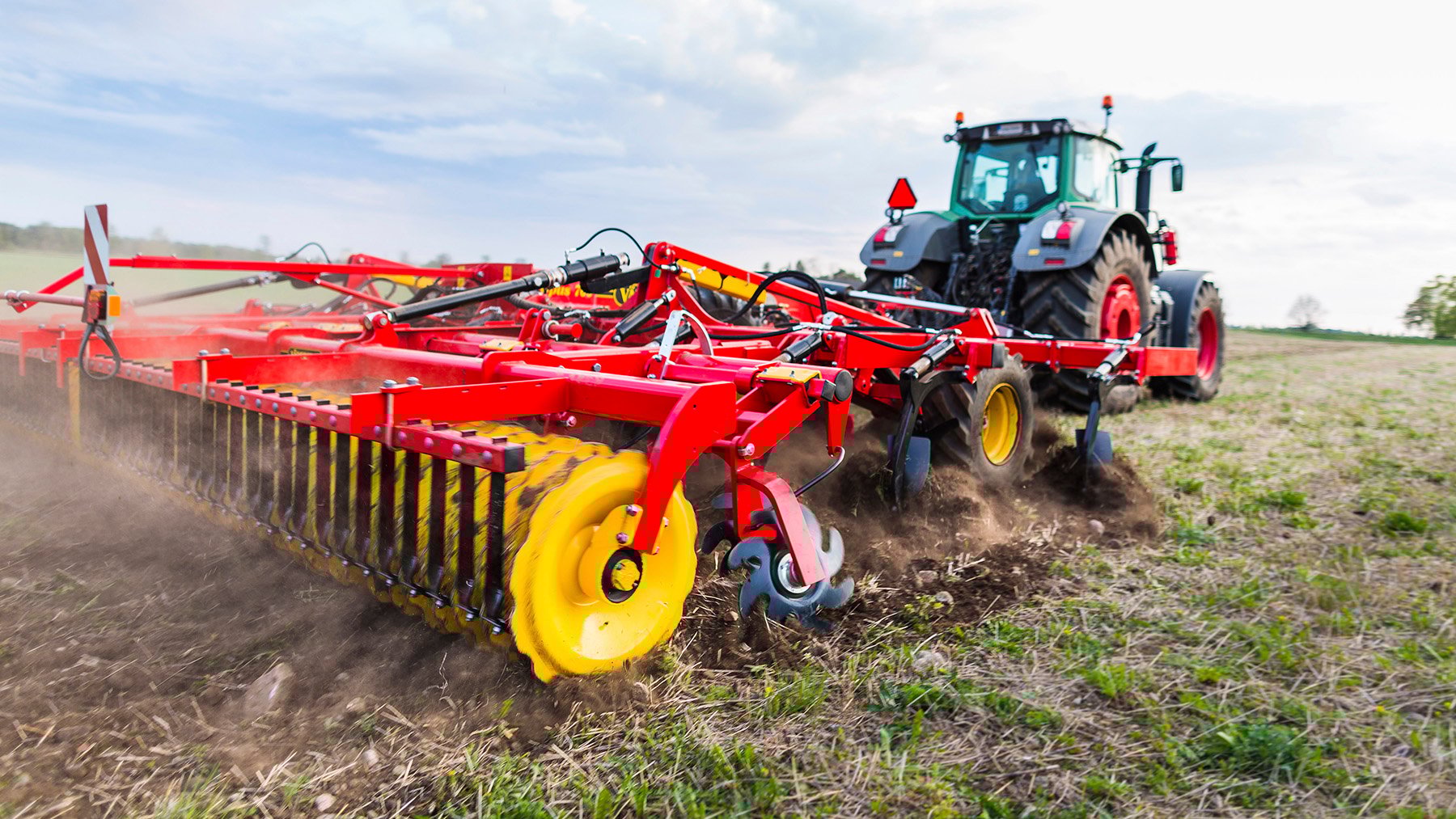

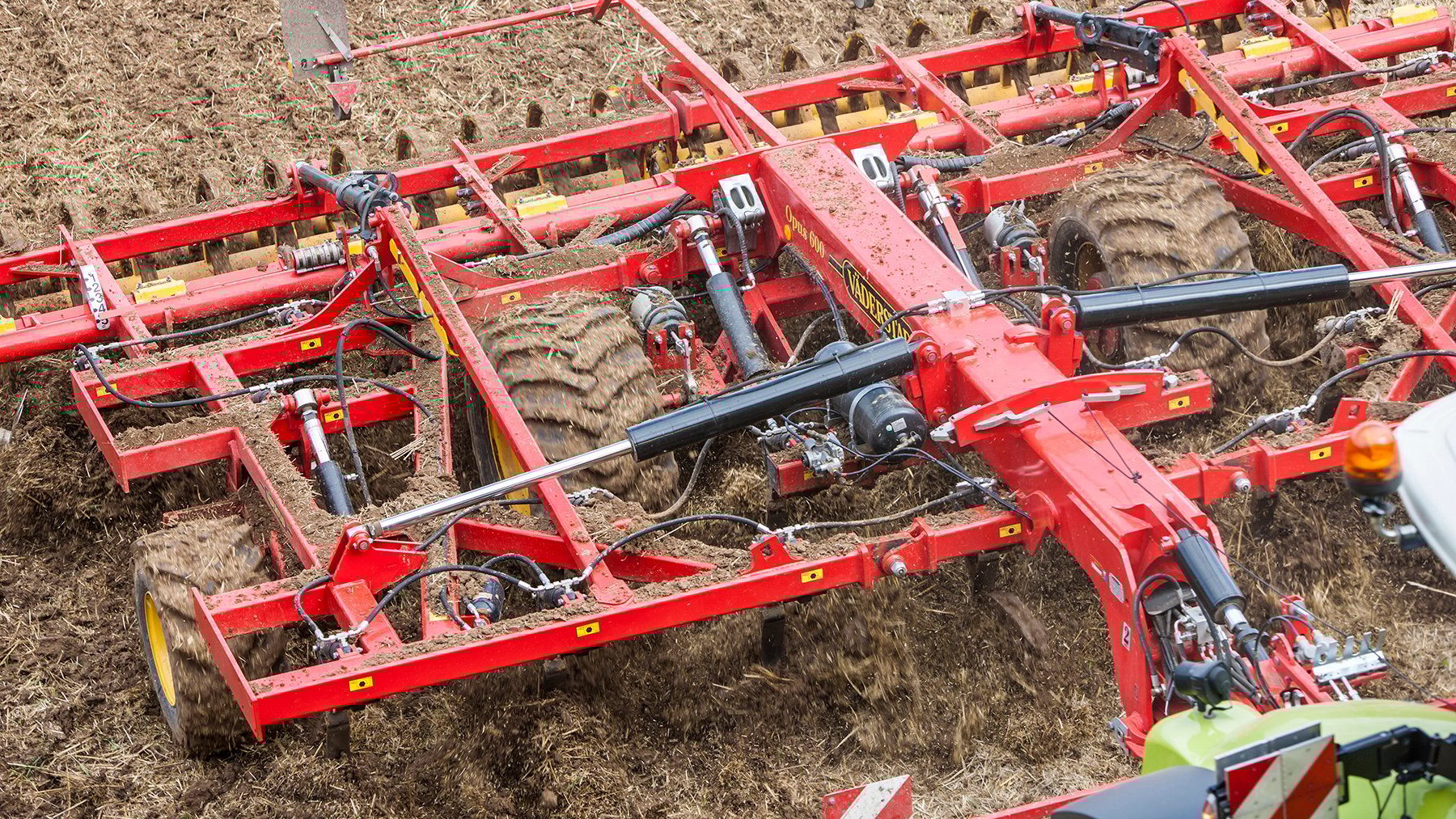

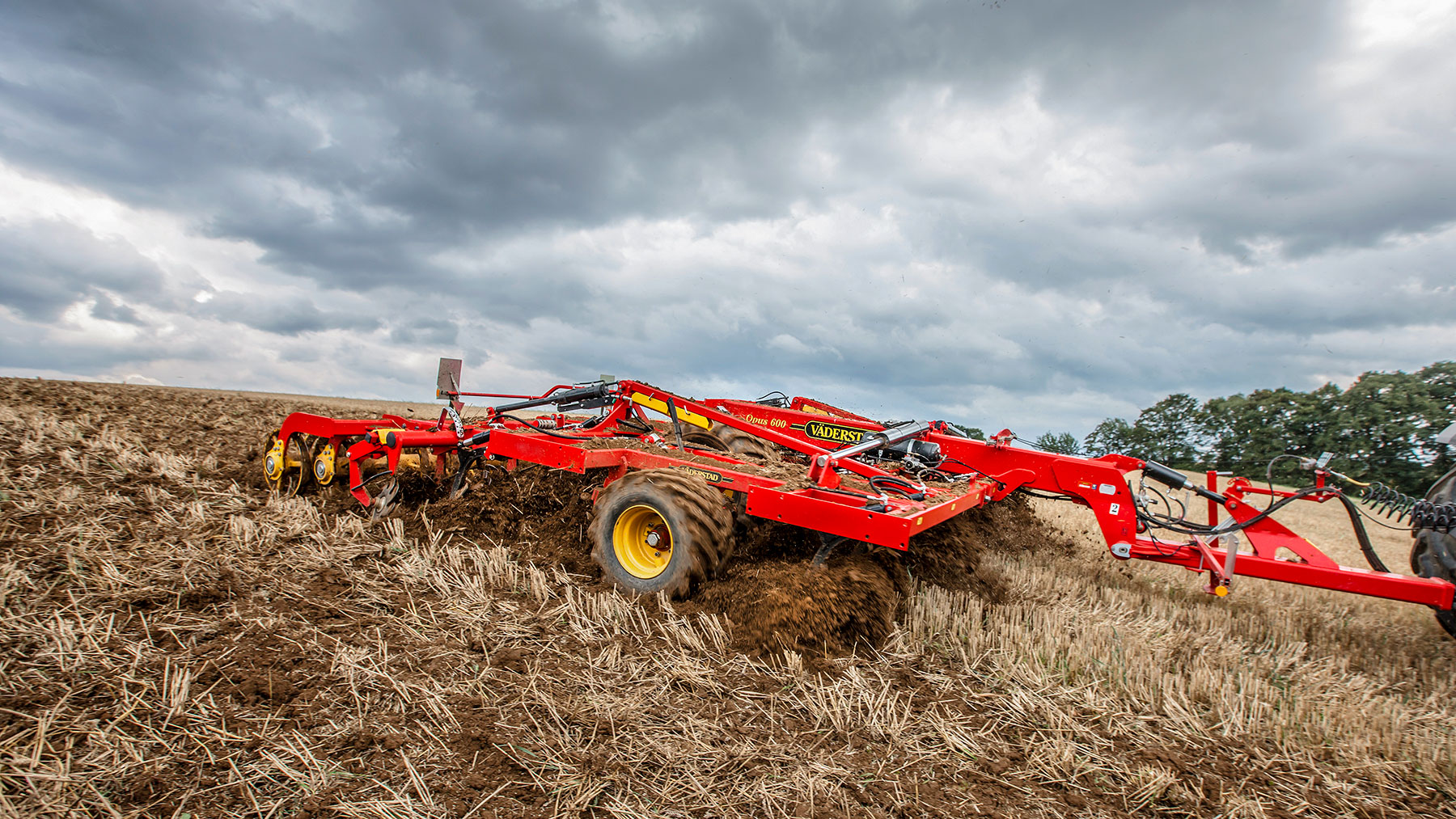

The trailed powerful tine cultivator Opus 400-700 is designed to create an intense mixing and loosening down to 30cm working depth. Opus is a powerful and versatile tine cultivator with an impressive capacity, able to handle large amounts of crop residues while keeping the draught requirement moderate.

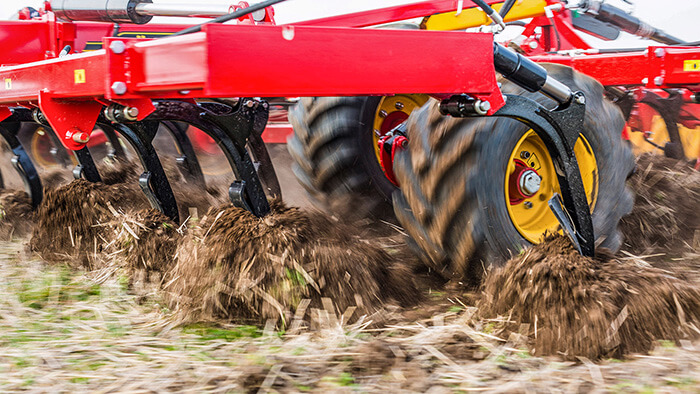

Opus is equipped with robust tines, which mix and loosen the soil down to 30cm working depth. With DeepLoosening points the loosening depth increases to 40cm. The tines have a hydraulic stone release, which can be adjusted variably up to 700kg release force.
Thanks to this high release force and its soil-seeking points, Opus is able to maintain a constant working depth in all field conditions.
The frame is designed for heavy usage in tough conditions. It has three axles and 27cm tine spacing, which ensures an intense cultivation and good throughflow.

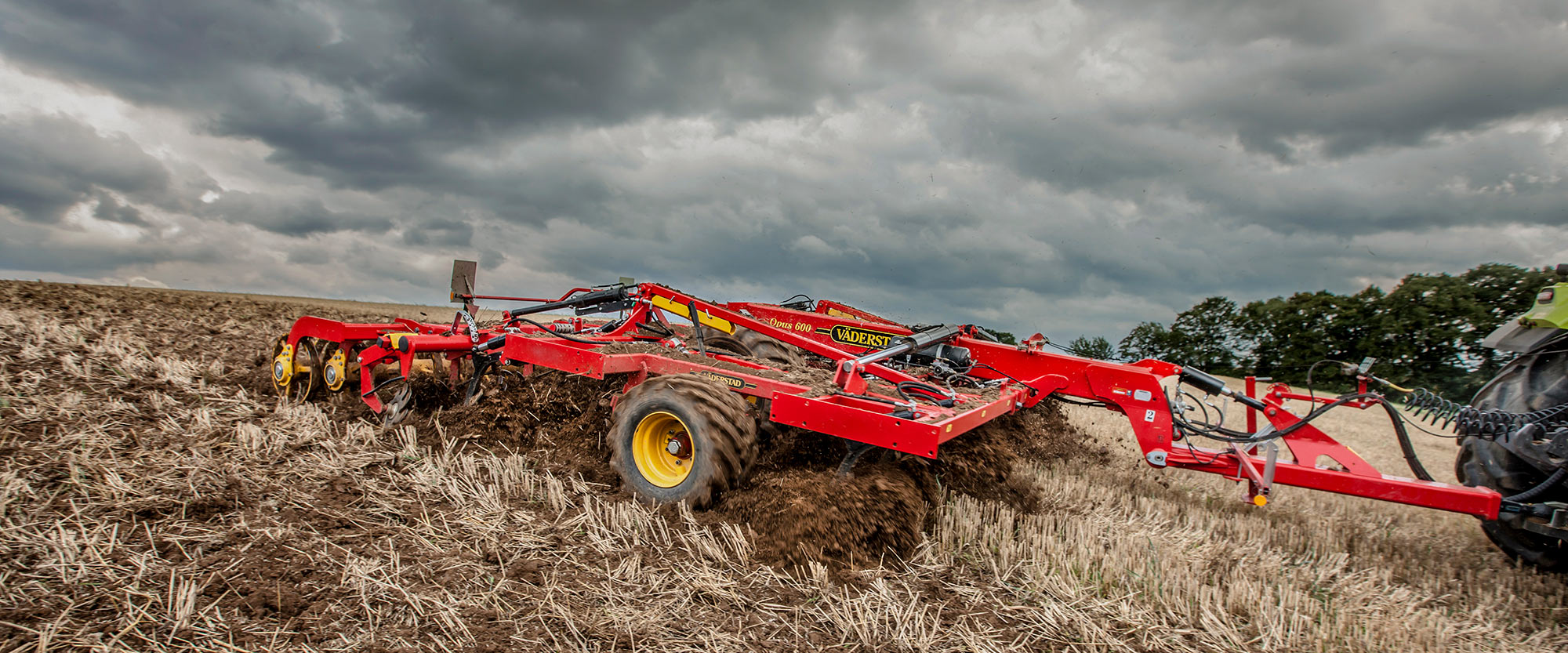

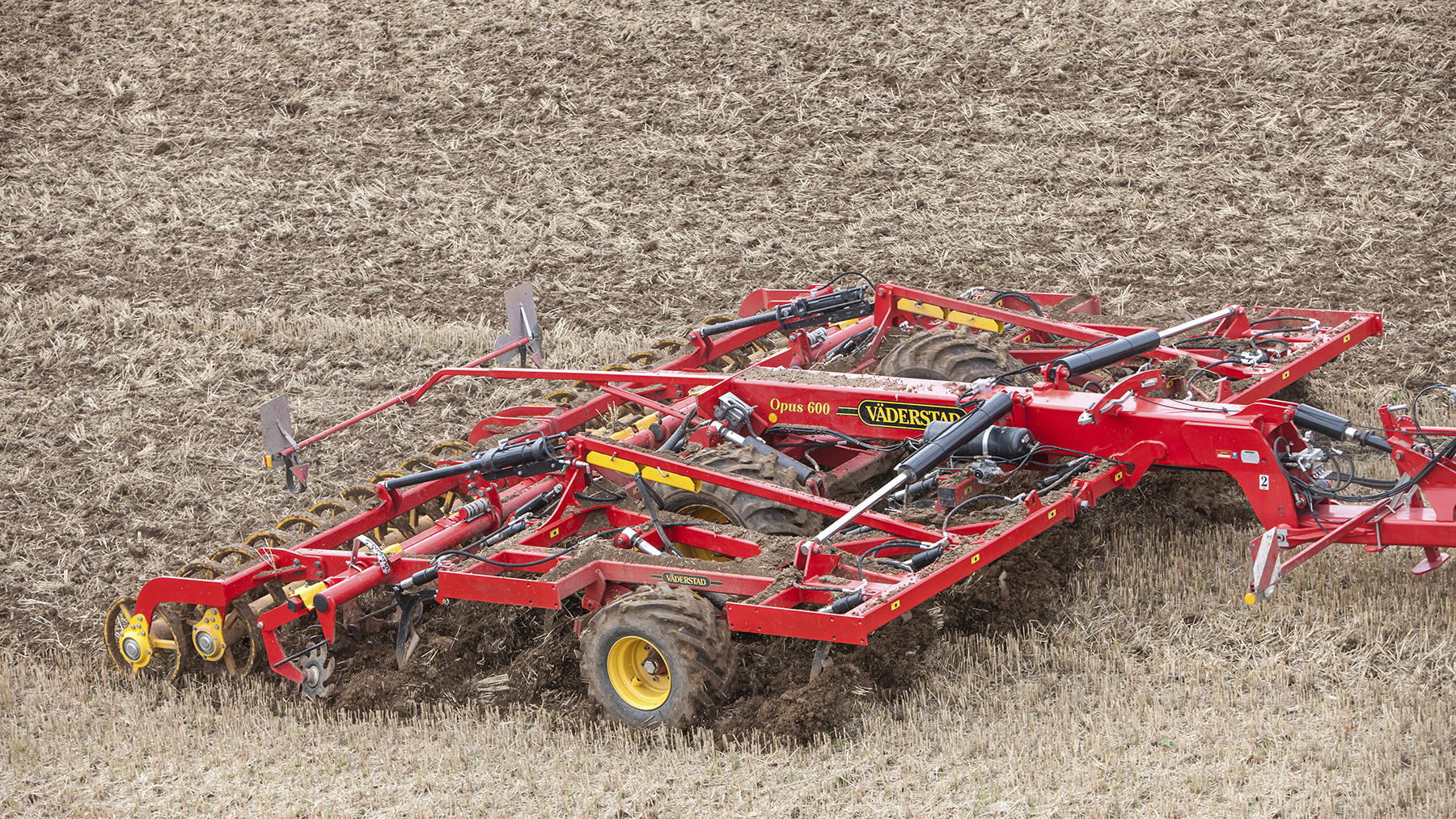

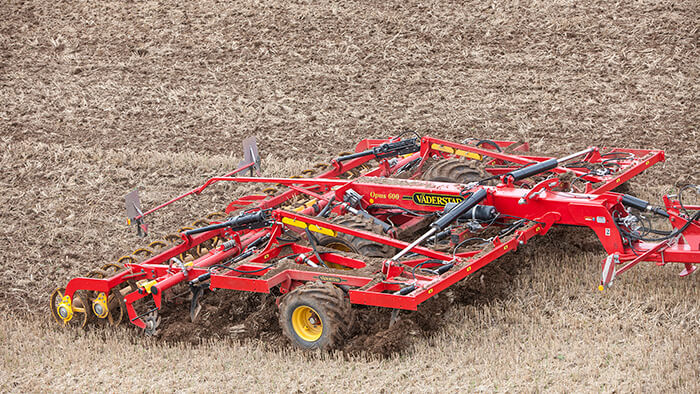

The heavy tine cultivator Opus is built around a strong frame which can withstand high stresses extending the working life.
Erilaisia muokkausmenetelmiä palvellakseen Väderstad tarjoaa laajan valikoiman kärkiä kultivaattoreihin ja äkeisiin. oikealla kärkivalinnalla voit optimoida työtuloksen pelloillasi ja tarjota tulevalle viljelykasville parhaat mahdolliset edellytykset täydelliseen taimettumiseen.
This content is hosted by a third party (www.youtube.com). Your current cookie settings have disabled the video. You can customize them in order to show the video. Click here to change your consent.
All Väderstad tine cultivators are equipped with the unique MixIn shin as standard.
The material thereby passes the tine twice, doubling the mixing intensity both in depth and lengthwise. The benefit of a better depth mixing is that the working depth can be reduced without compromising the result. A good lengthwise distribution gives a more even crop emergence. In heavy soil the throwing angle effectively breaks the soil flow and leaves it nicely crumbled.
The MixIn shins provide superior mixing and crumbling, without increasing fuel costs.
Equipping Opus with a fertiliser kit allows for fertiliser application together with the tillage operation. The kit includes a distributor head that distributes the fertiliser, metered out from the front hopper Väderstad FH 2200. From the distributor head, the fertiliser is distributed to each cultivator tine. The fertiliser is placed behind each tine at selected depth, thereby providing benefits for the coming crop.

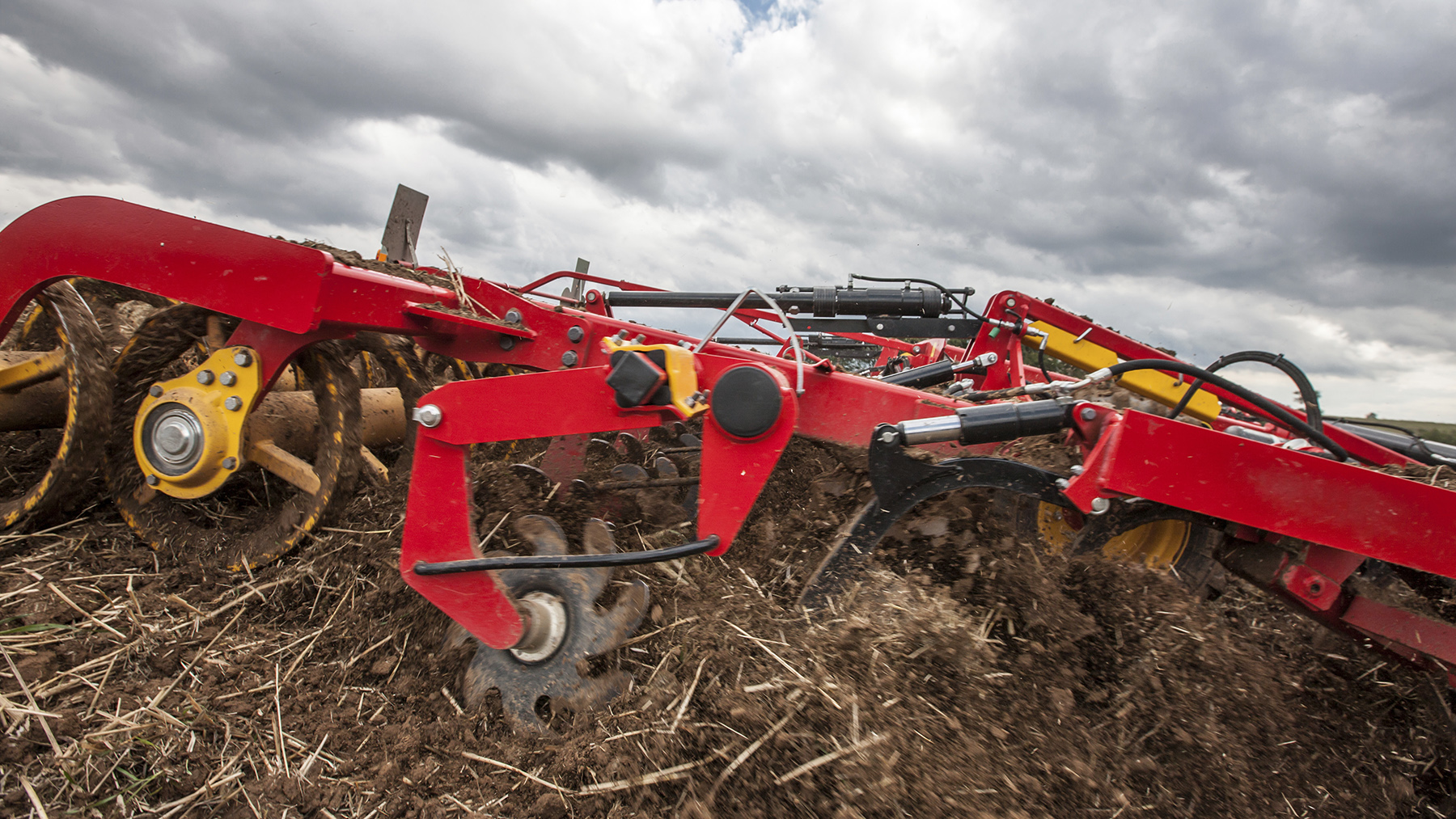

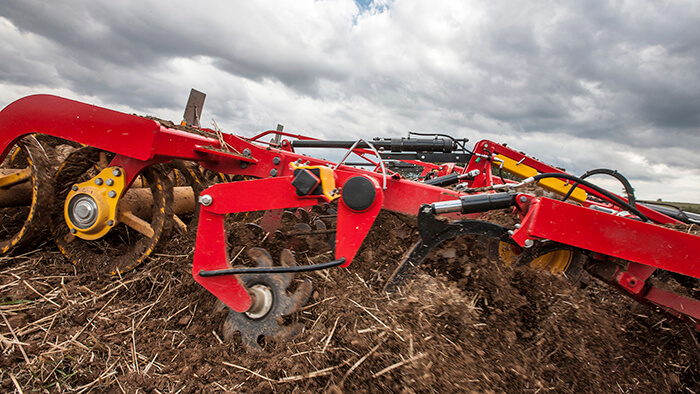

The levellers are fitted on a parallelogram, ensuring that the correct working angle is maintained at any depth.
To be able to adapt to varying soil conditions, the driver is able to adjust the intensity of the hydraulic levellers with millimetre precision on the move.

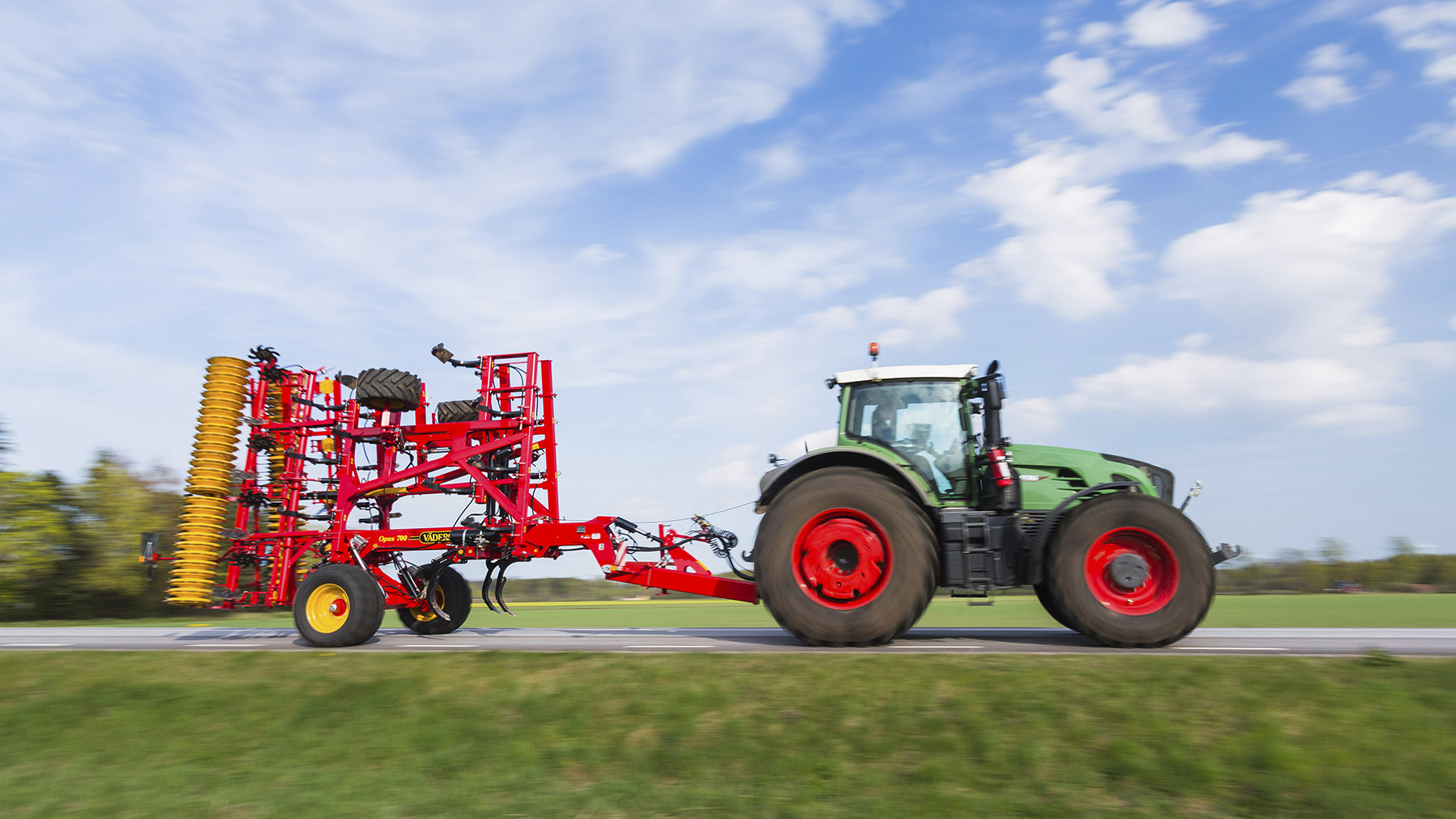

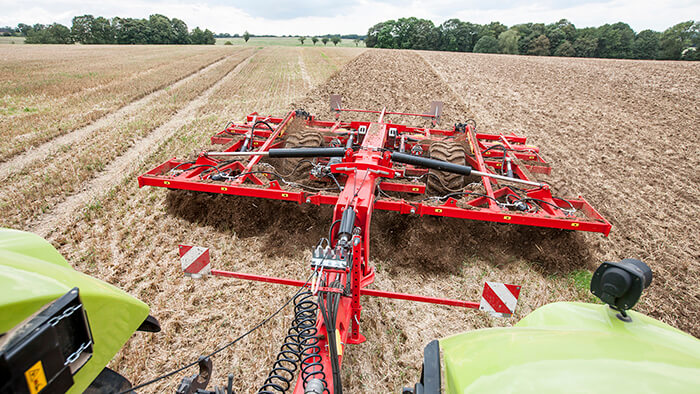

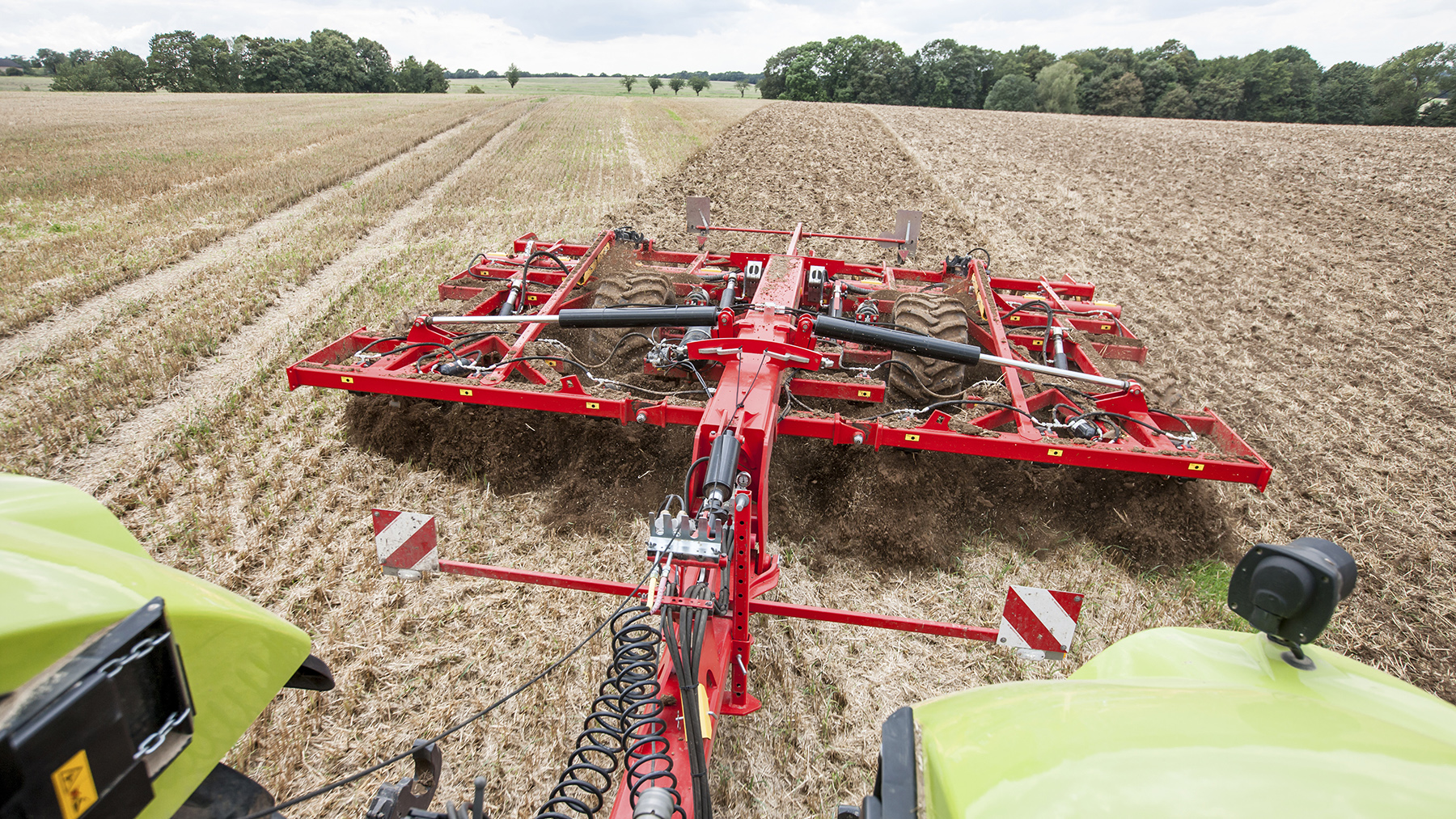

The carrying wheels are positioned in the middle of the machine, which makes Opus both easy to transport and gives it a small turning radius on headlands.

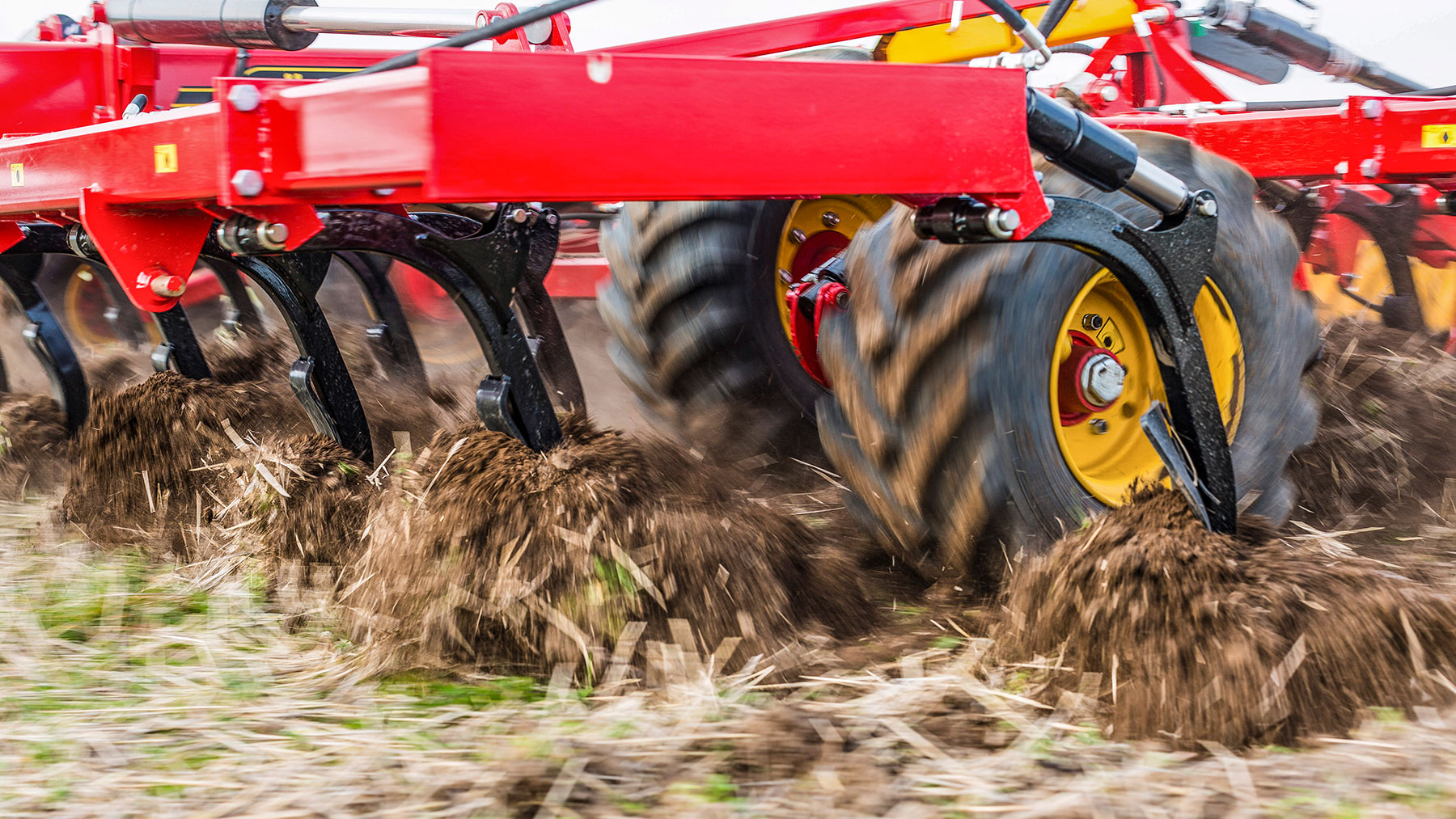

Behind each wheel there is a tine to leave a perfect surface without tracks.

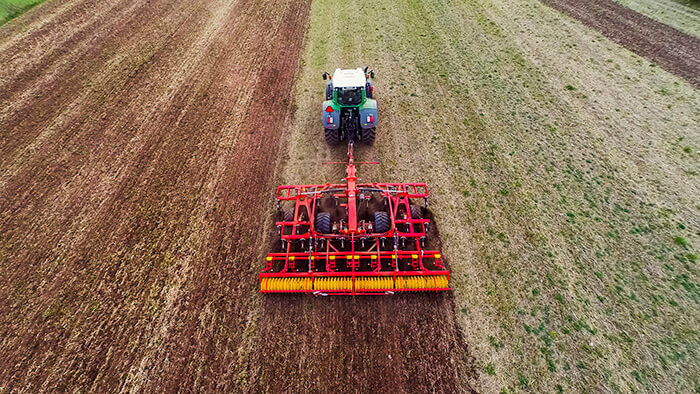

Support wheels on the wing sections ensure that the cultivator works to a constant depth across the entire working width.
Equipped with the mountable small-seeder BioDrill 360, Opus becomes a seed drill allowing fast establishment of small-seeded crops, such as oilseed rape, cover crops or catch crops.
This saves time and helps maintain ground moisture.
This content is hosted by a third party (www.youtube.com). Your current cookie settings have disabled the video. You can customize them in order to show the video. Click here to change your consent.
With 27cm tine spacing and a powerful hydraulical stone release up to 700kg, Opus provides an intensive mixing and loosening down to 30cm working depth.
Valikoima kärkiä
Kärkivaihtoehdot - Laaja valikoima erilaisia kärkiä mahdollistaa työtuloksen soveltamisen erilaisiin tarpeisiin ja olosuhteisiin sopivaksi. Piikki on suunniteltu moduulijärjestelmäksi, minkä ansiosta kärkien vaihtaminen käy nopeasti ja helposti.
MixIn -jatkeet
MixIn -jatkeet heittävät maata edellään, eivätkä ylöspäin, jonka ansiosta maa sekoittuu ja murustuu. Piikki on suunniteltu moduulijärjestelmäksi, minkä ansiosta jatkeiden vaihtaminen on helppoa. Saatavana on seuraavanlaisia jatkeita:
•Jatke 50 mm
•Jatke 50/80 mm
•Jatke 80 mm
•Jatke 80/120 mm
•Jatke 120 mm
Nostettu piikki
Piikkivälin kasvattamiseksi on koneesta mahdollista nostaa piikkejä yläasentoon. Tällä toiminnolla myös työleveyden kaventaminen on mahdollista, jotta maata voi muokata syvemmältä samalla vetoteholla.

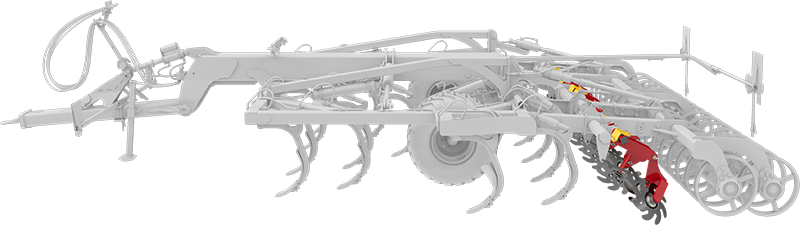

Hydraulically adjustable rotating levelling discs leaves a smooth surface.The sealed bearings mean that the discs are maintenance-free.

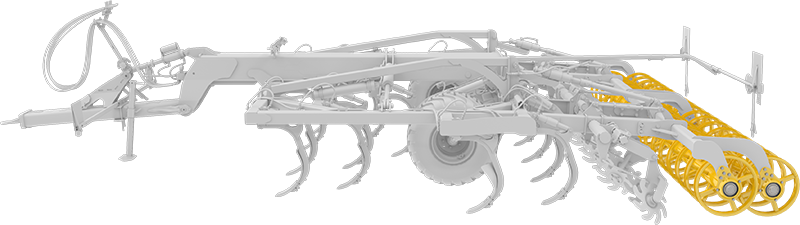

The hydraullically adjustable packer reconsolidates the soil profile, at full working depth of the machine.
Single SteelRunner
Single SteelRunner has an aggressive profile that crushes clods and ensures even consolidation throughout the working depth. Rubber suspension gives the packer a long working life.
Double SteelRunner
Double SteelRunner is a very aggressive steel packer which works well in all soil types, including wet conditions. The packers design creates a profile that allows the soil to dry faster, thereby allowing you to carry out the next field operation quicker.
Double SoilRunner
Double SoilRunner is a u-profile packer that fills upp with soil. Due to this there is a soil to soil contact, leaving "open" surface. Double SoilRunner is suitable for light to medium-heavy soils.
| Opus | 400 | 500 | 600 | 700 |
| Tehokas työleveys (m) | 3,75 | 4,75 | 5,75 | 6,75 |
| Jyrän leveys (m) | 4,0 | 5,0 | 6,0 | 7,0 |
| Kuljetusleveys (m) | 3,0 | 3,0 | 3,0 | 3,0 |
| Kuljetuskorkeus (m) | 2,68 | 3,12 | 3,6 | 4,0 |
| Paino min/max (kg) | 4990/5490 | 5450/6070 | 7240/8180 | 8260/8800 |
| Paino SteelRunner (kg) | 5600 | 6200 | 8400 | 9000 |
| Paino kaksinkertainen SoilRunner (kg) | 5200 | 5600 | 7900 | 8500 |
| Paino kaksinkertainen SteelRunner | 6000 | 6300 | 8600 | 9200 |
| Piikkien lkm | 14 | 18 | 22 | 26 |
| Piikkiväli (cm) | 27 | 27 | 27 | 27 |
| Jarrut | H/P | H/P | H/P | H/P |
| Suositeltu ajonopeus (km/h) | 8-12 | 8-12 | 8-12 | 8-12 |
| Rengaskoko (tukipyörä) | N/A | N/A | 400/55-15,5 | 400/55-15,5 |
| Rengaskoko (kuljetuspyörä) | 520/50-17 | 520/50-17 | 550/45-22,5 | 550/45-22,5 |
| Hydrauliikan tarve (DV) | 3 | 3 | 3 | 3 |
| Vetotehontarve alk (hk) | 170 | 210 | 270 | 320 |
|
Väderstad on yrittänyt kaikin tavoin kuvailla tuotteita oikein. Mutta johtuen jatkuvasta halustamme kehittää tuotteitamme sekä menetelmiämme, parhaiden mahdollisten tuotteiden tarjoamiseksi asiakkaillemme, ovat tietyt tiedot voineet muuttua. Jokaisen tuotteen tarkat yksityiskohdat tullaan varmistamaan tilausajankohtana. |
| LS = Load sensing | FR = Vapaa paluu | DV = Kaksitoiminen | ||
| H = Hydraulinen | P = Pneumaattinen | N/A = Ei saatavana |
