Väderstad International

Tempo T

Designed for speed and precision

With Tempo, crop establishment can be carried out at high speed without compromising exceptional precision and accuracy. The result is a unique combination of uniform crop establishment and high capacity.

Behind the qualities of Tempo lie many years of development work by our engineers. This work was followed by thorough field testing in many countries, which was carried out in close collaboration with agricultural advisors and farmers.

Tempo T is a planter with telescopic wing retraction, carried on the three-point linkage. The machine is available in six-row and seven-row configurations with different row spacings between 50 and 80 cm. Depending on configuration, the machine has a transport width of between 3.36 and 3.5 metres.



Product film for Tempo F and Tempo T






A new standard for precision at high speed

Väderstad Tempo sets a new standard for planting at a high speed. With Tempo, planting can be done at high speed and precision and accuracy remains exceptional. The result is an unique combination of even crop establishment and superior capacity.
When developing the seed meter for Tempo the aim was to plant 28 seeds/second. The result, the Gilstring Seed Meter, achieving impressive results even at the highest speeds. One of the key features is the pressurised seed transport, the so called PowerShoot.



Animation visualising the Tempo seed meter






Film how to calibrate Tempo






Väderstad E-Services



With Väderstad E-Services, Tempo is ready for the future

The introduction of Wi-Fi (Wireless Fidelity) and iPad Air into the Väderstad programme brings a range of advantages. From now on, our machines and equipment can be controlled with the help of wireless communication. User-friendliness, cost-effectiveness and ease of update are just some of the major advantages of the iPad Air solution compared with conventional systems. Väderstad’s control solutions are combined under the collective name of Väderstad E-Services.

Read more about Väderstad E-Services here



controlstation_210px   Econtrol_210px   Isobus_210px
ControlStation   E-Control   ISOBUS






Row shut off



Individual shut-off of row units

The electric drive of all seed meters makes it possible to shut off the row units one at a time, thereby saving seed and inputs in irregular fields. When seed metering is shut off, it is possible to shut off fertiliser metering and metering of microgranules if the machine has these functions. It is also possible to completely shut off fertiliser and microgranule metering and just continue to meter out seed. In fields with varying soil texture and humus content, it is also easy to adjust the fertiliser dose and seed rate from the cab on the go.






Robust row unit

The Tempo row unit is designed for planting at high speed with minimal requirement of service. All joints in the row unit are maintenance free. The heavy duty parallel linkage is designed to be able to transfer weight to the row unit.








In order to minimize vibrations from high speed the row unit is equipped with trailed gauge wheels

The gauge wheels on Tempo are trailed (1) instead of pushed (2), which is the usual solution on precision seed drills. The great advantage with trailed carrying wheels is that the machine is easier to draw and that the vibrations in the row units decrease.




1   2






Three types of closing wheel

There are three different types of closing wheel to choose from. In addition to the standard model there is a wider version that is recommended for very shallow drilling of small-seeded crops. It can be difficult to close the seed furrow on clays with a high clay content, so for that we recommend the spiked closing wheel.




Standard wheels   Wide wheels   Spiked wheels






Seed discs Tempo  including knockout wheel



Tested for many crops

Seed plates are available in different versions for maize and sunflower. The seed plate to be used depends on the thousand grain weight. In addition, Tempo can be used for drilling soybean, millet, sorghum, sugar beet and rape. A seed plate for maize with 32 holes and a diameter of 5.5 mm is standard and other seed plates are available as options.



Crops Tempo

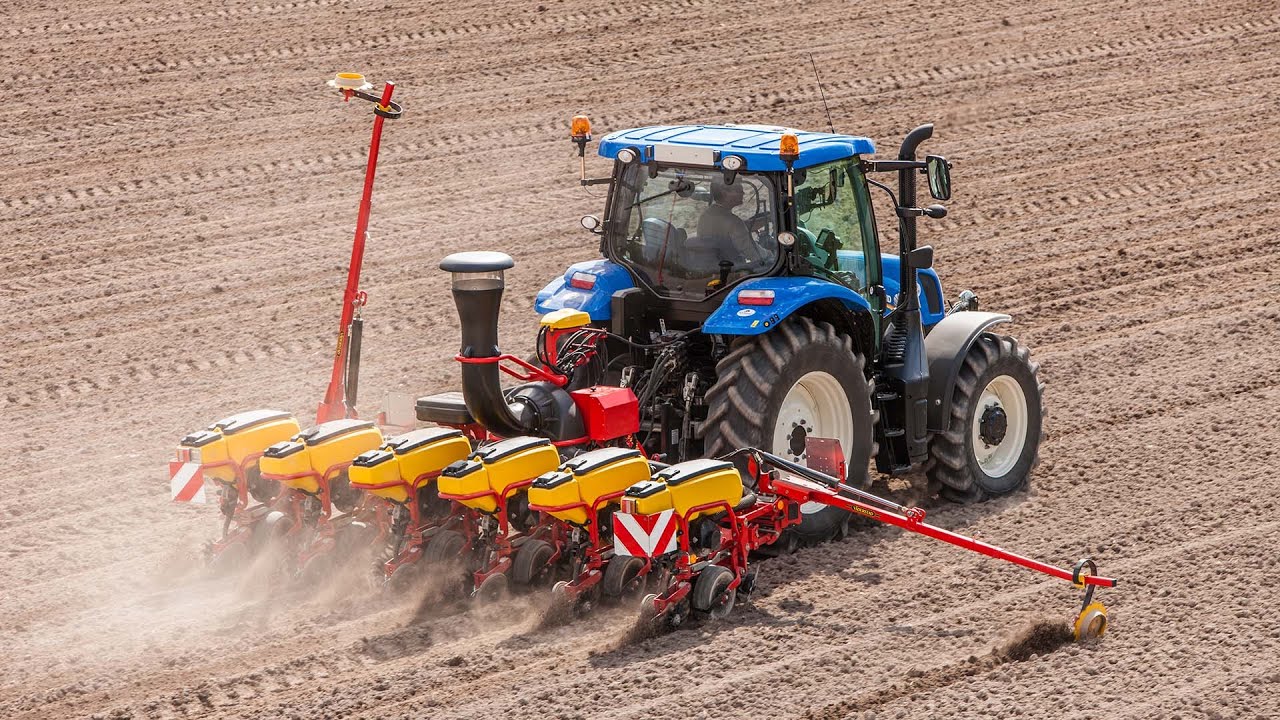

Tempo T 6 in field



Combidrilling for more reliable results

Combidrilling gives a reliable fertiliser effect and often gives higher yield. By supplying a suitable proportion of the fertiliser at the time of drilling, the number of passes in the field is also reduced. Combidrilling is more important when growing row crops than when growing grain crops, since the fertiliser can be placed at an appropriate distance from the seed. With a precision seed drill, it is also important that the fertiliser coulters do not disturb the surface so much that the carrying wheels on the row units are affected, which would alter the drilling depth, or that the seedbed is affected, which would impair the germination conditions.

Image slide show

Icon image gallery



Tempo T movies

Product family Tempo T & Tempo F

Settings of Tempo (English)

Calibration of Tempo (English)

Tempo seed meter

Tempo seed meter versus the competition

Animation cylinder - Tempo T

Tempo Gilstring Seed Meter

Tempo is not only quick; the perfect seed placement is what really makes it stand out from the crowd. Tempo is more accurate and the seed meter assures perfect placement for every seed. This precision is of greatest importance to maximise the yield.

The seed meter, called the Gilstring Seed Meter, and the seed tube is pressurised. This means that the seed is "shoot" through the short seed tube and is therefore insensitive for both slopes and vibrations. We call this technology PowerShoot.





Animation visualising the Tempo seed meter

Standard

Maintenance free linkage
WS 9 Electronics
Press wheel Press wheel
Closing wheel Closing wheel (25 mm)
Seed discs Seed discs
Simple service
Tempo T Telescope Hydraulic telescope
Hydraulic fan Hydraulic driven fan and alternator

Options

Row cleaner Row cleaners
Micro granulate box Micro granulate
High air inlet Elevated air inlet
Wide closing wheels (50 mm)
Spiked closing wheel
Tempo T with combi Fertiliser 2 x 300 litres
Fertiliser coulter Tine fertiliser coulters for 2 x 300 litres
Tempo T fertiliser 1200 litres Fertiliser 1200 litres
Fertiliser coulter Fertiliser coulters
Agitating shaft
Tempo T product image Marker arms
Econtrol_210px Väderstad E-Services
